| Place of Origin: | China |
|---|---|
| Brand Name: | Merrytek |
| Certification: | CE |
| Model Number: | MLC18C-P6 |
| Minimum Order Quantity: | Stop production, not available. |
| Price: | Negotiation |
| Packaging Details: | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time: | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms: | T/T or Western Union or PayPal |
| Supply Ability: | 10,000pcs per month |
| Product Name: | MLC18C-P6 | Output Current: | 300mA |
|---|---|---|---|
| Output Voltage: | 60Vdc Max. | Isolation Class: | Class II |
| Output Load: | 18W Max. | Stand-by Power: | ≤0.5W |
| Operating Type: | Dimming Control, Daylight Priority | ||
| High Light: | low voltage led driver,LED Panel Light Driver |
||

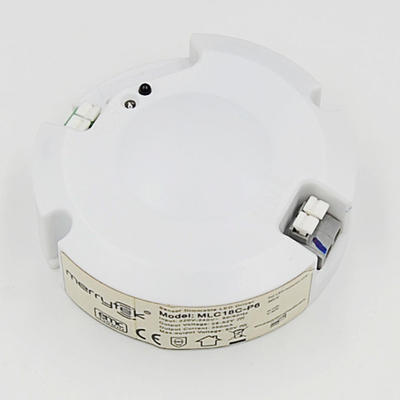

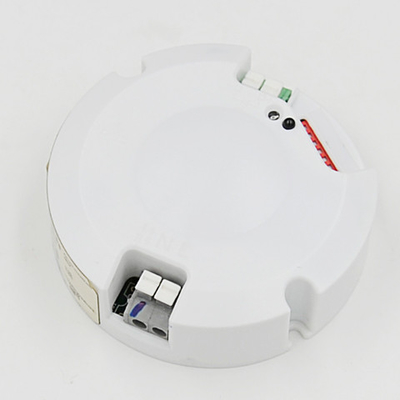

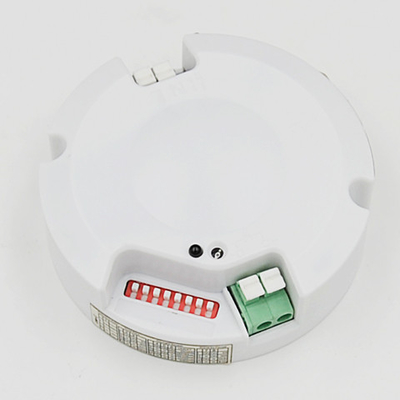

Daylight priority 18W Sensor Dim LED Driver 350mA output MLC18C-P6 constant current
Parameters:
| Input | Operating Voltage | 198-264V AC 50Hz/60HZ |
| Input Voltage | 220-240V AC 50Hz/60HZ | |
| Input Current | 130mA Max. | |
| Power Factor | 0.9-0.95(100% load) | |
| Efficiency | ≥83% Max.@230V | |
| Stand-by Power | ≤0.5W | |
| Wiring Method | Grey terminal | |
| Output | Operating type | Dimming control, daylight priority |
| Load type | LED | |
| Ripple requirement (Flickering or Flickering Free) | Flickering(But eyes cannot see the shake) | |
| No-load output voltage | 60V DC Max | |
| Load output voltage range | 28-52V DC | |
| Full load output power | 18W Max. | |
| Load output current | 350mA | |
| Constant current/voltage Precision | Constant Current Precision ±5% | |
| Wiring Method | Green terminal | |
| Exception Protection Requirements | Output over voltage Protection | Yes |
| Output over load protection | Yes | |
| Output short circuit protection | Yes | |
| Sensor Parameter | HF Operating Frequency | 5.8 GHz ±75 MHz,ISM wave band |
| HF Radiated power | 0.5mW Max. | |
| Hold Time | 5S/90S/3min/10min (can be set by 2 DIP) | |
| Dimming Ratio | 10% -20% | |
| Stand-by Period | 0S/30S/10min/+∞ (can be set by 2 DIP) | |
| Detection Area | 50%/100% (can be set by 1 DIP) | |
| Daylight Sensor | 5lux / 15lux /50lux / 100lux / Disable (can be set by 3 DIP) | |
| Daylight priority | 5lux/50lux；15lux/100lux；50lux/150lux；100lux/200lux | |
| HF Detection Area | Radius 3-6m (Mounting height 3m) | |
| Mounting Height: | Suggested mounting Height:3-4m , 6m Max. | |
| Detection Angle | 150°(Wall Mounting), 360°(Ceiling Mounting) | |
|
Operating Environment |
Operating temperature/ humidity | -25℃~50℃ Humidity : 85% (Non-condensing) |
| Storage temperature/ humidity | -35℃~80℃ Humidity : 85% (Non-condensing) | |
| Outer case max. temp(Tc) | 80℃ | |
|
Safety & EMC
|
Isolation pressurization | (L N)input-output,3000VAC/5mA/1min |
| Safety requirement | EN61347-1 | |
| EMC | EN55015 | |
| Certification | CE | |
| Others | IP rating | IP20 |
| Protection level | Class II | |
| Installation size | Φ78mm | |
| Packaging requirement | Bubble bag + clapboard + outer case(K=A | |
| Life | 30000h @ Ta 100% load |
Dimension:
Wring Diagram:
Function:
Function Diagram:
Sensor Setting:
| 1 | |
| 100% | ON |
| 50% | -- |
| 2 | 3 | |
| 5s | ON | ON |
| 90s | - | ON |
| 3min | ON | - |
| 10min | - | - |
| 4 | 5 | 6 | |
| Disable | ON | ON | ON |
| 100 Lux/200Lux | ON | - | - |
| 50Lux/150Lux | - | ON | - |
| 15 Lux/100Lux | - | - | ON |
| 5 Lux/50Lux | - | - | - |
(When the hold time sets to +∞, this will work as daylight priority mode; when the hold time sets to anytime (except the +∞), 5Lux, 15Lux, 50Lux, 100Lux and disable will be the daylight sensor setting)
| 7 | 8 | |
| 0S | ON | ON |
| 30S | - | ON |
| 10min | ON | - |
| +∞ | - | - |
