Clustered Control RF Wireless Motion Sensor High Anti - Interference 3 Step Dimming

Basic Information
Place of Origin: China
Brand Name: Merrytek
Certification: CE , R&TTE
Model Number: MC003V/CP+MW01
Minimum Order Quantity: Stop production, not available.
Price: Negotiation
Packaging Details: Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time: 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms: T/T or western Union
Supply Ability: 20,000pcs per month
Detail Information
Dimming Mode: 3 Step Dimming Product Name: MC003V/CP+ MW01
IP Rating: IP20 Rated Load: 800w(Inductive) 1200w(Resistive)
Operating Voltage: 220~240Vac,50/60HZ(MC003V/CP) 12VDC(MW01) Detection: Max(D×H):16m×10m(MC003V/CP)
HF System: 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H): 92x52x 25.5mm( MC003V/CP)
Approval: CE & R&TTE Operation Temperature: -35℃~70℃(MC003V/CP) -20℃~70℃(MW01)
High Light:

dimming motion sensor

,

outdoor motion sensor

,

Clustered Control RF Wireless Motion Sensor


Product Description

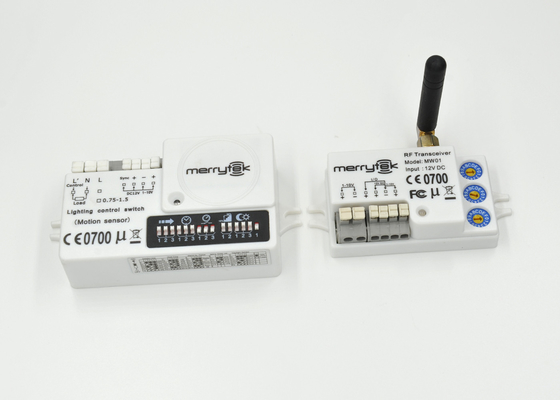

Clustered Control RF Wireless Motion Sensor MC003V/CP + MW01 CE





Description:

1. Used in wireless networking of luminaries, easy installation and free of wire.

2. With fixed code, very easy to step up any-to-any communication.

3. By digital receiving and transmitting method, high anti-interference capability and no interference to an RF

sensitive device, for example, electronic keys of cars.

4. With advanced code detection technology, no code missing.

5. Merrytek takes the lead in using the rotary coding switch in RF transceiver, very easy to create

 groups.

6. MC003V/CP is an active motion detector with HF system 5.8GHz. Motion can be detected through

plastic, glass and thin non-metal materials.

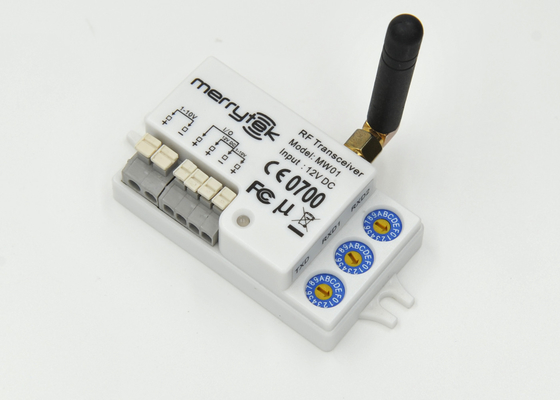

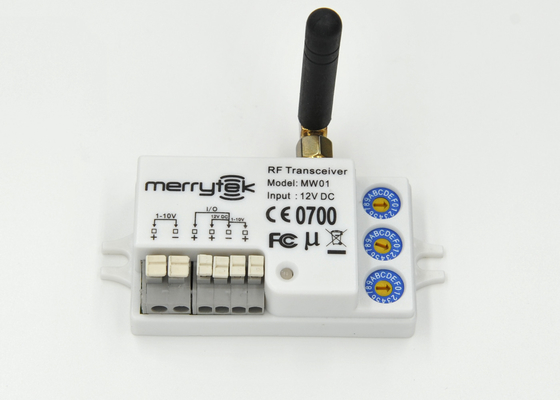

7. MW01 is an innovative and unique wireless transceiver with frequency range 433MHz. Due to use

full digital receiving& transmitting and fixed address code for creation of groups, it has high reliability and

stability.

8. The RF module integrates advanced code check technology, significantly improved transmission

reliability. Make sure exact signal transmitting and receiving, no code missing.

9. Merrytek takes the lead in adopting the rotary coding switch to set up groups, very simple to

achieve any-to-any communication.





Applications:

Stairwell, corridor, balcony, pathway, warehouse,etc



Function :

Clustered Control RF Wireless Motion Sensor High Anti - Interference 3 Step Dimming 0

Clustered Control RF Wireless Motion Sensor High Anti - Interference 3 Step Dimming 1

Clustered Control RF Wireless Motion Sensor High Anti - Interference 3 Step Dimming 2

Specifications:

Clustered Control RF Wireless Motion Sensor High Anti - Interference 3 Step Dimming 3



MC003V/CP:

Operating voltage

220-240Vac, 50/60Hz

Rated load

800W (inductive), 1200W(resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 10m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

10%/25%/50%/75%/100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Stand-by dimming level

10%/20%/30%/50%

Stand-by period

5s/5min/10min/30min/1h/Disable

Life time

50,000 hours

Guaranty

5 years





MW01:

Operating voltage

12VDC

Transmitting power

≤20mW

Frequency range

433MHz

Standby-power

<0.3W

Operating principle

Radio transmission

Transmission distance

Max:100m in the free field

Max:30m inside buildings

Operating temperature

-20℃~70℃

IP rating

IP20



Wiring:

Clustered Control RF Wireless Motion Sensor High Anti - Interference 3 Step Dimming 4
