Product Details
Product Name MC003V/CP+ MW01 Operating Voltage 220~240Vac,50/60HZ(MC003V/CP) 12VDC(MW01)
Detection Max(D×H):16m×10m(MC003V/CP) Rated Load 800w(Inductive) 1200w(Resistive)
HF System 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H) 92x52x 25.5mm( MC003V/CP)
Approval CE & R&TTE Operation Temperature -35℃~70℃(MC003V/CP) -20℃~70℃(MW01)
Dimming Mode 3 Step Dimming IP Rating IP20
High Light

wireless motion detector

,

outdoor motion sensor

,

Wireless Motion Sensor 1200W
Leave a Message
Product Description

Ceiling Mount Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band





Description

Are you looking for a wireless lighting control system?

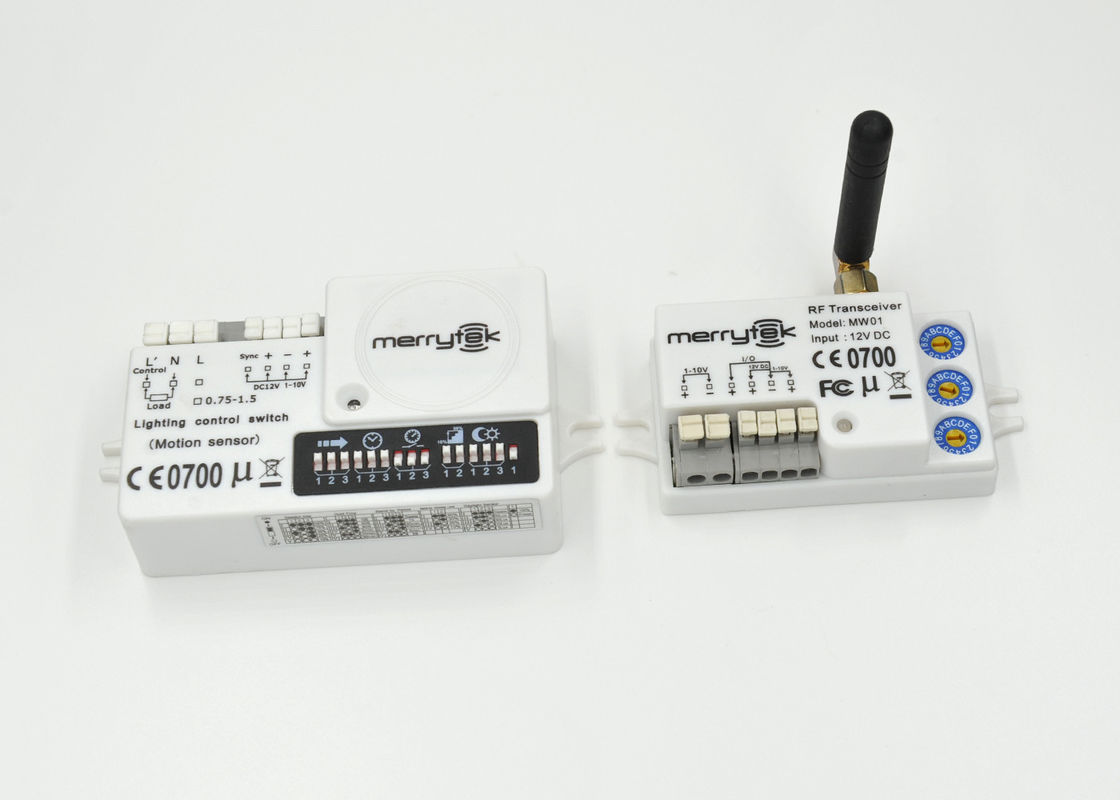

Merrytek supplies you a prefect wireless control  solution consisting of HF motion detector M0003V/CP and RF
wireless transceiver MW01.High reliability, easy to install and free of wire!

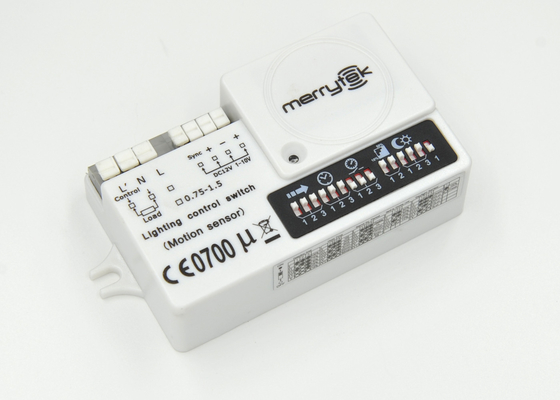

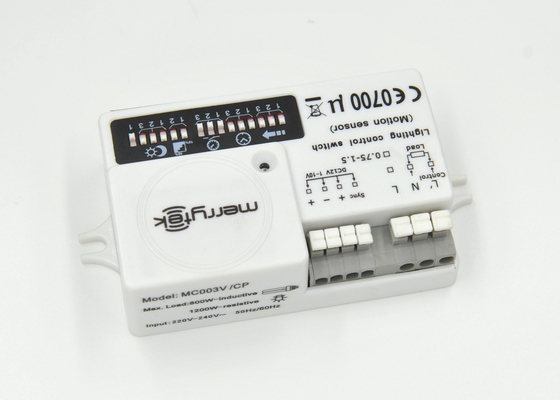

M0003V/CP is an active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin
non metal materials.

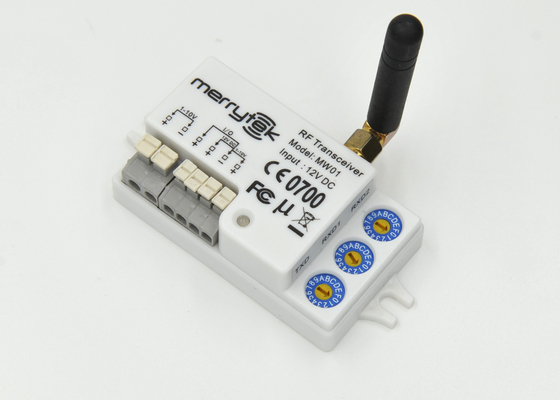

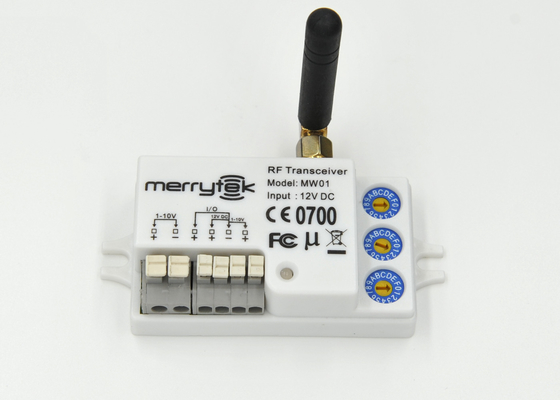

MWO1 is an innovative and unique wireless transceiver with frequency range 433Mhz. Due to use full digital receiving &
transmitting and fixed address code for creation of groups,it has high reliability and stability.

Also, the RF module integrates advanced code check technology, significantly improved transmission reliability. Make
sure exact signal transmitting and receiving, no code missing.

In addition. Merrytek takes the lead in adopting the rotary coding switch to set up groups, very simple to achieve any-to-
any ommunication.



Feature

1. Used in wireless networking of luminaries, easy installation and free of wire.

2.  With fixed code, very easy to step up any-to-any communication.

3. By digital receiving and transmitting method, high anti-interference capability and no interference to an RF sensitive device, for example, electronic keys of cars.

4. With advanced code detection technology, no code missing.

5. Merrytek takes the lead in using the rotary coding switch in RF transceiver, very easy to create groups.

6. MC003V/CP is an active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.

7. MW01 is an innovative and unique wireless transceiver with frequency range 433MHz. Due to use full digital receiving& transmitting and fixed address code for creation of groups, it has high reliability and stability.

8. The RF module integrates advanced code check technology, significantly improved transmission reliability. Make sure exact signal transmitting and receiving, no code missing.

9. Merrytek takes the lead in adopting the rotary coding switch to set up groups, very simple to achieve any-to-any communication.



Product Information

Ceiling Mounted Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band 0

Ceiling Mounted Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band 1

Function

RF Wireless Control

Motion detector MC003V/CP + RF wireless transceiver  MW01 + 1-10V dimmable LED driver (Any brand)



Any-to-any communication

Once any motion is detected, the motion signal will be transmitted to other grouped sensors through RF transceiver. See example below. When the person walks to one of floors, the lamps in adjacent floors will switch on at a preset low light level synchronously.

Ceiling Mounted Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band 2

Ceiling Mounted Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band 3

Point-to-multipoint communication



In addition, MC003V/CP and MW01 can be used in cluster-control. See below picture, there are several exits / entrances to the corridor. Any sensor (Master) in the exits / entrances is triggered, all lamps in the corridor light up.

Ceiling Mounted Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band 4



RF grouping (up to 16 different groups possible)



Thanks to digital communication method and fixed address code, the module has high anti-interference capability and no interference to any RF sensitive device, for example, electronic keys of cars.The RF transceiver can meet following communication modes

1/ Any-to-any communication

2/ Directional communication

3/ Broadcast communication

Each RF transceiver has 1 TXD and 2 RXD. TXD channel is used for transmitting RF signal and RXD channel is used for receiving the RF signal. Only need to set the same address code in TXD and RXD, the RF modules can automatically set up group. Address code can be easily set via rotary coding switch. See below examples.

Ceiling Mounted Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band 5



Ceiling Mounted Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band 6



Specifications:



MC003V/CP:



Operating voltage

220-240Vac, 50/60Hz

Rated load

800W (inductive), 1200W(resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 10m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

10%/25%/50%/75%/100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Stand-by dimming level

10%/20%/30%/50%

Stand-by period

5s/5min/10min/30min/1h/Disable

Life time

50,000 hours

Guaranty

5 years





MW01:



Operating voltage

12VDC

Transmitting power

≤20mW

Frequency range

433MHz

Standby-power

<0.3W

Operating principle

Radio transmission

Transmission distance

Max:100m in the free field

Max:30m inside buildings

Operating temperature

-20℃~70℃

IP rating

IP20



Setting

Ceiling Mounted Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band 7

Detection Pattern

Ceiling Mounted Wireless Motion Sensor MC003V/ CP + MW01 1200W with ISM Wave Band 8





Applications:



Stairwell, Corridor, Balcony, Pathway, Warehouse, etc
