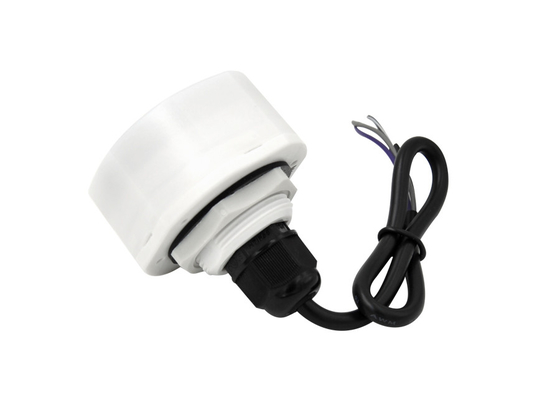

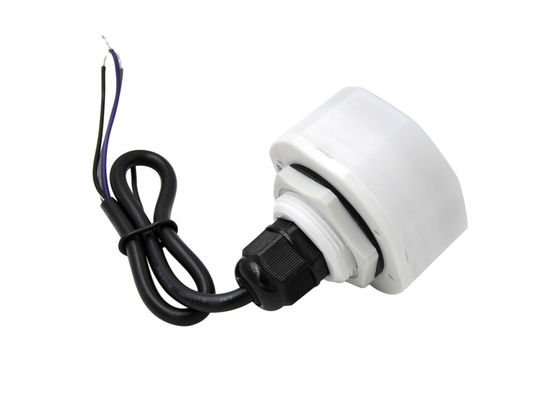

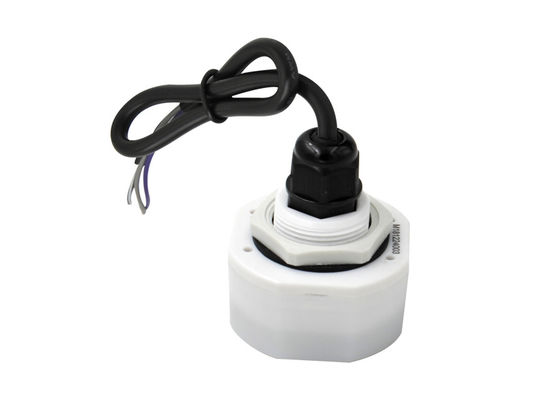

55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection

  • 55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection
  • 55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection
  • 55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MC079D RC
Minimum Order Quantity 300pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting Height 15m Max DC Input Voltage 12/24V DC ±1V
Rated Voltage 12/24V Stand-by Power <0.3W
Working Mode 0-10V DC Operating Temperature -35℃~70℃
Certificate CE IP Rating IP65
Dimension ¢55*41mm Lifetime 50,000h @ Ta Full Load
High Light

dc motion detector

,

dimmable motion sensor

,

DC Motion Sensor IP65
Leave a Message
Product Description

MC079D RC, DC Operation Sensor, 12/24V DC input, High Bay Sensor for Warehouse





1. Features



  • 12/24V DC input,for DC systems or LED power supplies with 12/24V DC auxiliary power output
  • 0-10V dimming port, 3 or 2 step dimming function
  • Newly patent design sensor antenna with two detection mode: high sensitivity detection and interference immunity detection. (suitable for installation environments with many metal reflective surfaces)
  • Compact design,special for industrial and mining lamps, sensors an be fixed at the edg or center of UFO.
  • 15m maximum installation height, suitable for most warehouses
  • With the patented remote control, you can adjust the launch angle of the remote control according to the installation height to avoid misuse
  • Override function

55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection 0



2. Parameter



Input Operating Voltage Rage N/A
DC Input Voltage 12/24V DC ±1V
Rated Voltage 12/24V
No-load Power N/A
Stand-by Power <0.3W
Surge Test N/A
Wiring Leaded wire diameter: 22AWG
Output Working Mode 0-10V DC
Type of Load N/A
Load Capacity N/A
Current of Load N/A
Max. Surge Capacity NA
Surge tet NA
Wiring Leaded wire diameter: 22AWG
Dim Interface 1-10V Dimming < 50mA (Non-constant source)
Synchronous Control N/A
High Low-level N/A
PWM Control N/A
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
Transmitting power 1mW Max.
Hold time 5S/30S/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
Stand-by Period 0s/10S/1min/3min/5min/10min/30min/+∞
Detection Area 25%/50%/75%/100%
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable
Detecting Radius See detection pattern
Mounting Height 15m Max
Detecting Angle 150°(wall mounting) 360°(ceiling mounting)
Wireless Module Operating Frequency N/A
Transmitting power N/A
Transmitting distance N/A
Modulation mode N/A
Number of coding N/A

Operating

Environment

 Operating Temperature -35℃…+70℃
Storage Temperature Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing)
Certificate Standards Safety standards EN60669-2-1, EN60669-1
EMC standards EN55015, EN61000-3-2, EN61000-3-3, EN61547
Environmental Requirement Compliant to RoHS
Certificate CE
Others Wiring UL21996,3*22AWG, exposed line length: 300mm
IP Rating IP65
Protection Class Class II
Installation External mounting
Dimension ¢55*41mm
Package Instruction+ White box+ White box tags+ Clapboard+ Carton(K=A)
Net Weight 65g
Lifetime 50,000h @ Ta Full load

Note

1. “N/A”means not available.

2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.




3. Function

1) On/OFF Function (stand-by period be set to “0”s)

55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection 1



2) 2-step dimming function (stand-by period be set to “+∞”)

55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection 2

3) 3-step dimming function (stand-by period be set to “10s/1min/3min/5min/10min/30min”)

55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection 3



4. Dimension (mm)



55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection 455*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection 5





5. Wiring





55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection 6

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.





6. Remote Control

Toggle button can set the remote control distance of  5m /10m /15m.





55*41mm Dimension DC Motion Sensor MC079D RC High Sensitivity Detection 7
