Product Details
Mounting Height 15m Max DC Input Voltage 12/24V DC ±1V
Rated Voltage 12/24V Stand-by Power <0.3W
Working Mode 0-10V DC Operating Temperature -35℃~70℃
Certificate CE Lifetime 50,000h @ Ta Full Load
Detecting Angle 150°(wall Mounting) 360°(ceiling Mounting)
High Light

microwave movement sensor

,

dimmable motion sensor

,

Daylight DC Motion Sensor
Leave a Message
Product Description

MC079D RC 2, Daylight Priority Function, DC Operation Sensor, 12/24V DC Input, High Bay Sensor for Warehouse





1. Features



  • 12/24V DC input,for DC systems or LED power supplies with 12/24V DC auxiliary power output
  • 0-10V dimming port, 3 or 2 step dimming function
  • Newly patent design sensor antenna with two detection mode: high sensitivity detection and interference immunity detection. (suitable for installation environments with many metal reflective surfaces)
  • Compact design,special for industrial lamps, sensors can be fixed at the edg or center of UFO.
  • 15m maximum installation height, suitable for most warehouses
  • Patented remote control, transmitting angle of the remote control is adjustable according to mounting height
  • Override function
  • Dim+/Dim- to set occupancy light level
  • Daylight priority function

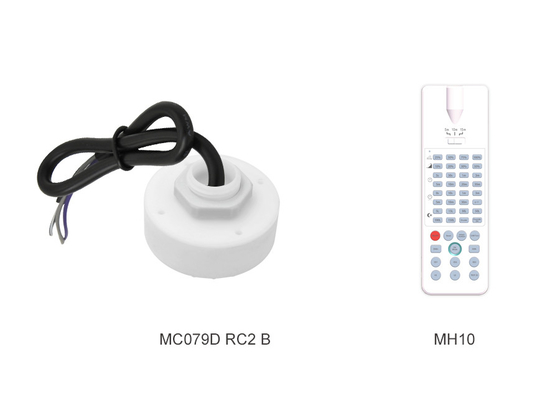

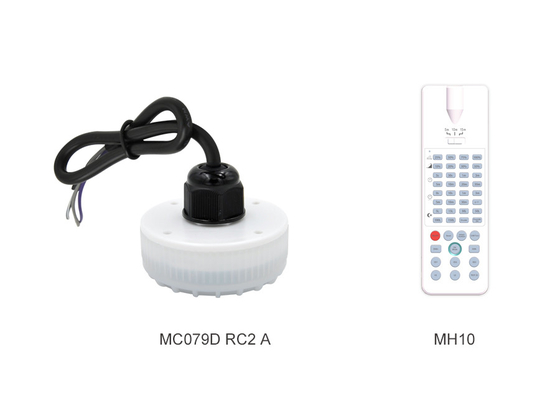

  MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 0    MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 1

    MC079D RC2 A         MC079D RC2 B





2. Parameter





Input Operating Voltage Rage N/A
DC Input Voltage 12/24VDC ±1V
Rated Voltage 12/24V
No-load Power N/A
Stand-by Power <0.3W
Surge Test N/A
Wiring

MC079D RC2 A fast connector

MC079D RC2 B 3 cores cable,wire diameter: 22AWG

MC079D RC2 C fast connector
Output Working Mode 0-10V DC
Type of Load N/A
Load Capacity N/A
Current of Load N/A
Wiring

MC079D RC2 A fast connector

MC079D RC2 B 3 cores cable,wire diameter: 22AWG

MC079D RC2 C fast connector
Dim Interface 0-10V Dimming < 50mA (Non-constant source)
Synchronous Control N/A
High Low-level N/A
PWM Control N/A
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
Transmitting power 1mW Max.
Hold time 5S/30S/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
Stand-by Period 0s/10S/1min/3min/5min/10min/30min/+∞
Detection Area 25%/50%/75%/100%
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable
Detecting Radius See detection pattern
Mounting Height 15m Max
Detecting Angle 150°(wall mounting) 360°(ceiling mounting)
Wireless Module Operating Frequency N/A
Transmitting power N/A
Transmitting distance N/A
Modulation mode N/A
Number of coding N/A

Operating

Environment

 Operating Temperature -35℃~+70℃
Storage Temperature Temperature: -40℃~+80℃; Humidity: 10%-95% (non-condensing)
Certificate Standards Safety standards EN60669-2-1, EN60669-1
EMC standards EN55015, EN61000-3-2, EN61000-3-3, EN61547
Environmental Requirement Compliant to RoHS
Certificate CE
Others Wiring UL21996,3*22AWG, cable length: 300mm(pending)
IP Rating IP20(MC079D RC2 A,MC079D RC2 C),IP65(MC079D RC2 B)
Protection Class Class II
Installation External mounting, integrated mounting
Dimension See dimension
Package White paper box
Net Weight 55g
Lifetime 50,000h @ Ta Full load

Note

1. “N/A” means not available.

2. Detection area is affected by volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.




3. Function

1) On/OFF Function (stand-by period be set to “0”s)

MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 2



2) 2-step dimming function (stand-by period be set to “+∞”)

MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 3

3) 3-step dimming function (stand-by period be set to “10s/1min/3min/5min/10min/30min”)

MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 4



4) Daylight priority(stand-by period set to +∞)

MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 5



4. Dimension (mm)



MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 6





5. Wiring





MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 7

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.



6. Radiation Pattern



Ceiling mounting



MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 8

*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 25% sensitivity is not able to detect motion signal.



Wall mounting

MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 9



7. Remote Control

Toggle button can set the remote control distance of  5m /10m /15m.





MC079D RC 2 DC Motion Sensor Daylight Priority Function High Bay For Warehouse 10
