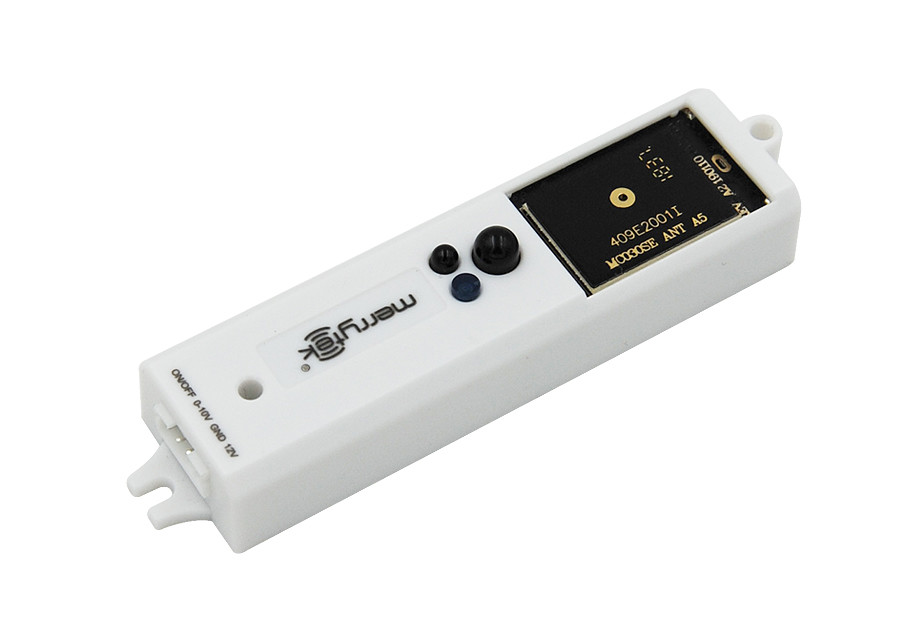

150° IP20 4m Mounting DC Motion Sensor MC090D RC

Place of Origin China
Brand Name Merrytek
Certification RoHS
Model Number MC090D RC
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Cartons
Delivery Time within 5 working days for sample and small order; within 3-4 weeks for bulk order
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12±2V DC Rated Voltage 12±0.6V DC
Stand-by Power ≤0.5W Output 5V High And Low Voltage Signal,0-10v Signal
Detection Area 100%/75%/50%/25% Detecting Radius 2-4m (mounting Height 3m)
Mounting Height 4m Max Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
High Light

4m Mounting DC Motion Sensor

,

IP20 DC Motion Sensor

,

MC090D RC Motion Sensor

Leave a Message
Product Description

DC Motion Sensor with Ultra-slim Design & Remote Control Function MC090D RC





1. Features



■ Built in motion sensor and daylight sensor



■ Powered by low voltage 12vdc,output ON/OFF and 0-10v signal



■ Ultra-slim design makes it suitable for more luminaries



■ Sensor data can be set by remote control MH10



■ 5 years warranty





2. Parameters



Input DC Input Voltage 12±2V DC
Rated Voltage 12±0.6V DC
Stand-by Power <0.5W
Output Working Mode 5V high and low voltage signal,0-10v signal
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
Transmitting power 0.5mW Max.
Hold time 5S/30S/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
Twilight Time 0s/10S/1min/3min/5min/10min/30min/+∞
Detection Area 25%/50%/75%/100%
Daylight Sensor

5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable

Daylight priority: ON / OFF value

(5lux/15Lux/30Lux/50Lux)/150Lux

100Lux/200Lux

150Lux/300Lux

Detecting Radius 2-4m (mounting height 3m)
Mounting Height 4m Max
Detecting Angle 150°

Operating

Environment

Operating Temperature -20℃…+60℃
Storage Temperature

Temperature: -40℃…+80℃;

Humidity: 10%-95% (non-condensing)

EMC standards EN55015, EN61000-3-2, EN61000-3-3, EN61547
Environmental Requirement Compliant to RoHS
Certificate N/A
Others Wiring Cables
IP Rating IP20
Protection Class Class II
Installation Base installation
Dimension 77.5x16mm
Package cartons
Net Weight 18g
Lifetime 5 years warranty @Ta 230V full load

Note

1. “N/A” means not available.

2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.



3.Function



1) On/OFF Function (stand-by period be set to “0”s)

150° IP20 4m Mounting DC Motion Sensor MC090D RC 0

2) 2-step dimming function (stand-by period be set to “+∞”)

150° IP20 4m Mounting DC Motion Sensor MC090D RC 1

3) 3-step dimming function (stand-by period be set to “10S/1min/3min/5min/10min/30min”)



150° IP20 4m Mounting DC Motion Sensor MC090D RC 2








4.Dimension (mm)

150° IP20 4m Mounting DC Motion Sensor MC090D RC 3


5.Wiring



150° IP20 4m Mounting DC Motion Sensor MC090D RC 4

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

*Without auxiliary 12Vdc interface driver, MC103S can be an option of power supply for sensor



 150° IP20 4m Mounting DC Motion Sensor MC090D RC 5

6. Structure and installation



150° IP20 4m Mounting DC Motion Sensor MC090D RC 6


7. Radiation pattern



1) Ceiling mounting

150° IP20 4m Mounting DC Motion Sensor MC090D RC 7



*Only 100% detection sensitivity is workable when installed at 4m mounting height. 25% /50% sensitivity is not able to detect motion signal.





2) Wall mounting

150° IP20 4m Mounting DC Motion Sensor MC090D RC 8



8. Remote control

150° IP20 4m Mounting DC Motion Sensor MC090D RC 9


9. Factory Setting



Detection area: 100%, Hold Time: 5S, Stand-by Period: 0s, Stand-by dim level: 10%, Daylight Sensor: Disable



10. Application Notice



1) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.



2) The sensor which installed in the plastic and glass lampshade will reduce the sensitivity.For every 3mm increase in thickness, the sensitivity will be reduced by 20%.



3) The dimming performance could be different from different 0/1-10v drivers.



4) The light sensitivity threshold is in a sunny environment, no shadow and ambient light diffuse reflection..Ambient lux level could be different in different environment, weather, climate, time-of-day and season.



5) The parameters of the sensor may need to be reconfigured in different installation environments. Please refer to the following instructions or contact the manufacturer.



6) Sensor could be triggered by wind and rain,as well as the moving objects nearby,if apply outdoor.



7) The mounting height is no more than 4m,proper mounting height is 3m;the distance between any inductive sensors should be greater than 3m.



8) Do not place the sensor close to high-density objects such as metal, glass,concrete walls, etc, false triggering could happen. When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.



9) Please ensure that there are no moving signals around the sensor, such as fan,DC motor, sewer pipe, air outlet, etc., the sensor may generate false trigger.



10) You are advised to test 5 samples before mass application of sensor in a new lighting project.



11) Due to continuous improvement, the contents of this instruction could be changed without prior notice



12) The sensor is only designed for base mounting
