12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MC079D RC 2
Minimum Order Quantity 300pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting Height 15m Max DC Input Voltage 12/24V DC ±1V
Rated Voltage 12/24V Stand-by Power <0.3W
Working Mode 0-10V DC Operating Temperature -35℃~70℃
Certificate CE Lifetime 50,000h @ Ta Full Load
Detecting Angle 150°(wall Mounting) 360°(ceiling Mounting)
Highlight

dc motion detector

,

microwave movement sensor

,

DC Input DC Motion Sensor

Leave a Message
Product Description

MC079D RC 2, DC Operation Sensor, 12/24V DC input, Patented Sensor Antenna, High Bay Sensor for Warehouse





1. Features




  • 12/24V DC input,for DC systems or LED power supplies with 12/24V DC auxiliary power output
  • 0-10V dimming port, 3 or 2 step dimming function
  • Newly patent design sensor antenna with two detection mode: high sensitivity detection and interference immunity detection. (suitable for installation environments with many metal reflective surfaces)
  • Compact design,special for industrial lamps, sensors can be fixed at the edg or center of UFO.
  • 15m maximum installation height, suitable for most warehouses
  • Patented remote control, transmitting angle of the remote control is adjustable according to mounting height
  • Override function
  • Dim+/Dim- to set occupancy light level

    12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 0    12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 1

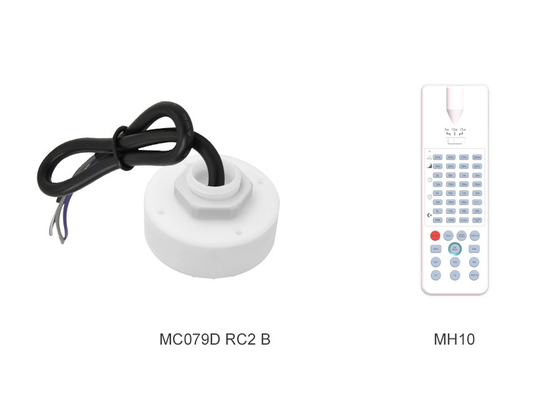

    MC079D RC2 A         MC079D RC2 B





2. Parameter





Input Operating Voltage Rage N/A
DC Input Voltage 12/24VDC ±1V
Rated Voltage 12/24V
No-load Power N/A
Stand-by Power <0.3W
Surge Test N/A
Wiring

MC079D RC2 A fast connector

MC079D RC2 B 3 cores cable,wire diameter: 22AWG

MC079D RC2 C fast connector

Output Working Mode 0-10V DC
Type of Load N/A
Load Capacity N/A
Current of Load N/A
Wiring

MC079D RC2 A fast connector

MC079D RC2 B 3 cores cable,wire diameter: 22AWG

MC079D RC2 C fast connector

Dim Interface 0-10V Dimming < 50mA (Non-constant source)
Synchronous Control N/A
High Low-level N/A
PWM Control N/A
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
Transmitting power 1mW Max.
Hold time 5S/30S/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
Stand-by Period 0s/10S/1min/3min/5min/10min/30min/+∞
Detection Area 25%/50%/75%/100%
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable
Detecting Radius See detection pattern
Mounting Height 15m Max
Detecting Angle 150°(wall mounting) 360°(ceiling mounting)
Wireless Module Operating Frequency N/A
Transmitting power N/A
Transmitting distance N/A
Modulation mode N/A
Number of coding N/A

Operating

Environment

Operating Temperature -35℃~+70℃
Storage Temperature Temperature: -40℃~+80℃; Humidity: 10%-95% (non-condensing)
Certificate Standards Safety standards EN60669-2-1, EN60669-1
EMC standards EN55015, EN61000-3-2, EN61000-3-3, EN61547
Environmental Requirement Compliant to RoHS
Certificate CE
Others Wiring UL21996,3*22AWG, cable length: 300mm(pending)
IP Rating IP20(MC079D RC2 A,MC079D RC2 C),IP65(MC079D RC2 B)
Protection Class Class II
Installation External mounting, integrated mounting
Dimension See dimension
Package White paper box
Net Weight 55g
Lifetime 50,000h @ Ta Full load

Note

1. “N/A” means not available.

2. Detection area is affected by volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.





3. Function


1) On/OFF Function (stand-by period be set to “0”s)

12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 2



2) 2-step dimming function (stand-by period be set to “+∞”)

12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 3

3) 3-step dimming function (stand-by period be set to “10s/1min/3min/5min/10min/30min”)

12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 4



4. Dimension (mm)




12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 5





5. Wiring






12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 6

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.



6. Structure




12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 7



7. Radiation Pattern



Ceiling mounting



12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 8

*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 25% sensitivity is not able to detect motion signal.



Wall mounting

12 / 24V DC Input DC Motion Sensor Patented Sensor Antenna Design CE Certificated 9
