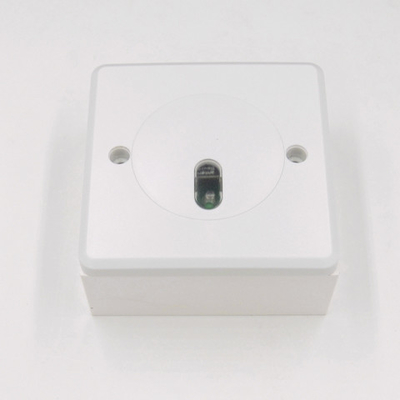

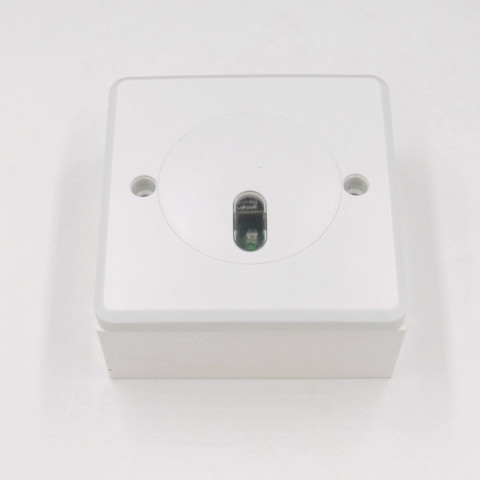

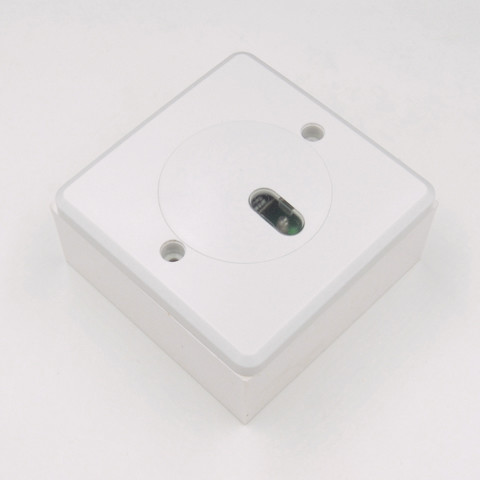

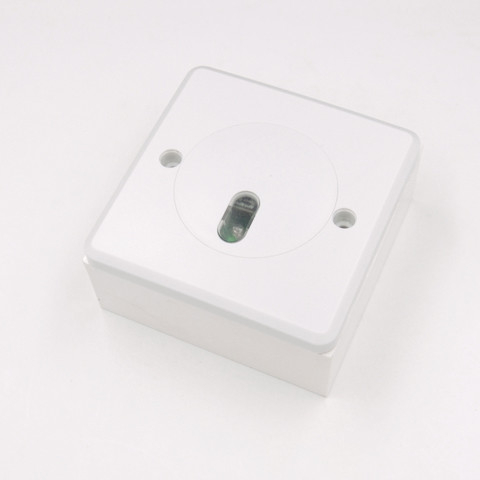

LED Panel & Down Light Microwave Motion Sensor MSA002 On / Off Function

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA002
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Input Voltage 220-240VAC 50Hz Full Load Power 400W(Inductive)@220VAC 800W(Resistive)@220VAC
Load Output Current 2A(Inductive)@220VAC Max. Detection Area Radius 4-7m
Mounting Height Suggest Mounting Height:3-6m, 8m Max. Certificate Requirement CE
Stand-by Power ≤0.5W Operating Temperature -25℃~55℃ Humidity:85%(Non-condensing)
High Light

microwave sensors for lighting

,

rf motion sensor

Leave a Message
Product Description

Microwave Motion Sensor MSA002 On/ Off Function / Celling Mounted for LED Panel & Down Light

  • On/ Off Function / Celling Mounted Version

  • Stand-by Power: ≤0.5W

  • Max. Mounting Height: 6m

  • Suitable for LED Panel & Down Light

  • Fuctions such as detection area, hold time and daylight sensor can be set via DIP.

  • 5 Years Guarantee



Specifications:



Input Input Voltage Range 196-264VAC 50Hz
Operating Input
Voltage
220-240VAC 50Hz
Stand-by Power ≤0.5W
Wiring Method Lifting type wiring terminal
Output Operating Mode On/oFF
Load Type LED Driver Incandescent lamp
Load Output Voltage 220V AC
Full Load Power 400W(Inductive)@220VAC 800W(Resistive)@220VAC
Load Output Current 2A(Inductive)@220VAC Max.
Wiring Method Lifting type wiring terminal
Sensor Parameters HF Operating
frequency
5.8 GHz ±75 MHz,ISM Wave Band
HF Radiated power 0.5mW Max.
Hold time 5s/30s/90S/3min/20min/30min ---(Set via 3 DIP)
Sensing Area 25%,/50%,75%,100%/ (Diameter:16m Max.) ---(Set via 2 DIP)
Daylight Sensor 2 lux /10/ lux 25 lux /50 lux /Disable (Set via 3 DIP)
Detection Area Radius 4-7m
Mounting Height Suggest Mounting Height:3-6m, 8m Max.
Detection Angel 180°

Operating

Environment

Operating temperature -25℃~55℃ Humidity:85%(Non-condensing)
Storage temperature -40℃~80℃ Humidity:85%(Non-condensing)
Others IP rating IP20
Protection Class Class II
Certificate requirement CE
Life 50000h @ Ta Full load



Wiring Diagram:

LED Panel & Down Light Microwave Motion Sensor MSA002 On / Off Function 0



Dimension (Unit:mm):

LED Panel & Down Light Microwave Motion Sensor MSA002 On / Off Function 1

Function:

LED Panel & Down Light Microwave Motion Sensor MSA002 On / Off Function 2

Function Diagram:

LED Panel & Down Light Microwave Motion Sensor MSA002 On / Off Function 3
