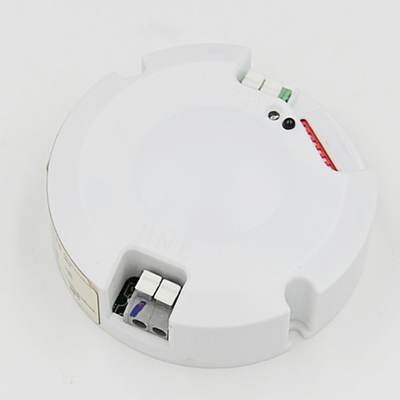

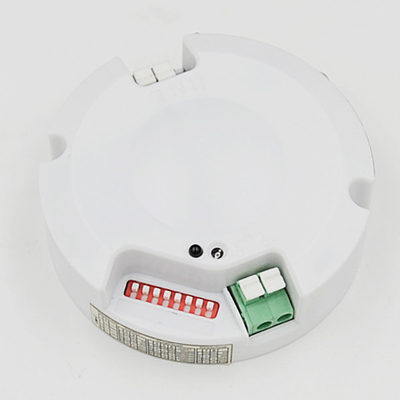

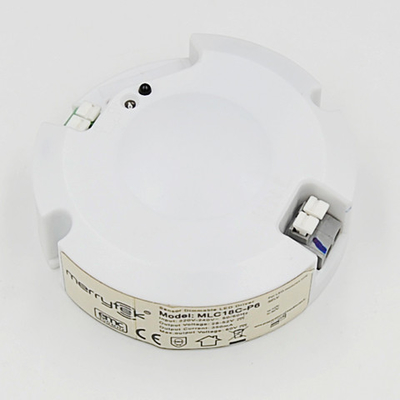

Sensor Dim 300ma Led Driver Constant Current With Daylight Priority Function

  • Sensor Dim 300ma Led Driver Constant Current With Daylight Priority Function
  • Sensor Dim 300ma Led Driver Constant Current With Daylight Priority Function
  • Sensor Dim 300ma Led Driver Constant Current With Daylight Priority Function
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MLC16C-P6
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MLC16C-P6 Output Current 300mA
Output Load 16W Max. Output Voltage 60Vdc Max.
Working Temperature -25℃-50℃ Isolation Class Class Ⅱ
IP Rating IP20
High Light

low voltage led driver

,

LED Panel Light Driver
Leave a Message
Product Description



Sensor Dim LED Driver 300mA output constant current with daylight priority function MLC16C-P6



  • On-Off / 3-step dimming function for LED ceiling
  • Integration of microwave motion sensor and daylight sensor
  • Operating type: dimming control, daylight priority
  • Stand-by power: ≤0.5W
  • Detection area; hold time; stand-by period and daylight sensor (daylight priority) can be set via DIP switch
  • 3 year warranty.



Parameters:

Input Operating Voltage 198-264V AC 50Hz/60HZ
Input Voltage 220-240V AC 50Hz/60HZ
Input Current 130mA Max.
Power Factor 0.9-0.95(100% load)
Efficiency ≥83% Max.@230V
Stand-by Power ≤0.5W
Wiring Method Grey terminal
Output Operating type Dimming control, daylight priority
Load type LED
Ripple requirement (Flickering or Flickering Free) Flickering(But eyes cannot see the shake)
No-load output voltage 60V DC Max
Load output voltage range 28-52V DC
Full load output power 16W Max.
Load output current 300mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring Method Green terminal
Exception Protection Requirements Output over voltage Protection Yes
Output over load protection Yes
Output short circuit protection Yes
Sensor Parameter HF Operating Frequency 5.8 GHz ±75 MHz,ISM wave band
HF Radiated power 0.5mW Max.
Hold Time 5S/90S/3min/10min (can be set by 2 DIP)
Dimming Ratio 10% -20%
Stand-by Period 0S/30S/10min/+∞ (can be set by 2 DIP)
Detection Area 50%/100% (can be set by 1 DIP)
Daylight Sensor 5lux / 15lux /50lux / 100lux / Disable (can be set by 3 DIP)
Daylight priority 5lux/50lux；15lux/100lux；50lux/150lux；100lux/200lux
HF Detection Area Radius 3-6m (Mounting height 3m)
Mounting Height: Suggested mounting Height:3-4m , 6m Max.
Detection Angle 150°(Wall Mounting), 360°(Ceiling Mounting)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity : 85% (Non-condensing)
Storage temperature/ humidity -35℃~80℃ Humidity : 85% (Non-condensing)
Outer case max. temp(Tc) 80℃

Safety

& EMC



 Isolation pressurization (L N)input-output,3000VAC/5mA/1min
Safety requirement EN61347-1
EMC EN55015
Certification CE
Others IP rating IP20
Protection level Class II
Installation size Φ78mm
Packaging requirement Bubble bag + clapboard + outer case(K=A)
Life 30000h @ Ta 100% load




Wring Diagram:



Sensor Dim 300ma Led Driver Constant Current With Daylight Priority Function 0



Dimension:



Sensor Dim 300ma Led Driver Constant Current With Daylight Priority Function 1







Function Diagram:



Sensor Dim 300ma Led Driver Constant Current With Daylight Priority Function 2







Function:

Sensor Dim 300ma Led Driver Constant Current With Daylight Priority Function 3

Sensor Dim 300ma Led Driver Constant Current With Daylight Priority Function 4
