Product Details
Voltage Range 120-277Vac 50/60Hz Stand-by Power ≤0.5W
Mode Constant On Mode/Sensor Mode Operating Frequency 5.8 GHz ±75 MHz
Operating Temperature -25℃~+60℃ Certificate Requirement UL
Installation Size 65x36x25mm
High Light

microwave motion sensor

,

light motion sensor
Leave a Message
Product Description

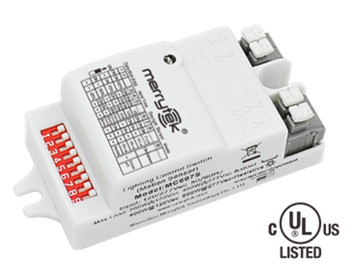

North American UL Microwave Motion Sensor ON/OFF Control Most Compact & Entry-Level MC607S



  • The first ON/OFF control, North American version Microwave Motion Sensor;
  • The most compact & entry-level Microwave Motion Sensor within the industry;
  • Automatic switching based on motion and light level;
  • Dimension: L65 x W36 x H25mm, suitable to fix within most luminaries;
  • 4-pole press-in terminal (L, N, N, L'), easy assembly;
  • Detection area, hold time, daylight sensor and mode can be precisely set via DIP switches.





1. Parameters

InputOperating Voltage108-305Vac 50/60Hz
Voltage Range120-277Vac 50/60Hz
OutputLoad Type

120VAC:≤200W (Inductive) ≤400W(Resistive)
277VAC:≤400W (Inductive) ≤800W(Resistive)

Stand-by Power≤0.5W
Sensor ParametersHold time5S/30S/90S/5min/20min/30min
Detection Area25%/50%/75%/100%
Daylight Sensor2lux/10Lux/25Lux/50Lux/disable
ModeConstant on mode/Sensor mode
Mounting HeightCeiling mounting 3-6m
Sensing Area4-7m (Mounting height 3m)
Wireless ParametersOperating Frequency5.8 GHz ±75 MHz
Dimming Control0N/0FF

Operating
Environment

Operating Temperature-25℃~+60℃

Safety
& EMC

Certificate RequirementUL
OthersWiring Method4-pole press fit terminal (Input grey L. N. Output grey N. L’)
IP RatingIP20
Protection ClassClass II
Installation Size65x36x25mm
Packaging RequirementClapboard +Outer Carton(K=A)
Weight41g
Life50000h




2. Dimension (Unit:mm)

ON / OFF Control UL Motion Sensor / 50/60Hz Microwave Motion Sensor 0


3. Wiring Diagram

ON / OFF Control UL Motion Sensor / 50/60Hz Microwave Motion Sensor 1


4. Function
ON / OFF Control UL Motion Sensor / 50/60Hz Microwave Motion Sensor 2

5. Sensor Settings

  • Detection Area (100%/75%/50%/25%)
 S1S2
100%ONON
75%-ON
50%ON-
25%--



  • Hold Time
 S3S4S5
5SONONON
30S-ONON
90SON-ON
5min--ON
20minONON-
30min---




  • Daylight Sensor
 S6S7S8
2LuxONONON
10LuxONON-
25Lux-ON-
50LuxON--
Disable---



  • Mode
 S9
Sensor modeON
Constant on mode-
