DC Input Detachable Microwave Motion Sensor / Detector MC017D Daylight Priority

  • DC Input Detachable Microwave Motion Sensor / Detector MC017D Daylight Priority
Place of Origin China
Brand Name Merrytek
Certification TUV
Model Number MC017D
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
DC Input Voltage Range 12VDC±2V Operating Mode ON/OFF、PWM/1-10V
Mounting Height 3m Supported:6m Max. Daylight Mode Daylight Sensor/Daylight Priority
Operating Temperature -35℃~70℃ IP Rating IP20
Installation Requirement Built-in, Detachable Certificate Requirement TUV
High Light

microwave sensors for lighting

,

floodlight motion sensor
Leave a Message
Product Description

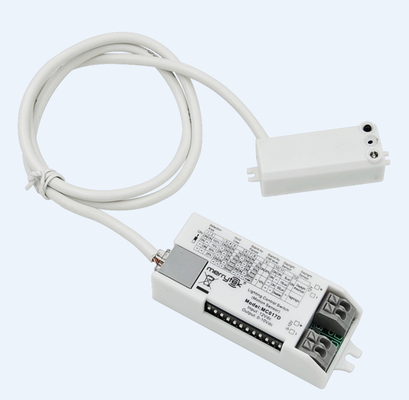

Microwave Motion Sensor DC Input MC017D Daylight Priority Detachable Sensor





1. Features



* DC Input range: 12VDC±2V;

* Operating Mode: Daylight Sensor or Daylight Priority

* Main sensor and detachable sensor, built-in installation;

* Detection area, hold time, stand-by period; stand-by DIM Level; mode and daylight sensor/daylight       priority can be precisely set via DIP switches;

* Suitable to connect to 0-10V dimmable LED Driver.





2. Parameters



Input Input Voltage Range 12VDC±2V
Rated Operating Voltage 12VDC
Rated Operating Current 25mA
Wiring Method Crimping terminals
Output Operating Mode ON/OFF,PWM/1-10V
1-10V Dimming < 50mA (Non constant current source)
Wiring Method Crimping terminals
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM wave band
Transmitting Power 0.5mW Max.
Detection Area 100%/75%/50%/25%
Hold time 5s/30s/90s/3min /15min/30min
Stand-by Period 0S/30S/90S/3min/30min/+∞
Daylight Sensor 5Lux/15Lux/50Lux/disable
Daylight Threshold ON/OFF: 5Lux(35LUX)/15Lux(50LUX)/50Lux(100LUX)/disable
Daylight Mode Daylight Sensor/Daylight Priority(valid when the light is at 10% bright)
Stand-by Dim Level 10%/30%
Mounting Height 3m Supported:6m Max.
Detection Area (Radius) 0.5-1m/S Walking straight≥2m
Detection Angle 170°(Wall mounting), 360°(Ceiling mounting)

Operating

Environment

 Operating Temperature -35℃~70℃
Storage Temperature -40℃~80℃
Others Certificate Requirement TUV
IP Rating IP20
Installation Requirement Built-in, detachable
Installation Size Main sensor: 76*30*20mm; detachable sensor: 51*20.2*13.5mm
Packaging Requirement Bubble bag+ Clapboard + Outer case(K=A)
Life 50000h






3. Dimension (Unit:mm)



DC Input Detachable Microwave Motion Sensor / Detector MC017D Daylight Priority 0





4. Wiring Diagram

DC Input Detachable Microwave Motion Sensor / Detector MC017D Daylight Priority 1



5. Function Diagram



DC Input Detachable Microwave Motion Sensor / Detector MC017D Daylight Priority 2



6. Sensor Settings



  • Detection Area (100%/50%)
  1 2
100% ON ON
75% ON -
50% - ON
25% - -



  • Hold Time
  3 4 5
5S ON ON ON
30S - ON ON
90S ON - ON
3 min - - ON
15min ON ON -
30min - - -
  • Stand-by Period
  6 7 8
0S ON ON ON
30S - ON ON
90S ON - ON
3 min - - ON
30min ON ON -
+∞ - - -



  • Stand-by Dim Level
9
ON 30%
- 10%



  • Daylight Sensor

Daylight Sensor:(5Lux/15Lux/50Lux/Disable) / Daylight Priority

    10 11
5Lux 35Lux ON ON
15Lux 50LUX ON -
50Lux 100Lux - ON
disable disable - -



  • Mode: Daylight Sensor/Daylight Priority
  12
Daylight Sensor ON
Daylight Priority -
