Wall Mounted Microwave Security Sensors For LED Panel / Down Light On / Off Function

  • Wall Mounted Microwave Security Sensors For LED Panel / Down Light On / Off Function
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA008
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Input Voltage 12V DC Full Load Power 100W（Inductive， 200W（Resistive）
Detection Area Radius 4-7m Mounting Height Suggest Mounting Height:2.5-6m
Operating Temperature -25℃~60℃ Humidity：85%（Non-condensing） Operating Mode On/Off
HF Radiated Power 0.5mW Max. IP Rating IP20
Certificate Requirement CE
High Light

microwave sensors for lighting

,

floodlight motion sensor
Leave a Message
Product Description

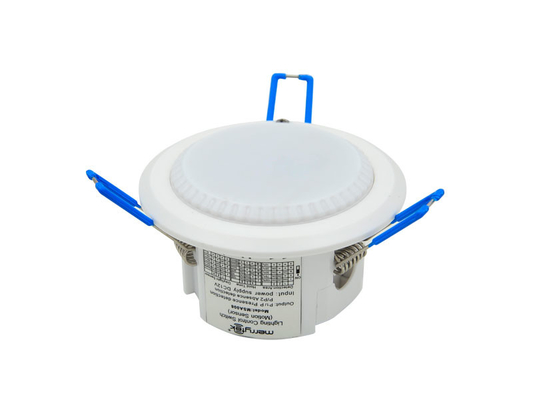

Microwave Motion Sensor Wall Mounted Version MSA008 for LED Panel & Down Light On/ Off Function

  • On/ Off Function / Wall Mounted Version

  • Stand-by Power: ≤0.5W

  • Max. Mounting Height: 6m

  • Suitable for LED Panel & Down Light

  • Fuctions such as detection area, hold time and daylight sensor can be set via DIP.

  • 5 Years Guarantee



Specifications:



Input Operating Voltage N/A
Direct Voltage 12±0.5V
Rated Voltage N/A
Idle Power N/A
Stand-by Power ≤0.5W
Lightning Surge N/A
Output Working Model ON/OFF
Type of Load Inductive or Resistive
Power of Load Inductive (200W) ; Resistive (100W)
Current of Load N/A
Surge Current of Load 10A relay--30A(50% Ipeak twidth =500us full load, cold start)or 60A(50% Ipeak twidth=200us full load, cold start) 17A relay --50A(50% Ipeak twidth =500us full load, cold start)or 80A(50% Ipeak twidth=200us full load, cold start)
Connection 1-10Vdimmable N/A
Synchronous control N/A
High low-level N/A
PWM Control N/A
Type of wiring N/A
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
Transmitting power 0.5mW Max.
Hold time 10S/1S/90S/3Min/20Min/30Min(set via 3 DIP)
Dim down N/A
Stand-by N/A
Sensitivity 100%/75%/50%25%/10% (set via 3 DIP)
Daylight Sensor 5lux/10lux/30lux/50lux/100lux/Disable(set via 3 DIP)(Diffusion status)
Daylight on/off N/A
Detecting Radius 4-6M (mounting height by 3m eters)
Mounting Height Suggested 2.5-6M
Detecting Angle 150°
Wireless Module Operating Frequency N/A
Transmitting power N/A
Transmitting distance N/A
Modulation mode N/A
Number of coding N/A

Operating

Environment

 Operating Temperature, -25℃…+60℃, Humidity:85% Non-condensing)
Storage Temperature -40℃…+80℃ Humidity: 10%-95%
Certificate Standards Safety standards N/A
EMC standards EN300440 EN301489-1 EN55015 EN61547 EN61000-3-2 EN61000-3-3 EN62479
Environmental protection Compliant to RoHS
Certificates N/A
Others Wiring Press Terminal, wire diameter:0.75-1.5mm2
IP Rating IP20
Protection Class Class II
Installation Interior installed
Mounting size Ф80mm (Cutout)
Package PE bag+ White box+ Instruction+ Clapboard + Carton(K=A)
Net Weight 86±5g
Lifespan 50000h @ Ta Full load
Remark:1. “N/A”means not available 2. Each data is tested under certain condition



Dimension (Unit:mm):



Wall Mounted Microwave Security Sensors For LED Panel / Down Light On / Off Function 0



Wiring Diagram:


Wall Mounted Microwave Security Sensors For LED Panel / Down Light On / Off Function 1

Function:

Wall Mounted Microwave Security Sensors For LED Panel / Down Light On / Off Function 2
