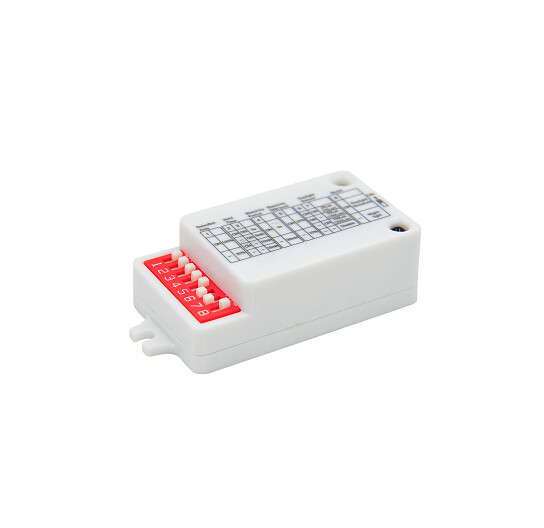

DALI Driver Microwave Movement Sensor 12V DC With Intelligent Lighting Control

  • DALI Driver Microwave Movement Sensor 12V DC With Intelligent Lighting Control
Place of Origin China
Brand Name Merrytek
Certification TUV
Model Number MC073D
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage Range 12V DC Operating Mode ON/OFF
Load Type 400W (Inductive), 800W（Resistive） Operating Frequency 5.8 GHz ±75 MHz，ISM Wave Band
Daylight Mode Daylight Threshold Operating Temperature -25℃~55℃
IP Rating IP20
High Light

microwave sensors for lighting

,

floodlight motion sensor
Leave a Message
Product Description

MC073D Microwave Motion Sensor Movement Detecting, Intelligent Lighting Control



1) 12V DC Input, detached motion detector

2) Work with DALI Driver for LED Downlight

3) LED Light ON/OFF Control





Parameter:



Input Operating Voltage 12VDC±2V
Direct Voltage N/A
Rated Voltage 12VDC
Idle Power N/A
Stand-by Power ≤0.5W
Lightning Surge N/A
Output Working Model ON/OFF
Type of Load Inductive or Resistive
Power of Load Inductive (400W) ; Resistive (800W)
Current of Load N/A
Surge Current of Load N/A
Connection 1-10Vdimmable N/A
Synchronous control N/A
High low-level N/A
PWM Control N/A
Type of wiring N/A
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
Transmitting power 0.5mW Max.
Hold time 5S/5min/10min/15min
Dim down N/A
Stand-by 0S/30min
Sensitivity 100%/50%
Daylight Sensor 25Lux(75LUX)/50Lux(150LUX)/100Lux(200LUX)/disable
Daylight on/off N/A
Detecting Radius 0.5-1m/S Straight moving≥2m
Mounting Height 3- 8m Max
Detecting Angle 150° Wall mounted, 360° ceiling mounted
Wireless Module Operating Frequency N/A
Transmitting power N/A
Transmitting distance N/A
Modulation mode N/A
Number of coding N/A

Operating

Environment

 Operating Temperature, -35℃…+70℃
Storage Temperature -40℃…+80℃
Certificate Standards Safety standards N/A
EMC standards N/A
Environmental protection Compliant to RoHS
Certificates Compliant to CE
Others Wiring Press Terminal, wire diameter:0.75-1.5mm2
IP Rating IP20
Protection Class Class II
Installation Interior installed
Mounting size 53*26.1*16mm
Package N/A
Net Weight N/A
Lifespan 50000h @ Ta Full load
Remark:1. “N/A”means not available 2. Each data is tested under certain condition




Function



DALI Driver Microwave Movement Sensor 12V DC With Intelligent Lighting Control 0



Dimension



DALI Driver Microwave Movement Sensor 12V DC With Intelligent Lighting Control 1

Structure



DALI Driver Microwave Movement Sensor 12V DC With Intelligent Lighting Control 2





DIP Setting



Sensitivity



1 2
ON ON 100%
ON - 75%
- ON 50%
- - 25%




Hold Time



3 4 5
ON ON ON 5S
- ON ON 30S
ON - ON 90S
- - ON 3 min
ON ON - 15min
- - - 30min




Daylight Threshold



10 11 ON OFF
ON ON 25Lux 75Lux
ON - 50Lux 150Lux
- ON 100Lux 200Lux
- - disable
