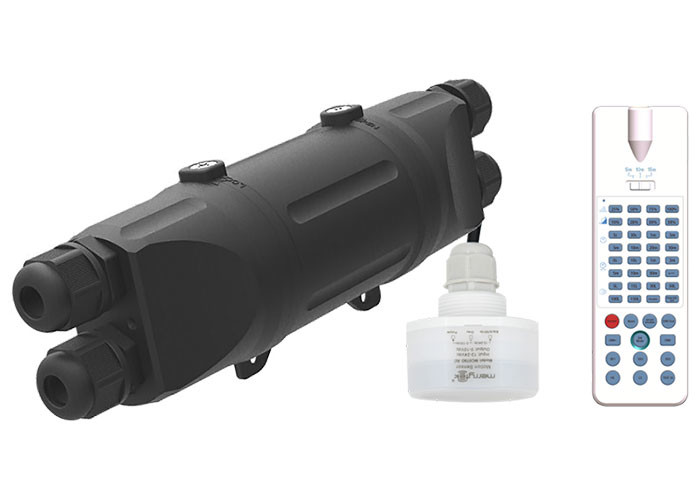

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Place of Origin China
Brand Name Merrytek
Certification CE & RED
Model Number MC623V D RC
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, amd then reinforced with carton for outer packing
Delivery Time 1, Sample ans small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T
Supply Ability 10,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Operating Voltage 120/277VAC, 50/60Hz
Detection Area 8m(ceiling Mounting: 9m) Rated Load 400W (Inductive), 800W (Resistive) @120V AC, 800W (Inductive), 1000W (Resistive) @277V AC
HF System 5.8GHz ±75MHz, ISM Wave Band Approval CE, RED, CULus
Operation Temperature -35℃…+70℃ Function ON/OFF Function, 2-step Dimming Function, 3-step Dimming Function
IP Rating IP65 Cover Color Black Or White
Transmitting Power 1mW Max.
Highlight

microwave sensors for lighting

,

floodlight motion sensor

Leave a Message
Product Description

Detachable High Bay Sensor for Warehouse , Remote control, Patented Microwave Antenna





Description

Designing for warehouse

IP65,support external installation

Patented Microwave Antenna, mounting height is 15m Max, suitable to install in most warehouses.

5.8GHz high frequency microwave(C-Band license-free operation)

MC623V D RC is an innovative and active motion detector with HF system 5.8GHz. Work with 1-10V dimmable LED driver, easy to achieve 2-step or 3-step dimming function. Work with remote controller MH10, easy to adjust sensor parameters.



Function:

ON-OFF function

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 0

2-step dimming function

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 1

3-step dimming function

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 2



Detection Patter:

Ceiling mounting

Ceiling mounted height: 3m

Sensitivity: 100%/75%/50%/25%

Ceiling mounted height: 9m

Sensitivity: 100%/75%/50%/25%

Ceiling mounted height: 15m(*)

Sensitivity: 100%/75%/50%

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 3

Normal moving (Speed:1m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 4

Normal moving (Speed:1m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 5

Normal moving (Speed:1m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 6

Slow moving (Speed 0.3m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 7

Slow moving (Speed 0.3m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 8

Slow moving (Speed 0.3m/s)

*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 25% sensitivity is not able to detect motion signal.



Wall mounting

Horizon mounted height: 2m

Sensitivity: 100%/75%/50%/25%

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 9

Normal moving (Speed:1m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 10

Slow moving (Speed 0.3m/s)



Specifications:

Operating voltage

120/277VAC, 50/60Hz

Rated load

400W (Inductive), 800W (Resistive) @120V AC

800W (Inductive), 1000W (Resistive) @277V AC

HF system 5.8GHz±75MHz, ISM wave band

Stand-by Power

<1W

Transmitting power

1mW Max.

Detection zone Max.(D x H) 15m x 8m
Motion detection 0.3~3m/s
Detection angle 150°(wall installation) 360°(ceiling installation)
IP rating IP65
Operation temperature

-35℃…+70℃

Hold time

5S/30S/1min/3min/5min/10min/20min/30min

Detection Area

100%/75%/50%/25%

Daylight sensor

5lux/15lux/30lux/50lux/100lux/150lux/Disable

Stand-by DIM Level

10%/20%/30%/50%

Life time 50,000 hours
Guaranty 5 years





Remote Control

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse 11

Applications:

warehouse, etc
