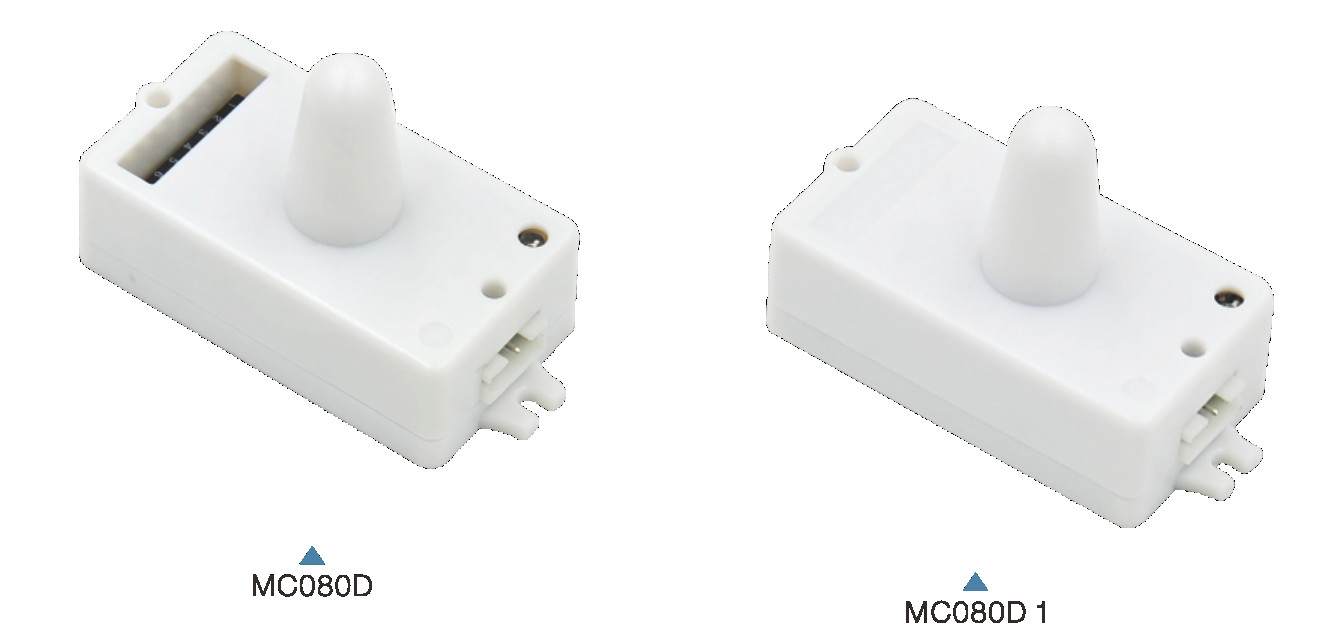

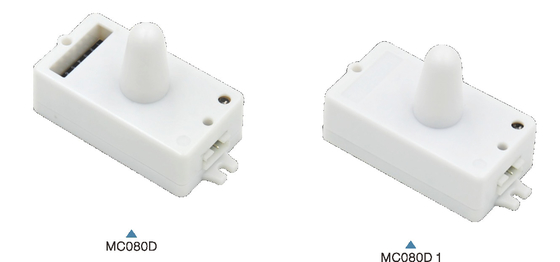

Needle Antenna Microwave Motion Sensor DC Operate With High / Low Level Signals
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MC080D/MC080D 1 |
| Minimum Order Quantity | Stop production, not available. |
| Price | Negotiation |
| Packaging Details | Packed in bubble bags firstly, amd then reinforced with carton for outer packing |
| Delivery Time | 1, Sample ans small order: Within 5 working days 2, Bulk order: within 3-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 10,000pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Microwave Motion Sensor | DC Input Voltage | 12±2V DC |
|---|---|---|---|
| Detection Area | 4-6m (mounting Height 3m) | High And Low-level | 5V Output |
| HF System | 5.8GHz ±75MHz, ISM Wave Band | PWM Control | 5V Output |
| Operation Temperature | -25℃…+60℃ | Function | ON/OFF Function, 2-step Dimming Function, 3-step Dimming Function |
| IP Rating | IP20 | Cover Color | White |
| Transmitting Power | 0.5mW Max. | ||
| Highlight | microwave sensors for lighting,floodlight motion sensor |
||
Product Description
DC Operate with Needle Antenna Microwave Motion Sensor , High and Low Level Signals , PWM Signals
Description
1) Patented needle antenna design solves the problem of instability of the sensor built-in backside of metal LED plate.
2) 5.8GHz high frequency microwave
3) Adjustable detecting sensitivity via DIP switches, suitable to variety of installation sites.
4) Compatible control mode of high and low level signals and PWM signals.
Function:
ON-OFF function
2-step dimming function
3-step dimming function
Detection Patter:
Ceiling mounting
|
Ceiling mounted height: 3m Sensitivity: 100%/75%/50%/25% |
Ceiling mounted height: 4m(*) Sensitivity:100%/75% |
|
Normal moving (Speed:1m/s) |
Normal moving (Speed:1m/s) |
|
Slow moving (Speed 0.3m/s) |
Slow moving (Speed: 0.3m/s) |
*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 25% sensitivity is not able to detect motion signal.
Wall mounting
|
Horizon mounted height: 2m Sensitivity: 100%/75%/50%/25% |
|
|
Normal moving (Speed:1m/s) |
Slow moving (Speed 0.3m/s) |
Specifications:
|
DC Input Voltage |
12±2V DC |
|
Rated Voltage |
12±0.6V DC |
| HF system | 5.8GHz±75MHz, ISM wave band |
|
Stand-by Power |
≤0.5W |
| Transmitting power |
0.5mW Max. |
| Detection zone Max.(D x H) | 6m x 4m |
| Motion detection | 0.3~3m/s |
| Detection angle | 150°(wall installation) 360°(ceiling installation) |
| IP rating | IP20 |
| Operation temperature |
-25℃…+60℃ |
| Hold time |
5S/90S/3min/10min |
|
Detection Area |
100%/75%/50%25% |
| Daylight sensor |
5lux/15lux/50lux/+∞ |
|
Stand-by DIM Level |
20% |
| Life time | 50,000 hours |
| Guaranty | 5 years |
DIP Switch Setting
Detection Area (Sensitivity)
| 1 | 2 | ||
| Ⅰ | ON | ON | 100% |
| Ⅱ | - | ON | 75% |
| Ⅲ | ON | - | 50% |
| Ⅳ | - | - | 25% |
Hold Time
| 3 | 4 | ||
| Ⅰ | ON | ON | 5S |
| Ⅱ | - | ON | 90S |
| Ⅲ | ON | - | 3min |
| Ⅳ | - | - | 10min |
Daylight Sensor
| 5 | 6 | ||
| Ⅰ | ON | ON | 5Lux |
| Ⅱ | - | ON | 15Lux |
| III | ON | - | 50Lux |
| Ⅳ | - | - | Disable* |
*Disable means the daylight sensor does not work. The sensor will turn on light once motion is detected regardless of ambient light level.
Stand-by Period
| 7 | 8 | ||
| Ⅰ | ON | ON | 0S |
| Ⅱ | - | ON | 30S |
| III | ON | - | 10min |
| Ⅳ | - | - | +∞ |
Applications:
gas station, etc
