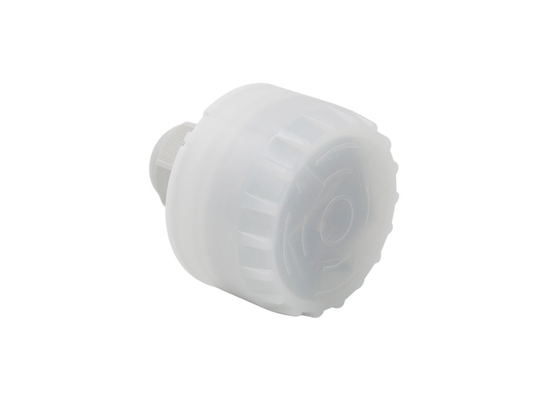

DC Motion Sensor MC079D RC3 with Plug-in Design and Daylight Priority Function

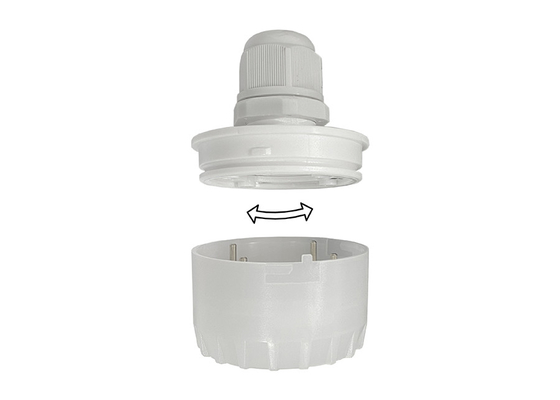

Easy Upgrading For Warehouse High Bay Lights





MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 0

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 1



1. Features



  • 12/24V DC input,for DC systems or LED power supplies with 12/24V DC auxiliary power output
  • 0-10V dimming port, 3 or 2 step dimming function
  • Newly patent design sensor antenna with two detection mode: high sensitivity detection and interference immunity detection. (suitable for installation environments with many metal reflective surfaces)
  • Plug-in design with IP65 water-proof design
  • 15m maximum installation height, suitable for most warehouses
  • Patented remote control, transmitting angle of the remote control is adjustable according to mounting height
  • Override function
  • Dim+/Dim- to set occupancy light level
  • Daylight priority function





2. Parameter

 Input
 DC Input Voltage  12/24V DC ±1V
 Rated Voltage  12/24V
 Stand-by Power  <0.3W
 Wiring  Screw terminals
 Output  Working Mode  0-10V DC
 Wiring  Screw terminals
 Dim Interface  0-10V Dimming  < 50mA (Non-constant source)
 Sensor   Parameters  Operating Frequency  5.8 GHz ±75 MHz,ISM Band.
 Transmitting power  1mW Max.
 Hold time  5S/30S/1min/3min/5min/10min/20min/30min
 Stand-by DIM Level  10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
 Stand-by Period  0s/10S/1min/3min/5min/10min/30min/+∞
 Detection Area  25%/50%/75%/100%
 Daylight Sensor

 Daylight threshold:

 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable

 Daylight priority: ON/OFF value

 (5lux/15Lux/30Lux/50Lux)/150Lux

 100Lux/200Lux

 150Lux/300Lux
 Detecting Radius  See detection pattern
 Mounting Height  15m Max
 Detecting Angle  150°(wall mounting) 360°(ceiling mounting)

Operating

Environment

  Operating Temperature  -35℃…+70℃
 Storage Temperature  Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing)
 Certificate   Standards  Safety standards  EN60669-2-1, EN60669-1
 EMC standards  EN55015, EN61000-3-2, EN61000-3-3, EN61547
 Environmental   Requirement  Compliant to RoHS
Certificate  NA
IP Rating  IP65
Protection Class  Class II
Installation  External mounting,integrated mounting
Dimension  See dimension
Package  White paper box
Net Weight  55g
Lifetime  50,000h @Ta 230V full load

Note

1. “N/A”means not available.

2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.




3. Function

1) On/OFF Function (stand-by period be set to “0”s)

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 2



2) 2-step dimming function (stand-by period be set to “+∞”)

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 3

3) 3-step dimming function (stand-by period be set to “10s/1min/3min/5min/10min/30min”)

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 4



4) Daylight priority(stand-by period set to +∞)

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 5



4. Dimension (mm)



MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 6           MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 7







5. Wiring



MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 8



*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.





6.Structure

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 9



7. Installation



MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 10







8. Radiation Pattern



Ceiling mounting



MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height 11

*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 25% sensitivity is not able to detect motion signal.
