Microwave Module of Small Size with Multi-function Extension Pins MIC01-5GH01



1. Features



1) 5-12Vdc input, low working current, and low standby power.

2) Small size and easy to install.

3) Patented low impedance antenna design to avoid interference with other wireless signals.

4) Built-in multiple digital filter algorithm to resist breeze and drizzle, and outputs high and low level signals.

5) Detection area, hold time, daylight threshold and other pins are reserved.

6) Multi-function extension pins F1-F5 are available, and sensing function is easy to expand, no additional MCU is required.



Small Size MIC01-5GH01 Microwave Module With Multi - Function Extension Pins 0



2. Application

MIC01-5GH01 has the advantages of long sensing distance, built-in, no dead zone, and not affected by temperature and humidity, noise, dust, air flow, and ambient light. It is widely used in induction lamps, automatic door control, smart home, smart bathroom, small household appliances, security, IoT, smart terminals and other products, suits for corridors, garages, toilets, courtyards, balconies and other places.



3. Parameter

Input Operating Voltage Range 5-12V DC
Rated Current 33±3mA
Output Mode Motion detected, output TTL control signal
Level output

High level: 3.3V±0.2V DC

Low level: 0V+0.2V DC
Sensor HF system 5.8 GHz ±75 MHz, ISM wave band
Transmitting Power 0.1mW max
Hold time Please refer to the diagram and the pins definition.
Stand-by DIM level
Stand-by period
Detection sensitivity
Daylight sensor
Detection area (radius) ≥4m (typical value, ceiling mounted at a height of 3m, walking speed of 0.3m/s)
Mounting height 6m Max
Detecting angle 360°(ceiling mount); 110°(wall mount)

Operating

Environment

 Operating temperature -20℃…+85℃
Storage temperature -40℃…+125℃ Humidity: 10%-95% (non-condensing)
Certificate Standards Environmental requirement RoHS
Certificate CE,FCC,RED
IP Rating IP00
Protection class Class II
Installation Built-in installation
Dimension 15.5x20mm
Package Bubble bag + partition + outer box (K=A)
Net Weight 3g

Note

1. The sensing distance is related to the moving speed and volume of the moving object. This data is obtained by testing a person with a height of 165cm and a moving speed of 0.3m/s.

  • The output interface type is switched by updating the firmware of the software.

3. It’s equipped with a light sensor by default.

4. Interface pin header is not included by default.


4. Dimension (mm)

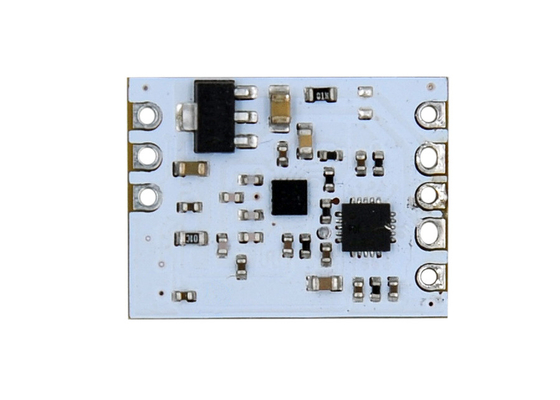

Small Size MIC01-5GH01 Microwave Module With Multi - Function Extension Pins 1



Note

The above dimensional data will have certain tolerances in actual products, and the maximum tolerance does not exceed ±1mm.



5. Structure

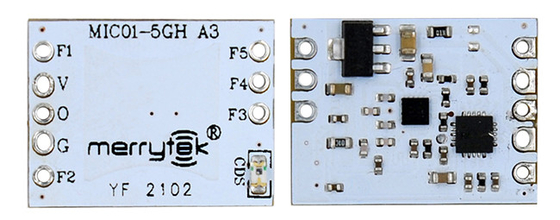

Small Size MIC01-5GH01 Microwave Module With Multi - Function Extension Pins 2

6. Pins & parts definition



  Name Description Function and Parameters
1 V Positive input Operating Voltage Range: 5-12Vdc
2 O High level and low level signals High level and low level signal output interface
3 G Negative input Negative input of the power supply
4 F1 Function pin 1 Hold time setting pin 1 (see configuration sheet for details)
5 F2 Function pin 2 Hold time setting pin 2 (see configuration sheet for details)
6 F3 Function pin 3 Hold time setting pin 3 (see configuration sheet for details)
7 F4 Function pin 4 Detection sensitivity setting pin (see configuration sheet for details)
8 F5 Function pin 5 Daylight sensor threshold setting pin (see configuration sheet for details)
9 CDS Daylight sensor A sensor that detects the intensity of external light.
10 ANT Antenna Microwave transmitting and receiving integrated antenna
