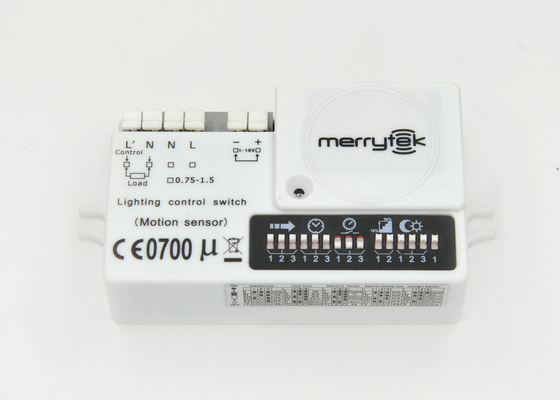

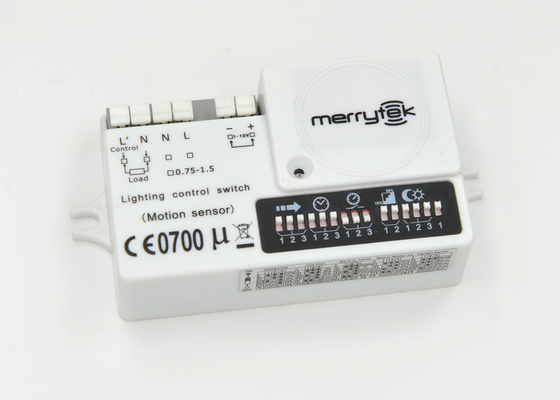

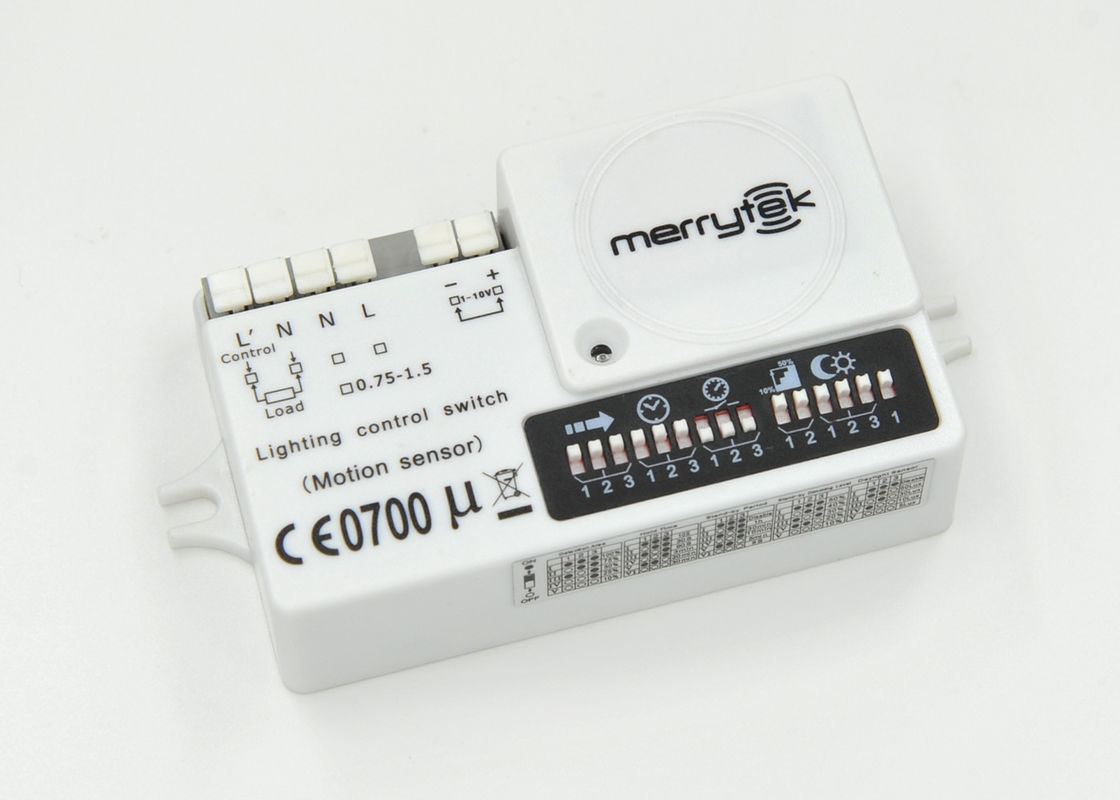

1 - 10v Microwave Motion Long Range Motion Sensor 16m For Daylight

  • 1 - 10v Microwave Motion Long Range Motion Sensor 16m For Daylight
  • 1 - 10v Microwave Motion Long Range Motion Sensor 16m For Daylight
  • 1 - 10v Microwave Motion Long Range Motion Sensor 16m For Daylight
Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC003V
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Approval CE & R&TTE Product Name Microwave Motion Sensor
Operation Temperature -35℃~70℃ Function 2 Step /3 Step Dimming
IP Rating IP20 Rated Load 800w(Inductive) 1200w(Resistive)
Operating Voltage 220~240Vac,50HZ/60Hz Detection Zone Max(D×H):16m×8m
HF System 5.8GHz ±75MHz, ISM Wave Band Size 92x52x 25.5 Mm
High Light

microwave sensors for lighting

,

rf motion sensor

,

Microwave Long Range Motion Sensor
Leave a Message
Product Description

MC003V Microwave Motion Sensor Corridor Function 1 - 10v Dimming  Detection Range 16m





Description:

MC003V is a innocative motion sensor built in motion sensor and daylight sensor ,perfect solution for on-off and dimming funciton .it adopt switch power ,no affect the power factor of main circuit ,with 1-10v interface can match Merrytek MS01 to achieve daylight harvesting .



Features:

1.  Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.

2. Built-in adjustable daylight sensor.

3. 1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.

4. 4-pole press-in terminal (L,N,N,L′),easy assembly.

5. Compact size makes it suitable to fix within most luminaries

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Wide detection area, range up to 16m in diameter.



Function

3 -step dimming function

1 - 10v Microwave Motion Long Range Motion Sensor 16m For Daylight 0

2- Step dimming function

1 - 10v Microwave Motion Long Range Motion Sensor 16m For Daylight 1





1 - 10v Microwave Motion Long Range Motion Sensor 16m For Daylight 2





Specifications

Operating voltage

220-240Vac, 50Hz



Rated load

800W(inductive), 1200W (resistive)



HF system

5.8GHz±75MHz, ISM wave band



Power consumption

≤0.5W(standby), <1W(operation)



Transmitting power

<0.5mW



Detection zone Max.(D x H)

16m x 8m



Motion detection

0.5~3m/s



Detection angle

150°(wall installation) 360°(ceiling installation)



IP rating

IP20



Operation  Temperature

 -35℃~70℃



Hold time

10s/30s/90s/3min/20min/30min



Detection sensitivity

10% / 25% / 50% / 75% / 100%



Daylight sensor

5lux / 15lux / 30lux / 50lux / Disable



Stand-by period

5s / 5min / 10min / 30min / 1h / Disable



Stand-by dimming level

10% / 20% / 30% / 40% / 50%



Life time

50,000 hours

Guaranty

5 years



Wiring :

1 - 10v Microwave Motion Long Range Motion Sensor 16m For Daylight 3

Applications:

Stairwell, corridor, balcony, pathway, washroom, kitchen, gas stations, parking lot , warehouse ,etc
