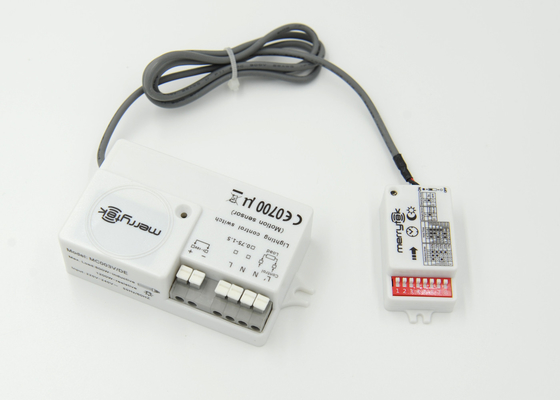

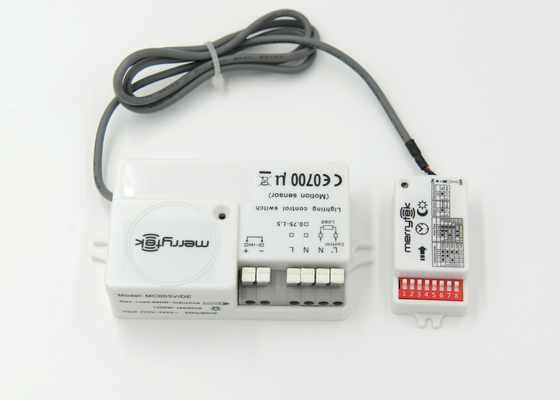

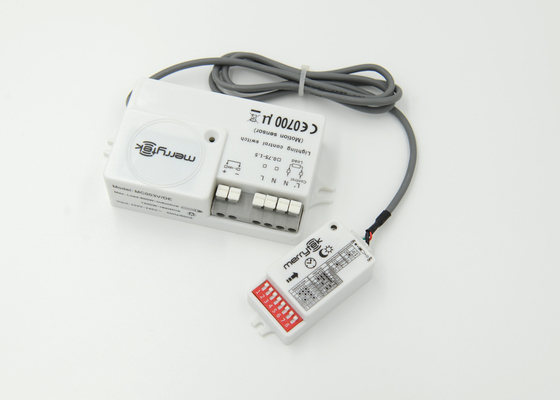

800W 5.8G Lux Control Microwave Motion Sensor for Gas Station Lighting

Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number MC003V DE
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Rated Load 800w(Inductive) 1200w(Resistive)
Operating Voltage 220~240Vac,50HZ/60Hz Detection Zone Max(D×H):16m×8m
HF System 5.8GHz ±75MHz, ISM Wave Band Size 92x52x 25.5 Mm
Approvals CE & R&TTE Operation Temperature -35℃~70℃
Function 2step /3 Step Dimming IP Rating IP20
High Light

microwave sensors for lighting

,

floodlight motion sensor

,

Lux Control Microwave Motion Sensor

Leave a Message
Product Description

800W 5.8G Lux Control Microwave Motion Sensor for Gas Station Lighting





Description

1. Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.

2. Built-in daylight sensor to achieve daylight harvesting, automatically adjust lumens

of artificial light according to natural light.

3.  4-pole press-in terminal (L,N,N,L′),easy assembly.

4. Compact size makes it suitable to fix within most luminaries

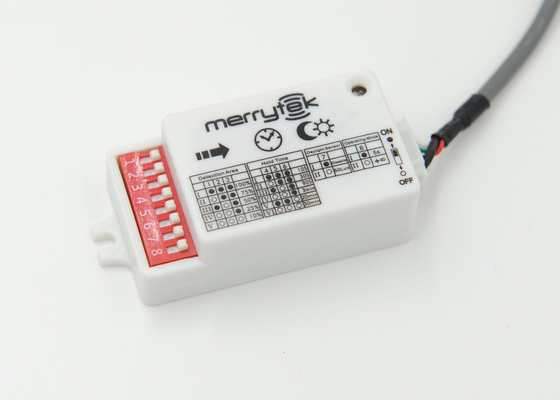

5. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

6. Wide detection area, range up to 16m in diameter.





Specifications:

Operating Voltage

220-240Vac, 50Hz



Rated Load

800W(inductive), 1200W (resistive)



HF System

5.8GHz±75MHz, ISM wave band



Power Consumption

≤0.5W(standby), <1W(operation)



Transmitting power

<0.5mW



Detection zone Max.(D x H)

16m x 8m



Motion detection

0.5~3m/s



Detection angle

150°(wall installation) 360°(ceiling installation)



IP rating

 IP20



Operation  Temperature

-35℃~70℃



Hold time

10s/30s/90s/3min/20min/30min



Detection sensitivity

10% / 25% / 50% / 75% / 100%



Daylight sensor

5lux / 15lux / 30lux / 50lux / Disable



Stand-by period

5s / 5min / 10min / 30min / 1h / Disable



Stand-by dimming level

10% / 20% / 30% / 40% / 50%



Life time

50,000 hours

Guaranty

5 years



Applications:

Stairwell, corridor, balcony ,pathway ,washroom ,kitchen ,Subway, gas stations, parking lot , warehouse ,etc



Function :

On-off function

800W 5.8G Lux Control Microwave Motion Sensor for Gas Station Lighting 0



Dim Function :

800W 5.8G Lux Control Microwave Motion Sensor for Gas Station Lighting 1



Daylight harvesting :

800W 5.8G Lux Control Microwave Motion Sensor for Gas Station Lighting 2

800W 5.8G Lux Control Microwave Motion Sensor for Gas Station Lighting 3

800W 5.8G Lux Control Microwave Motion Sensor for Gas Station Lighting 4





800W 5.8G Lux Control Microwave Motion Sensor for Gas Station Lighting 5
