IP 20 Temperature Control Microwave Motion Sensor With Automatic Switch

  • IP 20 Temperature Control Microwave Motion Sensor With Automatic Switch
  • IP 20 Temperature Control Microwave Motion Sensor With Automatic Switch
Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC008S T
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operation Temperature -20℃~60℃ Product Name Microwave Motion Sensor
Function On-off Control IP Rating IP 20
Rated Load 400W (inductive), 1000W (resistive) Operating Voltage 220-240Vac,50HZ
Detection Max(D×H):12m×3m HF System 5.8GHz ±75MHz, ISM Wave Band
Size (L×W×H) 82x36.5x 25.5 Mm Approval CE , R&TTE
High Light

rf motion sensor

,

floodlight motion sensor

,

Temperature Control Microwave Motion Sensor
Leave a Message
Product Description

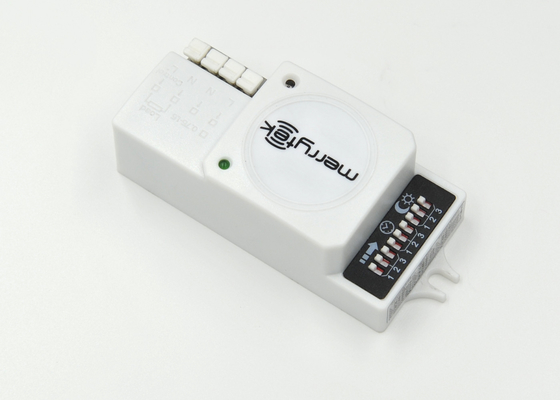

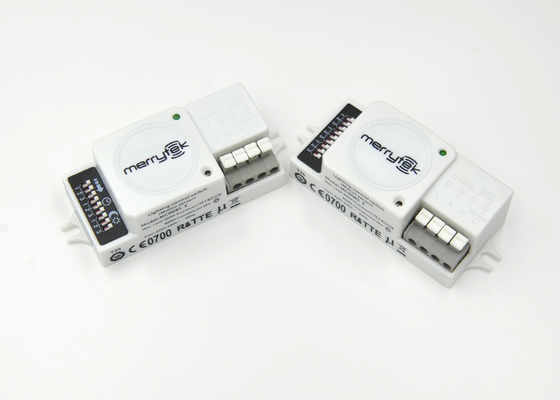

Temperature Control Microwave Motion Sensor Switch Automatic





Description

1. Automatic switching based on motion and ambient light level.

2. Zero-crossing point operation helps protect the sensor against in-rush current.

3.  5.8GHz high frequency microwave(C-Band license-free operation)

4. 4-pole press-in terminal (L, N, N,L′),easy assembly.

5. Detection area, time delay and Temperature threshold can be precisely set via DIP switch.

6. MC008S T is a innovation motion sensor to switch on off based on movement and Temperature .offer the end user a comfortable service .





Function:

ON-OFF function





Specifications:



Operating voltage

220-240Vac, 50Hz

Rated load

Inductive:400W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 3m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

10S/60S/90S/3min/5min/10min

Detection sensitivity

10%/25%/50%/75%/100%

Temperature

22℃±2℃,24℃±2℃,26℃±2℃,28℃±2℃

Life time

30,000 hours

Guaranty

3 years



Applications:

Washroom , etc
