| Place of Origin: | China |
|---|---|
| Brand Name: | Merrytek |
| Certification: | CE & R&TTE |
| Model Number: | MC008S 1 |
| Minimum Order Quantity: | Stop production, not available. |
| Price: | Negotiation |
| Packaging Details: | Packed in bubble bags firstly, and then reinforced with carton for outer packing |
| Delivery Time: | 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20,000pcs per Month |
| Size (L×W×H): | 82x36.5x 25.5 Mm | Product Name: | Microwave Motion Sensor |
|---|---|---|---|
| Approval: | CE , R&TTE | Operation Temperature: | -20℃~60℃ |
| Output: | P .P1 | Function: | On-off Control |
| Operating Voltage: | 220-240Vac,50HZ | IP Rating: | IP 20 |
| Detection: | Max(D×H):12m×6m | HF System: | 5.8GHz ±75MHz, ISM Wave Band |
| High Light: | rf motion sensor,floodlight motion sensor,High Voltage Dry Contact Detector |
||

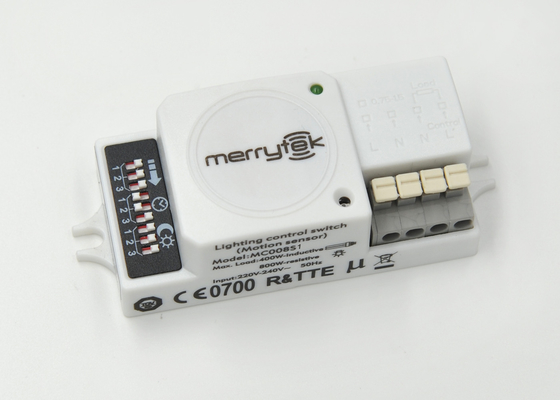

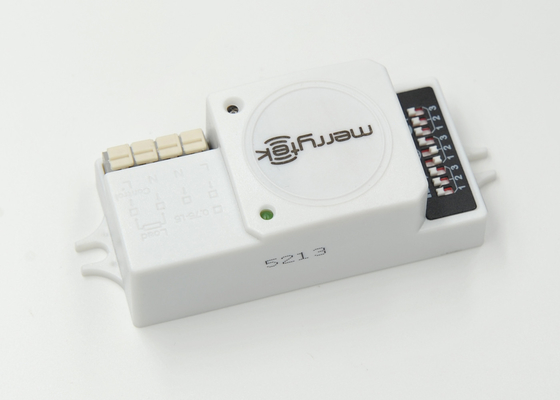

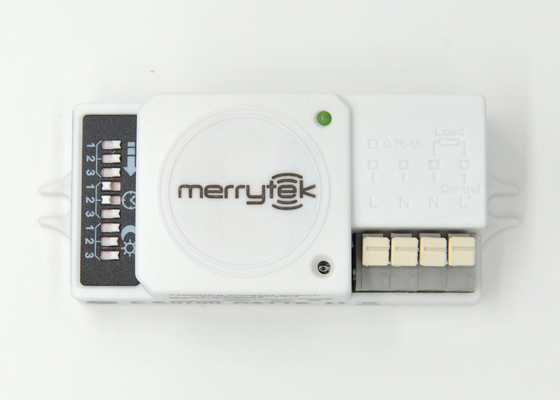

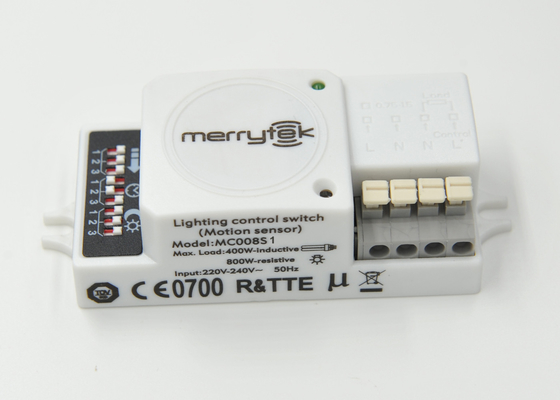

Dry Contact Detector / Microwave Motion Sensors With High Voltage
Description
1. Automatic switching based on motion and ambient light level.
2. Dry Contact detector works in normally close and normally open mode
3. With high voltage input 220-240v AC input.
4. 5.8GHz high frequency microwave(C-Band license-free operation)
5. 4-pole press-in terminal (L, N, N,L′),easy assembly.
6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
7. MC008S 1 supplies dry contacts in normally closed mode and normally open mode .Dry contact means open or close contact without any current or voltage .It is perfect for the application where requires isolation between motion signal and power supply.
Function:
ON-OFF function
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-20℃~60℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
25％/50％/75％/100％ |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
