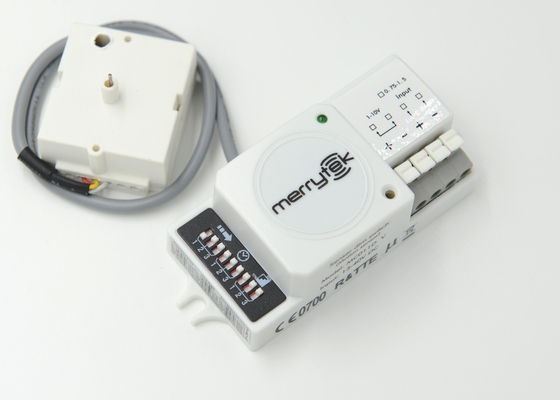

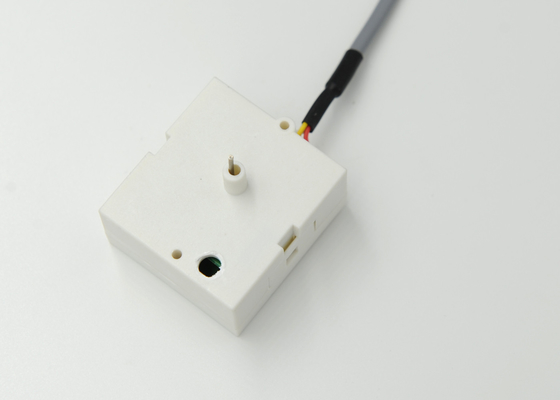

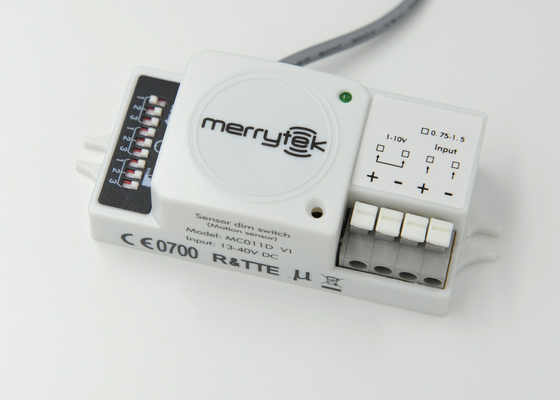

13-40Vdc Dimmable Motion Sensor MC011DV Dimming function for Trailing Edge Led Dimmer

  • 13-40Vdc Dimmable Motion Sensor MC011DV Dimming function for Trailing Edge Led Dimmer
  • 13-40Vdc Dimmable Motion Sensor MC011DV Dimming function for Trailing Edge Led Dimmer
  • 13-40Vdc Dimmable Motion Sensor MC011DV Dimming function for Trailing Edge Led Dimmer
Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number MC011DV
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Max(D×H):16m×8m Product Name Microwave Motion Sensor
HF System 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H) 82x36.5x 25.5 Mm
Dimming Mode 1-10V Approvals CE & R&TTE
Operating Voltage 13-40Vdc Operation Temperature -35℃~75℃
Function 2 Step Dimming IP Rating IP20
High Light

high frequency sensor

,

motion detection sensor

,

DC Dimmable Motion Sensor
Leave a Message
Product Description

13-40Vdc Operating Motion Sensor MC011DV Dimming function for  Trailing Edge Led Dimmer



Description

MC011DV is special DC operation version sensor, it must be matched with constant voltage 1-10V driver to get dimming function.



The sensor adopts a unique gradual dimming mode. Slowly and softly dimming supply the comfortable vision for users.



Feature:

1. Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.

2. Built-in adjustable daylight sensor.

3. 1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.

4. 4-pole press-in terminal (L,N,N,L′),easy assembly.

5. Compact size makes it suitable to fix within most luminaries

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Wide detection area, range up to 16m in diameter.



Product Information

13-40Vdc Dimmable Motion Sensor MC011DV Dimming function for Trailing Edge Led Dimmer 0

13-40Vdc Dimmable Motion Sensor MC011DV Dimming function for Trailing Edge Led Dimmer 1



Function:

2- Step dimming function

13-40Vdc Dimmable Motion Sensor MC011DV Dimming function for Trailing Edge Led Dimmer 2



Wiring





Specifications:

Operating voltage

DC 13-40V

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 8m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-35℃~70℃

Hold time

10s/30S/90s/3min/20min/30min

Detection sensitivity

10% /25%/50%/75%/100%

Dimming level

10%/20%/30%/40%/50%

Life time

50000 hours

Guaranty

5 years



Detection Pattern

13-40Vdc Dimmable Motion Sensor MC011DV Dimming function for Trailing Edge Led Dimmer 3

Applications:

Stairwell, corridor, balcony, pathway, et
