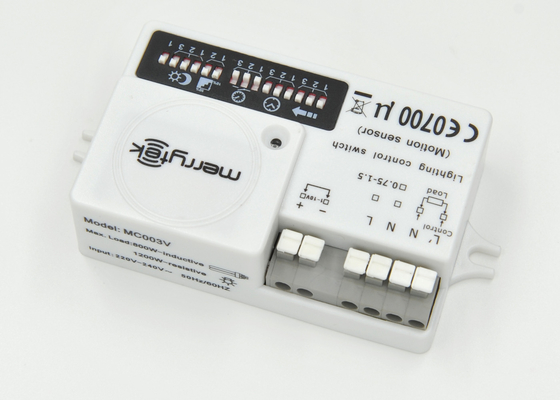

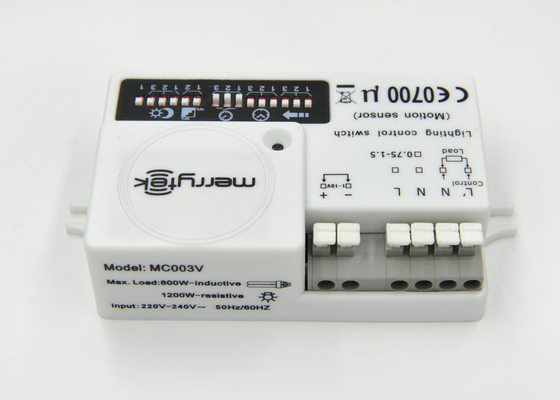

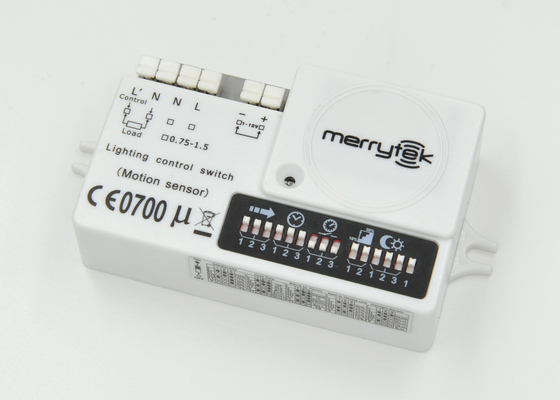

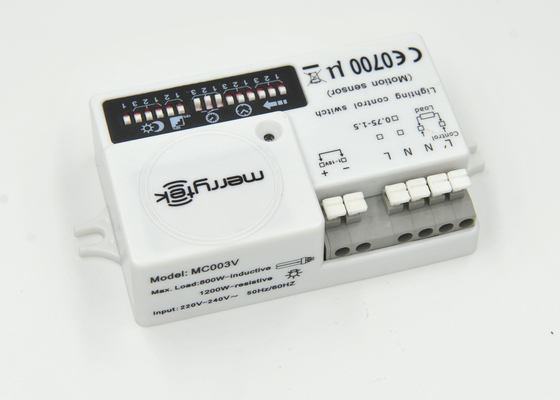

Waterproof Dimmable Motion Sensor With Leading Edge Dimmer Switch

Basic Information
Place of Origin: China
Brand Name: Merrytek
Certification: CE & R&TTE
Model Number: MC003V R
Minimum Order Quantity: Stop production, not available.
Price: negotiation
Packaging Details: Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time: 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20,000pcs per Month
Detail Information
Product Name: Microwave Motion Sensor Rated Load: 800w(Inductive) 1200w(Resistive)
Operating Voltage: 220~240Vac,50HZ/60Hz Detection Zone: Max(D×H):16m×12m
HF System: 5.8GHz ±75MHz, ISM Wave Band Size: 92x52x 25.5 Mm
Approval: CE & R&TTE Operation Temperature: -35℃~70℃
Function: 2 Step /3 Step Dimming IP Rating: IP20
High Light:

indoor light motion sensor


motion detection sensor


Waterproof Dimmable Motion Sensor

Product Description


Waterproof 1-10v Dimmable Motion Sensor Leading Edge Dimmer Switch





  •   Combined with with 1-10V dimmable LED drivers or ballasts ,this sensor can automatic switch on/off and dimming .
  •   1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
  •   Built-in adjustable daylight sensor.
  •   Easy assembly.4-pole press-in terminal (L,N,N,L′),
  •   Compact size makes it suitable to fix within most luminaries
  •   Detection area, time delay and daylight threshold can be precisely set via DIP switch.
  •   Wide detection area, range up to 16m in diameter.
  •   MC003V R is a innovative and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials. Mostly ,it with the higher mounting height 12m Max ,perfect for huge warehouse application .





Operating voltage

220-240Vac, 50Hz


Rated load

800W(inductive), 1200W (resistive)


HF system

5.8GHz±75MHz, ISM wave band


Power consumption

≤0.5W(standby), <1W(operation)


Transmitting power



Detection zone Max.(D x H)

16m x 12m


Motion detection



Detection angle

150°(wall installation) 360°(ceiling installation)


IP rating



Operation  Temperature



Hold time



Detection sensitivity

10% / 25% / 50% / 75% / 100%


Daylight sensor

5lux / 15lux / 30lux / 50lux / Disable


Stand-by period

5s / 5min / 10min / 30min / 1h / Disable


Stand-by dimming level

10% / 20% / 30% / 40% / 50%


Life time

50,000 hours


5 years






Thanks to 12m mounting height ,this sensor is suitable for huge warehouse with big range application .
