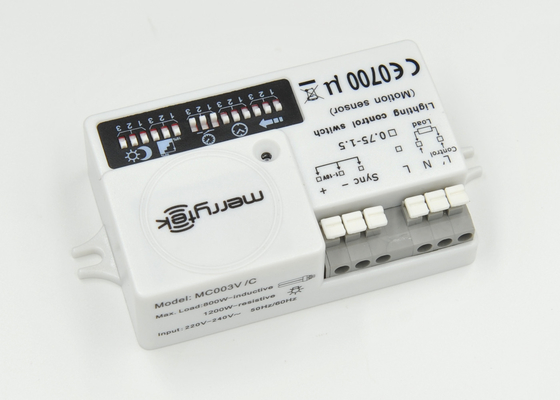

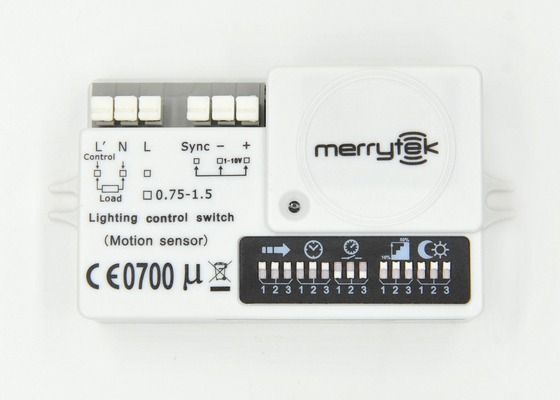

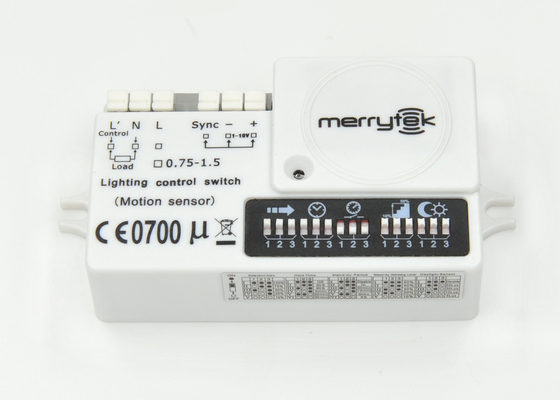

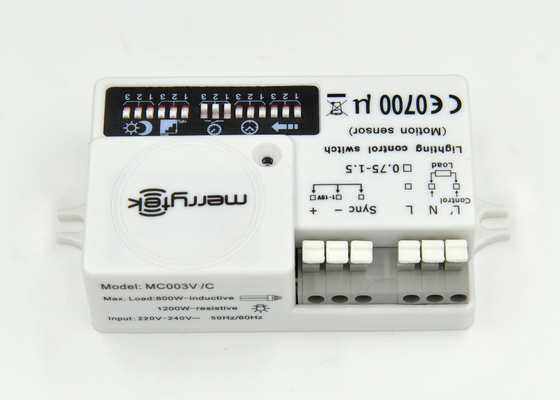

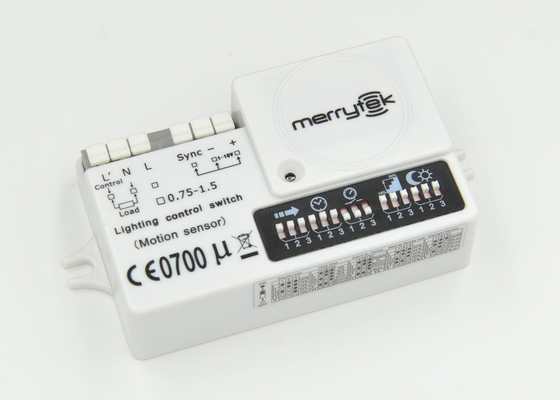

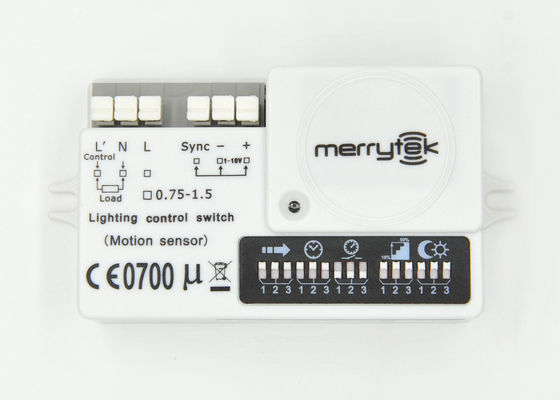

800W 220-240Vac Input 1-10V Cluster Control Motion Sensor With Plastic Housing
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE & R&TTE |
| Model Number | MC003V/C |
| Minimum Order Quantity | Stop production, not available. |
| Price | negotiation |
| Packaging Details | Packed in bubble bags firstly, and then reinforced with carton or outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20,000pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Microwave Motion Sensor | Function | 3 Step Dim,cluster Control |
|---|---|---|---|
| Rated Load | 800w(Inductive) 1200w(Resistive) | IP Rating | IP20 |
| Operating Voltage | 220~240Vac,50HZ/60Hz | Detection Zone | Max(D×H):16m×8m |
| HF System | 5.8GHz ±75MHz, ISM Wave Band | Size | 92x52x 25.5 Mm |
| Approval | CE & R&TTE | Operation Temperature | -35℃~70℃ |
| High Light | flush mount motion sensor,long range motion sensor,Plastic Housing Cluster Control Motion Sensor |
||
Product Description
800W 220-240Vac Input 1-10V Cluster Control Microwave Motion Sensor MC003V/ C Plastic Housing With CE and R&TTE approval
Description:
Basically, MC003V/C has the same technical parameters and function as MC003V, with an extra function, cluster-control.
In many lighting places, several sensors are connected to a group of lamps. People need functions that trigger one of sensors to make the group of lamps to switch on / off or dim simultaneously. This is called 'cluster control'. MC003V/C is specially designed for the function. The SYNC interface in the sensor can transmit motion signal to other sensors connected together, and then achieve cluster control function.
Feature:
1. Automatic switching based on motion and ambient light level.
2. Built-in daylight sensor.
3. Unique design for cluster control ,with group working .
4. 1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
5. Zero-crossing point operation helps protect the sensor against in-rush current.
6. 5.8GHz high frequency microwave(C-Band license-free operation)
7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8. MC003V/C is an innovative and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials. Basically, MC003V/C has the same technical parameters and function as MC003V, with an extra function, cluster control.
9. In many lighting places, several sensors are connected to a group of lamps. People need functions that trigger one of sensors to make the group of lamps to switch on / off or dim simultaneously. This is called 'cluster control'.
10. MC003V/C is specially designed for the function. The SYNC interface in the sensor can transmit motion signal to other sensors connected together, and then achieve cluster control function.
Product Information:
Dimming function:
3-step dimming function
Wiring:
2-step dimming funciton
Wiring:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
Inductive :800W, Resistive : 1200W |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 8m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-35℃~70℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
25%/50%/75%/100% |
|
Stand-by period |
5s / 5min / 10min / 30min / 1h / Disable |
|
Stand-by dimming level |
10% / 20% / 30% / 40% / 50% |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Detection Pattern
Applications:
Stairwell, corridor, balcony,patchway, etc.
