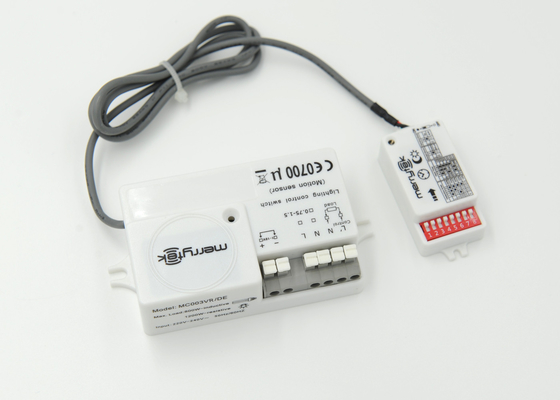

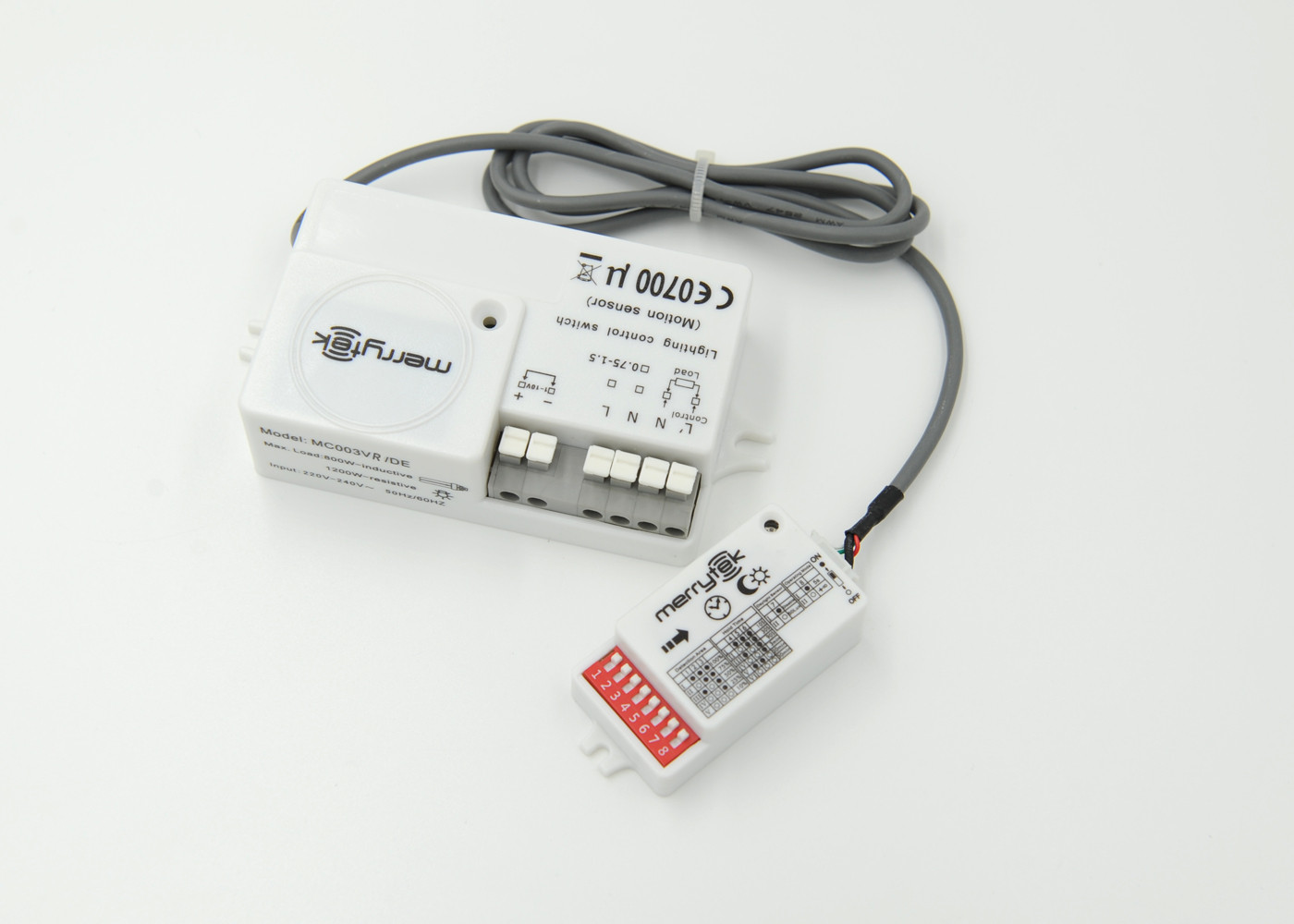

1 - 10v Microwave Motion Dimmable Motion Sensor , Motion Detection Sensor

  • 1 - 10v Microwave Motion Dimmable Motion Sensor , Motion Detection Sensor
  • 1 - 10v Microwave Motion Dimmable Motion Sensor , Motion Detection Sensor
  • 1 - 10v Microwave Motion Dimmable Motion Sensor , Motion Detection Sensor
  • 1 - 10v Microwave Motion Dimmable Motion Sensor , Motion Detection Sensor
Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC003V R DE
Minimum Order Quantity Stop production, not available.
Price negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensorr Rated Load 800w(Inductive) 1200w(Resistive)
Operating Voltage 220~240Vac,50HZ/60Hz Transmitting Distance E Max(D×H):16m×12m
HF System 5.8GHz ±75MHz, ISM Wave Band Size 92x52x 25.5 Mm
Approval CE & R&TTE Operation Temperature -35℃~70℃
Operating Principle 2 Step /3 Step Dimming IP Rating IP20
High Light

indoor light motion sensor

,

high frequency sensor

,

Dimmable Motion Detection Sensor
Leave a Message
Product Description



1 - 10v Dimming Microwave Motion Sensor , Motion Detection Sensor





Description:

  •   12M mounting height for huge space application .
  •   Attachable version ,wish mini sensor detector .
  •   Built-in adjustable daylight sensor.
  •   Lux Control motion sensor .will switch off the light when with sufficient ambient light level .
  •   Automatic switch on - off and dimming based on motion and ambient light level .
  •   1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
  •   4-pole press-in terminal (L,N,N,L′),easy assembly.
  •   Compact size makes it suitable to fix within most luminaries

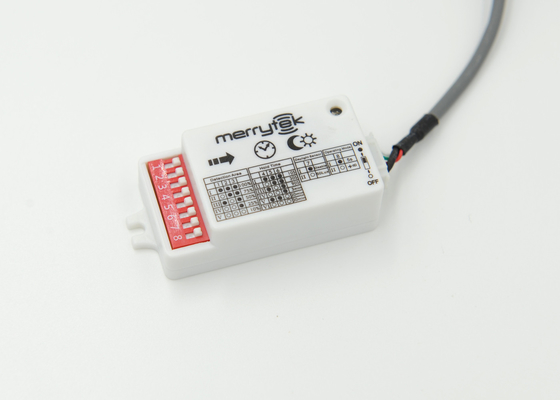

  •   Detection area, time delay and daylight threshold can be precisely set via DIP switch.
  •   Wide detection area, range up to 16m in diameter.
  •   The sensors allow energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.



Specifications:



Operating voltage

220-240Vac, 50Hz



Rated load

800W(inductive), 1200W (resistive)



HF system

5.8GHz±75MHz, ISM wave band



Power consumption

≤0.5W(standby), <1W(operation)



Transmitting power

<0.5mW



Detection zone Max.(D x H)

16m x 12m



Motion detection

0.5~3m/s



Detection angle

150°(wall installation) 360°(ceiling installation)



IP rating

IP20



Operation  Temperature

 -35℃~70℃



Hold time

10s/30s/90s/3min/20min/30min



Detection sensitivity

10% / 25% / 50% / 75% / 100%



Daylight sensor

5lux / 15lux / 30lux / 50lux / Disable



Stand-by period

5s / 5min / 10min / 30min / 1h / Disable



Stand-by dimming level

10% / 20% / 30% / 40% / 50%



Life time

50,000 hours

Guaranty

5 years





Applications:



Stairwell, Corridor, Gas Stations, Parking lot , Warehouse ,etc
