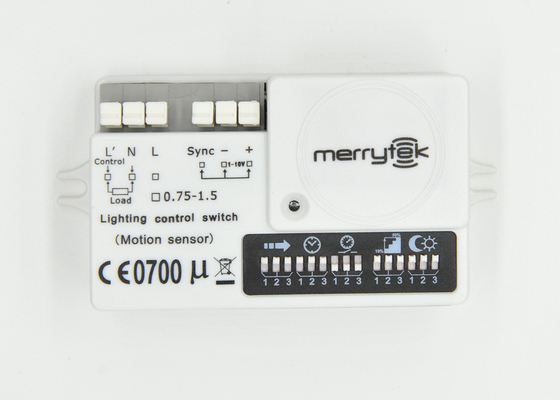

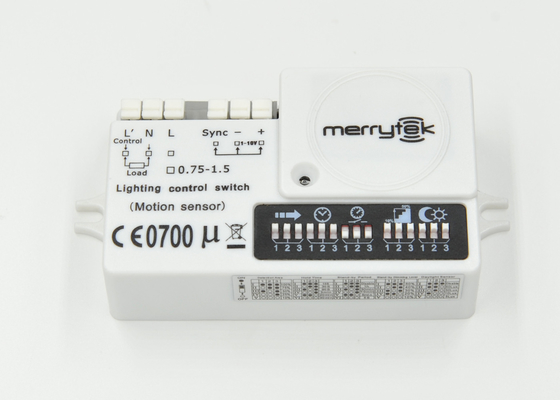

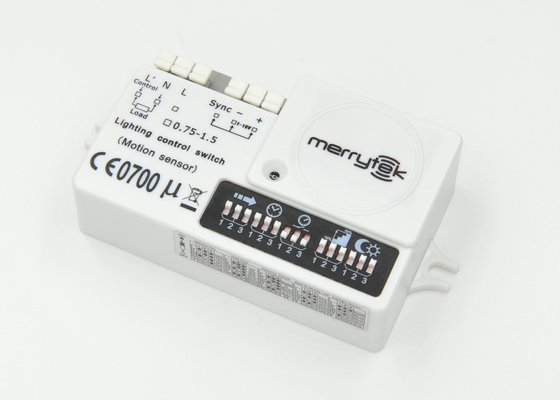

Outdoor Dimmable Motion Sensor , Motion Light Sensor For Pathway Light

  • Outdoor Dimmable Motion Sensor , Motion Light Sensor For Pathway Light
  • Outdoor Dimmable Motion Sensor , Motion Light Sensor For Pathway Light
  • Outdoor Dimmable Motion Sensor , Motion Light Sensor For Pathway Light
  • Outdoor Dimmable Motion Sensor , Motion Light Sensor For Pathway Light
Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC003V R C
Minimum Order Quantity Stop production, not available.
Price negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensorr Rated Load 800w(Inductive) 1200w(Resistive)
Operating Voltage 220~240Vac,50HZ/60Hz Transmitting Distance E Max(D×H):16m×12m
HF System 5.8GHz ±75MHz, ISM Wave Band Size 92x52x 25.5 Mm
Approval CE & R&TTE Operation Temperature -35℃~70℃
Operating Principle 3 Step Dim ,cluster Control IP Rating IP20
High Light

high frequency sensor

,

motion detection sensor

,

Dimmable Motion Sensor For Pathway Light
Leave a Message
Product Description



IP20 0-10V Dimmable Motion Sensor Motion Light Sensor For Pathway Light







Description:

  •   Built-in daylight sensor.
  •   Unique design ,suitable for 12m Mounting height application .
  •   Automatic switching based on motion and ambient light level.
  •   1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
  •   Zero-crossing point operation helps protect the sensor against in-rush current.
  •   5.8GHz high frequency microwave(C-Band license-free operation)
  •   Detection area, time delay and daylight threshold can be precisely set via DIP switch.
  •   MC003V R /C is an innovative and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials. Basically, MC003V R /C has the same technical parameters and function as MC003V, with an extra function, cluster control.
  •   In many lighting places, several sensors are connected to a group of lamps. People need functions that trigger one of sensors to make the group of lamps to switch on / off or dim simultaneously. This is called 'cluster control'.
  •   MC003V R /C is specially designed for the function. The SYNC interface in the sensor can transmit motion signal to other sensors connected together, and then achieve cluster control function.



Specifications:



Operating voltage

220-240Vac, 50Hz

Rated load

Inductive :800W, Resistive : 1200W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 12m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

25％/50％/75％/100％

Stand-by period

5s / 5min / 10min / 30min / 1h / Disable

Stand-by dimming level

10% / 20% / 30% / 40% / 50%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years





Applications:



Stairwell, Corridor, Balcony, Pathway, etc
