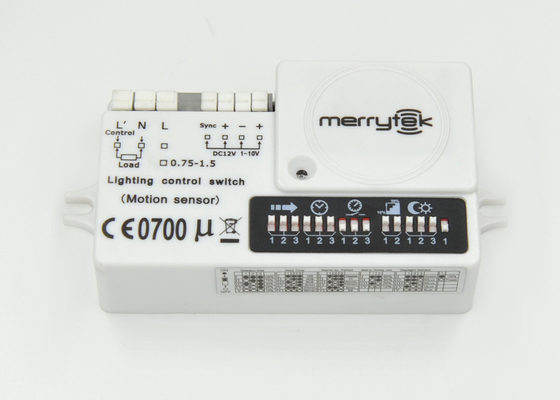

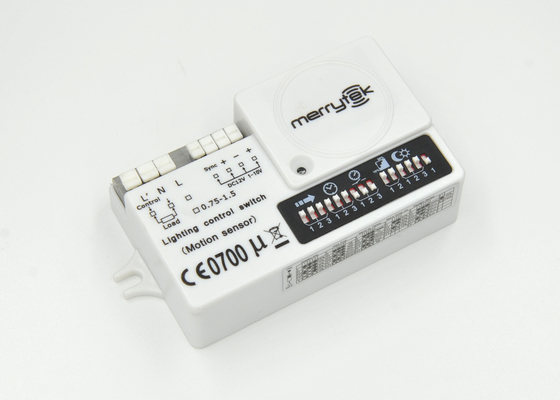

220V - 240V AC Wireless Dimmable 5.8GHz HF Motion Sensor With IP20

  • 220V - 240V AC Wireless Dimmable 5.8GHz HF Motion Sensor With IP20
  • 220V - 240V AC Wireless Dimmable 5.8GHz HF Motion Sensor With IP20
  • 220V - 240V AC Wireless Dimmable 5.8GHz HF Motion Sensor With IP20
Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC003V R - CP
Minimum Order Quantity Stop production, not available.
Price negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensorr Rated Load 800w(Inductive) 1200w(Resistive)
Operating Voltage 220~240Vac,50HZ/60Hz Transmitting Distance E Max(D×H):16m×12m
HF System 5.8GHz ±75MHz, ISM Wave Band Size 92x52x 25.5 Mm
Approval CE & R&TTE Operation Temperature -35℃~70℃
Operating Principle Dim Function ,RF Wireless Networking Control IP Rating IP20
High Light

indoor light motion sensor

,

motion detection sensor

,

Wireless Dimmable HF Motion Sensor
Leave a Message
Product Description



220V - 240V AC Dimmable 5.8GHz Hf Motion Sensor With IP20





Description:

  •   Used in wireless networking of luminaires ,easy to install and free of wire .
  •   Unique design suitable for 12m mounting height application .
  •   With advanced code detection technology, no code missing.
  •   Automatic switching based on motion and ambient light level.
  •   Zero-crossing point operation helps protect the sensor against in-rush current.
  •   5.8GHz high frequency microwave(C-Band license-free operation)
  •   4-pole press-in terminal (L, N, N,L′),easy assembly.
  •   Detection area, time delay and daylight threshold can be precisely set via DIP switch.
  •   MC003V R -CP is innovative and active motion detector with HF system 5.8GHz .Motion can be detected through plastic ,glass and thin non-metal materials .Merrytek takes the lead in using the rotary coding switch in RF transceiver ,very easy to create groups





Specifications:





Operating voltage

220-240Vac, 50Hz

Rated load

800W(inductive), 1200W(resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 12m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

25％/50％/75％/100％

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years







Applications:



Stairwell, Corridor, Car parking , etc
