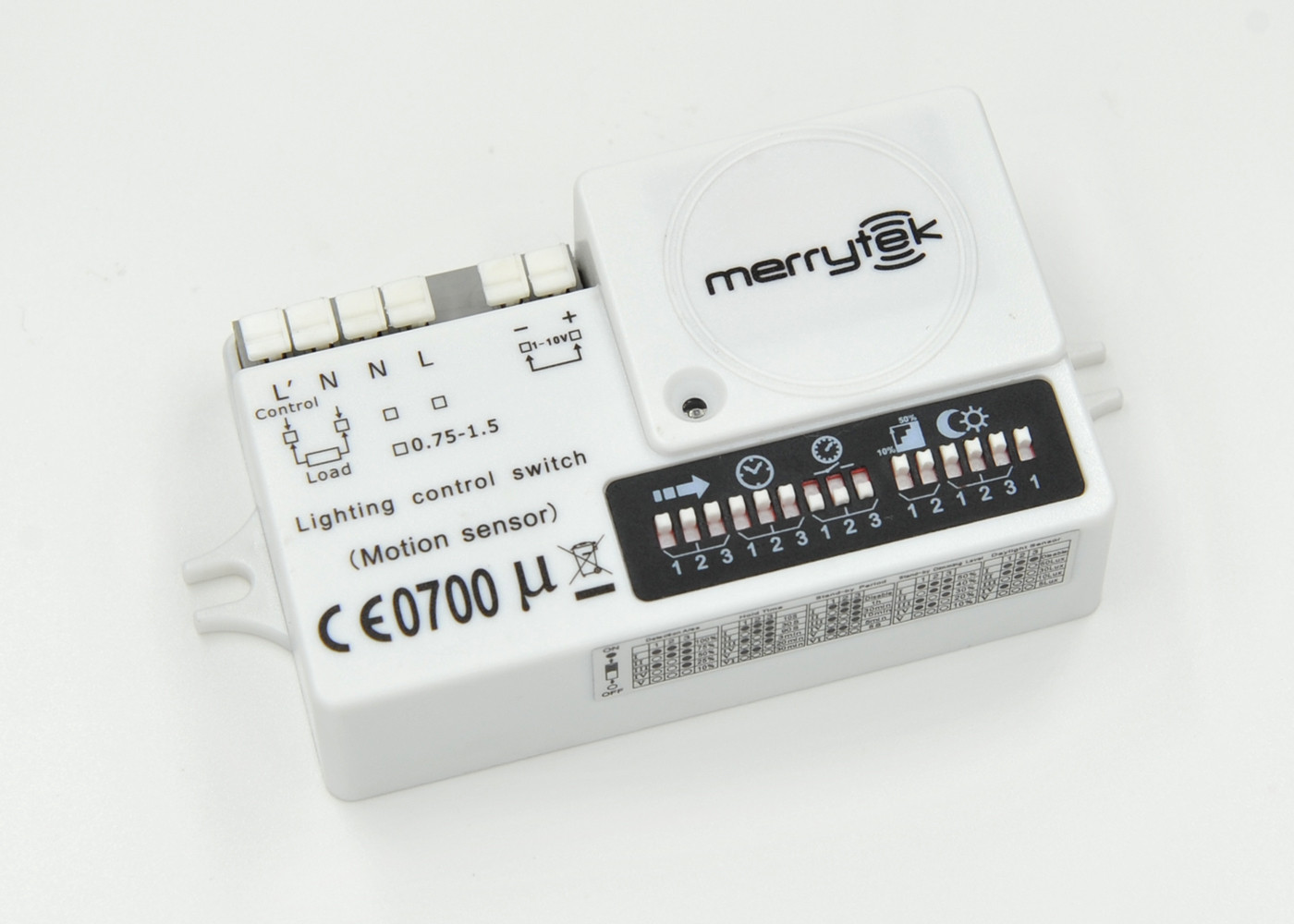

Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer

Basic Information
Place of Origin: China
Brand Name: Merrytek
Certification: CE & R&TTE
Model Number: MC003V
Minimum Order Quantity: Stop production, not available.
Price: negotiation
Packaging Details: Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time: 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20,000pcs per Month
Detail Information
Product Name: Microwave Motion Sensorr Detection Angle: 150°(wall Installation) 360°(ceiling Installation)
IP Rating: IP20 Operating Voltage: 220~240Vac,50HZ
Detection Zone: Max(D×H):16m×8m HF System: 5.8GHz ±75MHz, ISM Wave Band
Size: 92x52x 25.5 Mm Approval: CE & R&TTE
Operation Temperature: -35℃~70℃ Operating Principle: Microwave Motion Sensor
Function: 2 Step /3 Step Dimming
High Light:

high frequency sensor


motion detection sensor


Automatic Switch Dimmable Motion Sensor

Product Description

Automatic Switch Dimmable Motion Sensor LED Trailing Edge Dimmer






  •   Automatic Switch on-off and dimming based on motion and ambient light level .
  •   Built-in adjustable daylight sensor.
  •   Support max inductive load 800w .
  •   1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
  •   4-pole press-in terminal (L,N,N,L′),easy assembly.
  •   Compact size makes it suitable to fix within most luminaries
  •   Detection area, time delay and daylight threshold can be precisely set via DIP switch.
  •   Wide detection area, range up to 16m in diameter.





Operating voltage

220-240Vac, 50Hz


Rated load

800W(inductive), 1200W (resistive)


HF system

5.8GHz±75MHz, ISM wave band


Power consumption

≤0.5W(standby), <1W(operation)


Transmitting power



Detection zone Max.(D x H)

16m x 8m


Motion detection



Detection angle

150°(wall installation) 360°(ceiling installation)


IP rating



Operation  Temperature



Hold time



Detection sensitivity

10% / 25% / 50% / 75% / 100%


Daylight sensor

5lux / 15lux / 30lux / 50lux / Disable


Stand-by period

5s / 5min / 10min / 30min / 1h / Disable


Stand-by dimming level

10% / 20% / 30% / 40% / 50%


Life time

50,000 hours


5 years





Stairwell, Corridor, Balcony, Pathway, Washroom, Kitchen, Gas stations, Parking lot , Warehouse ,etc
