RF Wireless Networking Microwave 120 - 240V AC Motion Sensor 50 / 60Hz

Basic Information
Place of Origin: China
Brand Name: Merrytek
Certification: CE , R&TTE
Model Number: MC012V+MW01
Minimum Order Quantity: Stop production, not available.
Price: Negotiation
Packaging Details: Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time: 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20,000pcs per Month
Detail Information
Product Name: MC012V+MW01 Rated Load: 800w(Inductive) 1200w(Resistive)
Operating Voltage: 120-240Vac,50/60HZ(MC012V) 12VDC(MW01) Detection: Max(D×H):25m×20m(MC012V)
HF System: 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H): 121x75x 30.5mm( MC012V)
Approval: CE & R&TTE Operation Temperature: -35℃~70℃(MC012V) -20℃~70℃(MW01)
Dimming Mode: RF ,3 Step Dimming IP Rating: IP20
High Light:

wireless motion detector

,

outdoor motion sensor

,

Networking Microwave Motion Sensor


Product Description

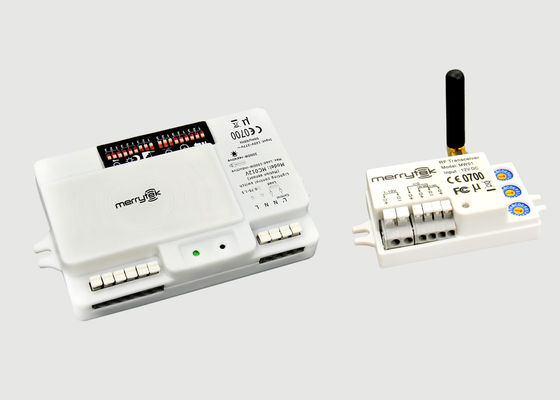

120-240V AC Operate RF Wireless Networking Microwave Motion Sensor MC012V + MW01 -35℃~70℃ IP20 CE & R&TTE Approval Street Light





Description:

  •   Used in wireless networking of luminaries, easy installation and free of wire.
  •   With fixed code, very easy to step up any-to-any communication.
  •   Particularly suitable for professional use with higher mounting height, up to 20m.
  •   Special narrow & long detection area (10m x 25m).
  •   By digital receiving and transmitting method, high anti-interference capability and no interference to an RF sensitive device, for example, electronic keys of cars.
  •   With advanced code detection technology, no code missing.
  •   Merrytek takes the lead in using the rotary coding switch in RF transceiver, very easy to create groups.
  •   MC012V is an active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.
  •   MW01 is an innovative and unique wireless transceiver with frequency range 433MHz. Due to use full digital receiving& transmitting and fixed address code for creation of groups, it has high reliability and stability.
  •   The RF module integrates advanced code check technology, significantly improved transmission reliability. Make sure exact signal transmitting and receiving, no code missing.
  •   Merrytek takes the lead in adopting the rotary coding switch to set up groups, very simple to achieve any-to-any communication.



Specifications:



MC012V:



Operating voltage

120-240Vac, 50/60Hz

Rated load

800W (inductive), 1200W(resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

Max (25*20m)

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

10%/25%/50%/75%/100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Stand-by dimming level

10%/20%/30%/50%

Stand-by period

5s/5min/10min/30min/1h/Disable

Masking time

10s /1h /2h /4h / 6h/ 8h

Life time

50,000 hours

Guaranty

5 years





MW01:



Operating voltage

12VDC

Transmitting power

≤20mW

Frequency range

433MHz

Standby-power

<0.3W

Operating principle

Radio transmission

Transmission distance

Max:100m in the free field

Max:30m inside buildings

Operating temperature

-20℃~70℃

IP rating

IP20







Applications:



MC012V is a sensor detector ,while MW01 is an innovative and unique wireless transceiver ,MC012V+ MW01 is special for Street light application .
