1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height

  • 1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
  • 1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
  • 1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
  • 1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number MC003V R - CP
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Guaranty 5 Years Product Name Microwave Motion Sensor
HF System 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H) 92x52x 25.5mm(
Approval CE & R&TTE Mounting Height 12m Max
Operation Temperature -35℃~70℃ Input Voltage 220-240Vac,50HZ
Function Dim Function ,RF Wireless Networking Control IP Rating IP20
High Light

dimming motion sensor

,

outdoor motion sensor

,

Dimming Wireless Motion Sensor
Leave a Message
Product Description

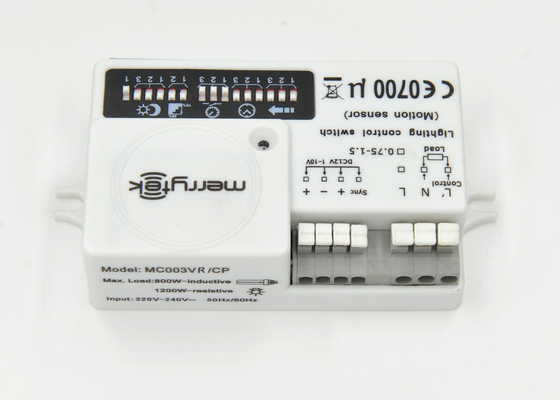

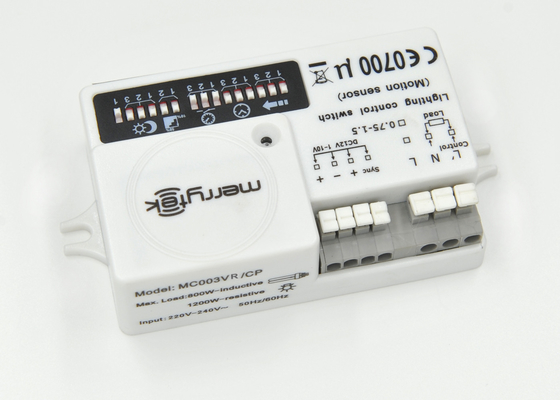

1-10v Dimming Wireless Motion Sensor for Lighting , 12m Mounting Height





Description:

  •   Special for RF wireless networking ,free of wiring ,easy to installation .
  •   Max can be created 16 groups for working .
  •   Patented products ,unique design .
  •   Suitable for 12m mounting height application .
  •   With advanced code detection technology, no code missing.
  •   Automatic switching based on motion and ambient light level.
  •   Zero-crossing point operation helps protect the sensor against in-rush current.
  •   5.8GHz high frequency microwave(C-Band license-free operation)
  •   4-pole press-in terminal (L, N, N,L′),easy assembly.
  •   Detection area, time delay and daylight threshold can be precisely set via DIP switch.
  •   MC003V R -CP is innovative and active motion detector with HF system 5.8GHz .Motion can be detected through plastic ,glass and thin non-metal materials .Merrytek takes the lead in using the rotary coding switch in RF transceiver ,very easy to create groups

Function :



Any-to-any communication



Specifications:



Operating voltage

220-240Vac, 50Hz

Rated load

800W(inductive), 1200W(resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 12m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

25％/50％/75％/100％

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years







Applications:



Thanks to RF wireless networking, this products is special for corridor application, with Max energy and comfortable experience .
