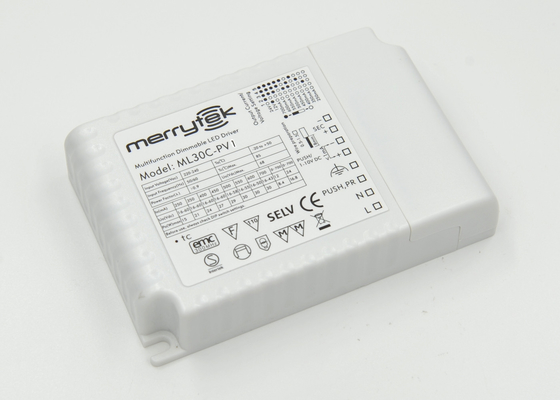

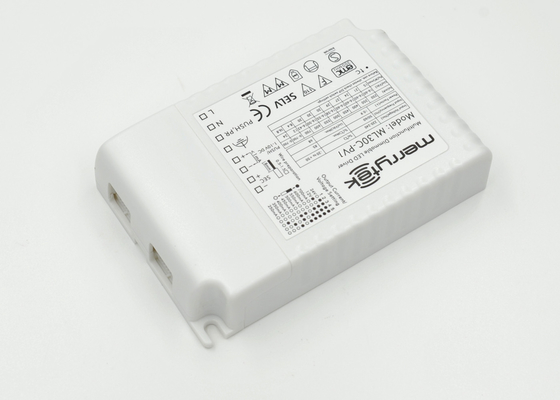

Multi - Output Current / Voltage 0-10v Dimming LED Driver SEMKO Approved

LED Dimming Driver / Dimming LED Driver 1 - 10V SEMKO Approved

Description:

1, Quality press-in type terminals in primary and secondary side, easy to assemble.

2, Multi-output current and voltage is suitable for different LED lights. Output current from 250mA to 700mA can be selected by DIP switches. And, it supplies 12Vdc / 24Vdc output voltage for LED strip

light use.

3, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required.

4, Three types of dimming mode, PUSH in primary, PUSH dimming in secondary and 1-10V dimming.

You can select dimming modes per jumper

5, Memory function: The driver has built-in permanent memory against power failure. Lights can return

to previous dimming level when switch off and on again, even at mains restores.

6, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the

same switch. This means there is no need for any additional synchrony wire in larger installations,

where many drivers should be controlled by one switch.

7, Maximum length of the cable, from switch to last driver is 20m.

8, Factory setting: 100% dimming level and 250mA output.

9, Reset the LED diver easily by a jumper.

10, Protection: Short circuit / Over voltage / Over temperature.

11, 5 years guaranty

Applications:

For LED down light, LED panel light, led strip, led tube etc…

Dimming Operation:

A) PUSH Dim

Short push (<0.1sec): Ignore, to avoid reaction on AC spike.

Short push (0.1~1sec): Switch on or switch off.

Long push (>1sec): Dimming up or down, dimming level automatically stops at minimum or maximum value.

B) 1-10V Dim

Using the push dimming will make 1-10V dimming inactivated. The driver has to be reset to active the 1-10V dimming function again.

Synchronization:

For the resynchronization to work correctly when more than one driver is connected to the same push button, follow steps of below after the drivers are connected:

A) Press push button for more than one second, followed by a short push (<1s), now, led light switches off.

B) Do a long push, the system will be resynchronized.
