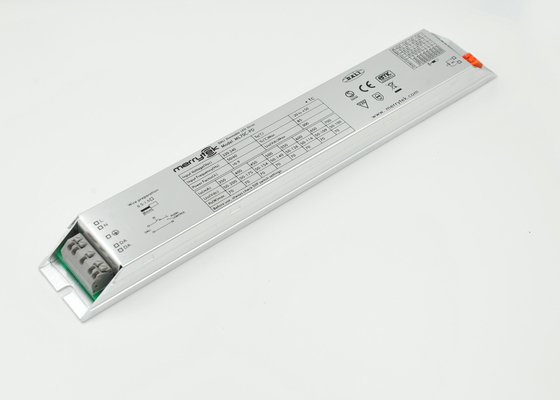

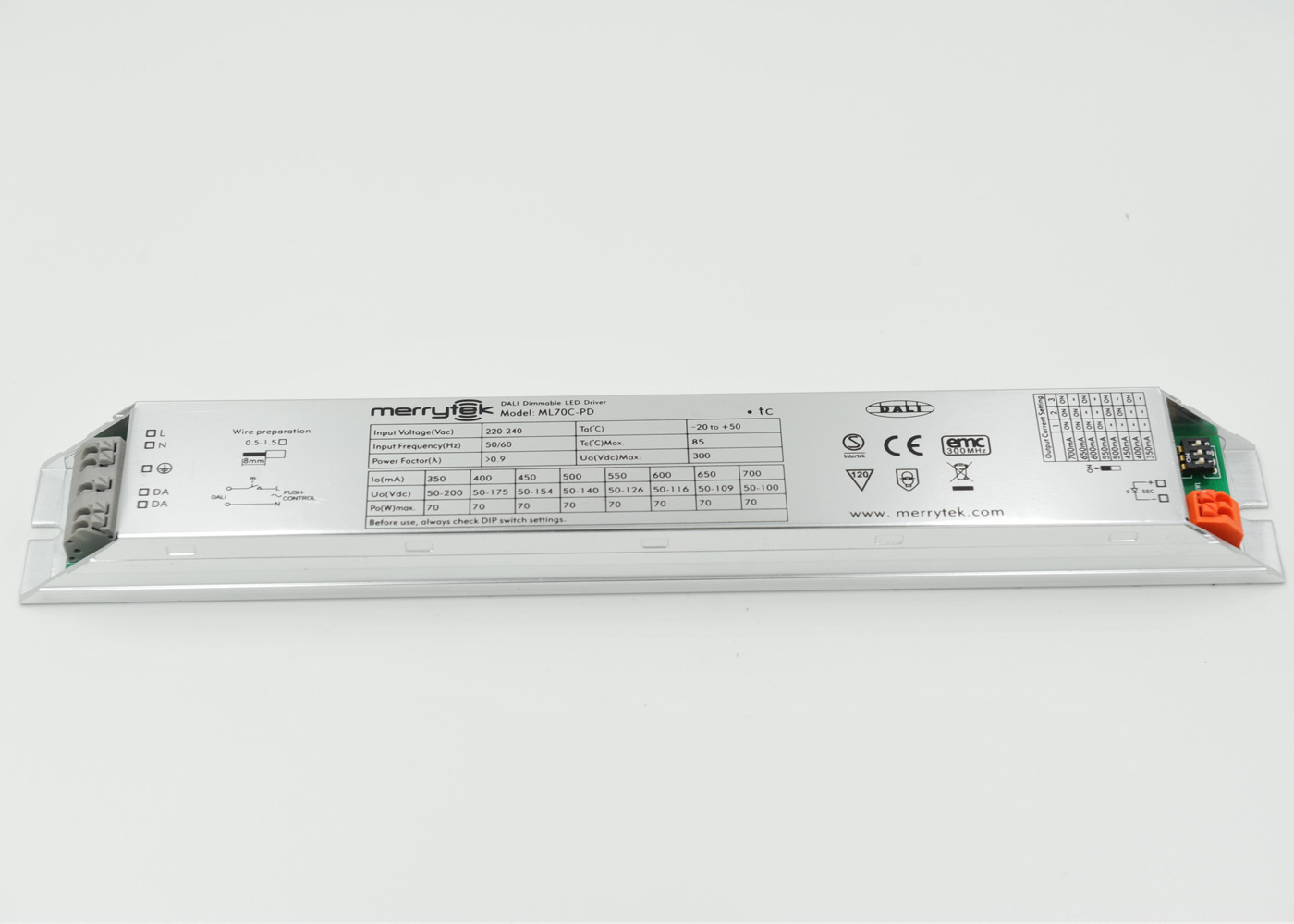

High Efficiency Outdoor 70W LED Driver / Dimmable LED Transformer 12v

  • High Efficiency Outdoor 70W LED Driver / Dimmable LED Transformer 12v
  • High Efficiency Outdoor 70W LED Driver / Dimmable LED Transformer 12v
Place of Origin China
Brand Name Merrytek
Certification CE /RoHS
Model Number ML70C-PD
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Voltage 200Vmax. Product Name Dimmable LED Driver
Input Voltage 220-240Vac Dimming Mode DALI, PUSH
Output Load 1*70W Max Working Temperature -25℃-50℃
Output Current 350mA-700mA, Selectable Via DIP Switch Isolation Class Class II
Approvals CE Protection Class IP20
Highlight

led dimming driver

,

led dimmer driver

,

High Efficiency Outdoor LED Driver
Leave a Message
Product Description

High Efficiency 70W Outdoor LED Driver / Dimmable LED Transformer 12v





Description:

1, ML70C-PD is special for both DALI and push dimming  .

2. Support Max 200vDC output

3, Compatible with latest DALI interface IEC62386-101,IEC62386-102,IEC62286-207

4, Multi output current 350mA to 700mA selectable via DIP switch.

5, Memory function: Lights returns to previous dimming level when switch off and on again, even at mains restores.

6, No need additional synchrony wire, up to 15pcs drivers should be controlled by one dimmer.

7, Maximum length of the cable, from push button to last driver is 20m

8, Press-in terminals in primary and secondary side, easy assembly

9, Protection: Short circuit / Over voltage / Over temperature

10, 5 years guaranty



Specifications





INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.17A max

Power factor

≥0.90

Efficiency(Note1)

≥85%

Leakage current

＜0.5mA/240Vac







OUTPUT



Output current and load

350mA 50-200VDC  400mA 50-175V DC

450mA 50-156V DC  500mA 50-140V DC

550mA 50-127V DC  600mA 50-117V DC

650mA 50-106V DC  700mA 50-100V DC

Output load range

1x70W max

Current accuracy

±5%

Dimming mode

DALI, PUSH





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

75℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50000hours



PROTECTION



Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1 EN61347-2-13

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

DALI interface

IEC62386-101, IEC62386-102, IEC62386-207

Approvals

CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min



NOTE

1, Efficiency is measured at 550mA/55Vdc output set by DIP switch

2, All parameters not specially mentioned are measured at 230Vac input, rated load and 25℃of ambient temp.



Mechanical Specification:

High Efficiency Outdoor 70W LED Driver / Dimmable LED Transformer 12v 0









PUSH Dim



Short push (<0.1sec): Ignore, to avoid reaction on AC spike.

Short push (0.1~1sec): Switch on or off.

Long push (>1sec): Dimming up or down, dimming automatically stops at minimum or maximum value.



Wring Diagram:



High Efficiency Outdoor 70W LED Driver / Dimmable LED Transformer 12v 1
