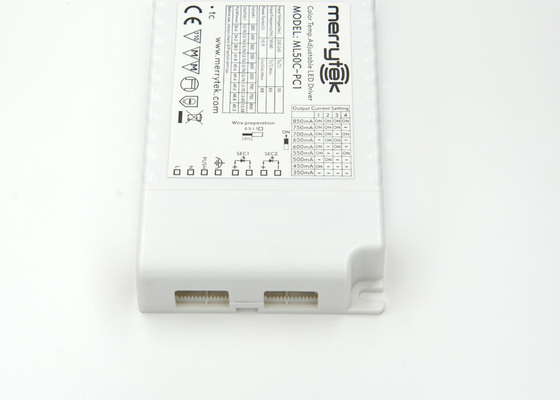

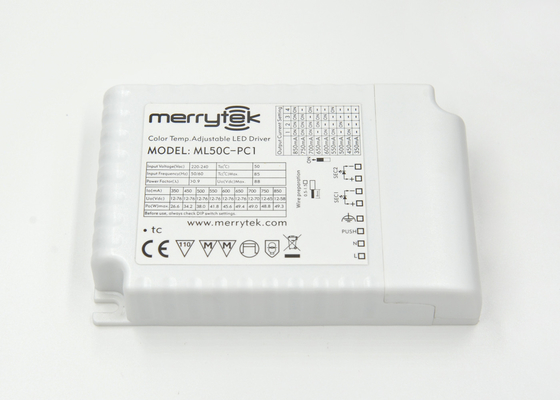

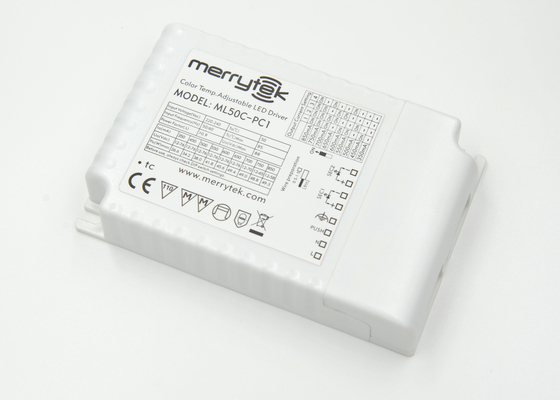

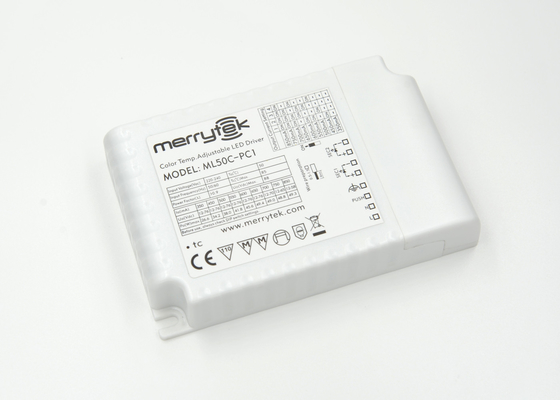

IP20 1-10v Dimmable LED Driver 50W with Auto Recover Color Temperature Adjustable
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE /RoHS |
| Model Number | ML50C-PC1 |
| Minimum Order Quantity | Stop production, not available. |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or western Union |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | PUSH Dimmable & Color Temperature Adjustable LED Driver | Output Load | 1x50W Max |
|---|---|---|---|
| Output Voltage | 76Vmax. | Input Voltage | 220-240Vac |
| Dimming Mode | Push | Working Temperature | -25℃-50℃ |
| Isolation Class | Class I | Approvals | CE |
| Protection Class | IP20 | ||
| High Light | 1-10v led dimmer,700ma dimmable led driver,Auto Recover Color Dimmable LED Driver |
||
Product Description
IP20 1-10v Dimmable LED Driver 50W with Auto Recover , No Need Sync Cable
Description:
1, Color temperature adjustable by push button
2, Built-in Push dimming function

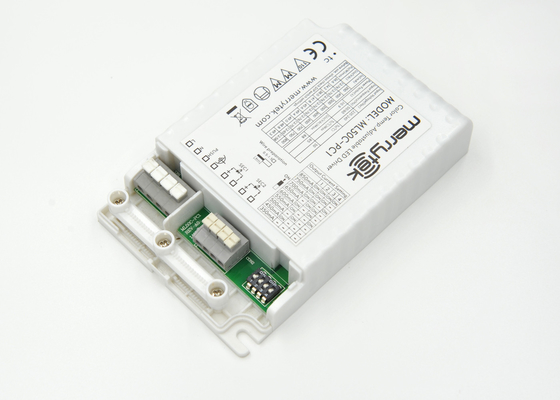

3, Constant output current 350mA to 850mA selected by DIP switch
4, Overload, short circuit protection
5, 5 years warranty
6, Short push 2 times to switch color temperature easily.
7, dimming level memory at mains restore
8, No need additional sync cable, up to 15pcs drivers when connected to the same push button
Specifications:
|
Items |
Data |
Note |
|
Input voltage |
220-240VAC 50/60Hz |
|
|
Input current |
0.260A max. |
|
|
Power factor |
≥0.90(@240Vac input and full load) |
|
|
No-load power consumption |
<2.0W |
|
|
Output voltage |
350mA 12~76V DC 26.6W max 450mA 12~76V DC 34.2W max 500mA 12~76V DC 38.0W max 550mA 12~76V DC 41.8W max 600mA 12~76V DC 45.6W max 650mA 12~76V DC 49.4W max 700mA 12~70V DC 49.0W max 750mA 12~65V DC 48.8W max 850mA 12~58V DC 49.3W max |
Set via DIP switch |
|
Current accuracy |
±5% |
|
|
Efficiency |
≥87% |
|
|
No-load output voltage |
88Vdc max. |
|
|
Operating temperature |
-20℃~50℃, Tc: 85℃ |
|
|
Storage temperature |
-40℃~80℃ |
|
|
Terminal |
Input: L, N, PUSH, FE Output: SEC1, SEC2 |
|
|
Protection class |
Class I |
|
|
Over load protection |
Over load protection with auto recover |
|
|
Short circuit protection |
Short circuit protection with auto recover |
|
|
EMC standards |
EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
|
|
Safety standards |
EN 61347-1, EN61347-2-13 |
|
|
Performance requirement |
EN62384 |
|
|
Approval |
CE |
|
|
Dielectric strength |
Input-Output: 3.75kVAC/5mA/1min |
|
|
Size(L x W x H) |
123mm × 79mm × 23.5mm |
|
|
IP grade |
IP20 |
|
Dimming Operation:
PUSH Dim
|
Operation 1 |
Ignore |
To avoid reaction on AC spike |
<0.05sec |
|
Operation 2 |
Short push |
Turn on or off |
0.1~1sec |
|
Operation 3 |
Short push 2 times within 1 second |
Switch to the other output channel (warm LEDs or cool LEDs) |
<1 sec |
|
Operation 4 |
Long push |
Dimming up or down |
1.5-10sec |
Short push (<0.05sec): Ignore, to avoid reaction on AC spike.
Short push (0.1~1sec): Switch on or off.
Short push 2 times within 1 second(<1sec):Switch to the other output channel (warm LEDs or cool LEDs)
Long push (1.5-10sec): Dimming up or down, dimming automatically stops at minimum or maximum value.
Wring Diagram:
