Product Name 1-10V Dimmable Led Driver Input Voltage 220-240Vac
Certification CE,SEMKO Dimming Mode 1-10V, PUSH
Input Currenct 0.16A Max Output Voltage 67Vdc Max.
Protection Class IP20 Output Load 1x30W Max
Efficiency ≥85% Output Current 250mA-700mA, Selectable Via DIP Switch
High Light

1-10v led dimmer

,

700ma dimmable led driver

,

Energy Saving Dimmable LED Driver 12VDC
Leave a Message
Product Description

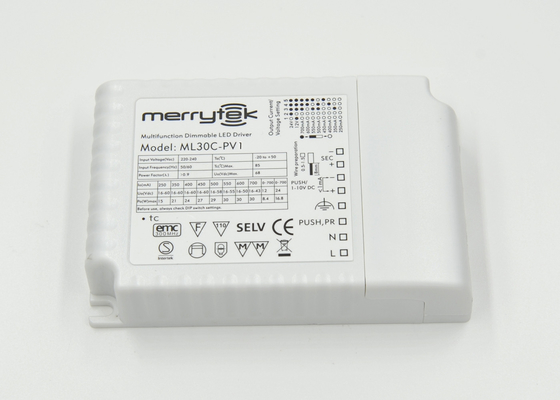

Energy Saving 1-10V Dimmable LED Driver 12Vdc / 24Vdc For LED Strip





Description:



1, With top circuit design, AC-DC-DC, no flicker.

2, Similar as TCI MAXI JOLLY PLV , with Primary dim, 1-10v dim and Secondary dim .

3, Multi-output current and voltage is suitable for different LED lights. Output current from 250mA to 700mA can be selected by DIP switches. And, it supplies 12Vdc / 24Vdc output voltage for LED strip light use.

4, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required.

5, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.

6, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.

7, Maximum length of the cable, from switch to last driver is 20m.

8, Factory setting: 100% dimming level and 250mA output.

9, Reset the LED dirver easily by a jumper.

10, Protection: Short circuit / Over voltage / Over temperature.

11, 5 years guaranty



Applications:

For office, warehouse, factory,  etc…



Dimming Operation:





A) 1-10V Dim

Using the push dimming will make 1-10V dimming inactivated. The driver has to be reset to active the 1-10V dimming function again.



Energy Saving 1-10V Dimmable LED Driver 12Vdc / 24Vdc For LED Strip 0

B) PUSH Dim

Short push (<0.1sec): Ignore, to avoid reaction on AC spike.

Short push (0.1~1sec): Switch on or switch off.

Long push (>1sec): Dimming up or down, dimming level automatically stops at minimum or maximum value.



Energy Saving 1-10V Dimmable LED Driver 12Vdc / 24Vdc For LED Strip 1



Energy Saving 1-10V Dimmable LED Driver 12Vdc / 24Vdc For LED Strip 2



Synchronization:



For the resynchronization to work correctly when more than one driver is connected to the same push button, follow steps of below after the drivers are connected:



A) Press push button for more than one second, followed by a short push (<1s), now, led light switches off.

B) Do a long push, the system will be resynchronized.



Specifications







INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.16A max

Power factor

≥0.90

Efficiency(Note1)

≥85%

Leakage current

＜0.5mA/240Vac







OUTPUT



Output current/voltage and load

250mA 16-60V DC 15W max  350mA 16-60V DC 21W max

400mA 16-60V DC 24W max  450mA 16-60V DC 27W max

500mA 16-58V DC 29W max  550mA 16-55V DC 30W max

600mA 16-50V DC 30W max  700mA 16-43V DC 30W max

12V DC 0-700mA 8.4W max   24V DC 0-700mA 16.8W max

Output load range

1x30W max

Current accuracy

±5%

Dimming mode

1-10V, PUSH





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

85℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50,000hours





PROTECTION



Isolation class

Class I, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

Approvals

SEMKO, CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min; IN-FG:1500VAC/5mA/1min

OUT-FG:500VAC/5mA/1min



NOTE

1, Efficiency is measured at 550mA/55Vdc output set by DIP switch

2, All parameters not specially mentioned are measured at 230Vac input, rated load and 25℃of ambient temp.



Mechanical Specification:Energy Saving 1-10V Dimmable LED Driver 12Vdc / 24Vdc For LED Strip 3
