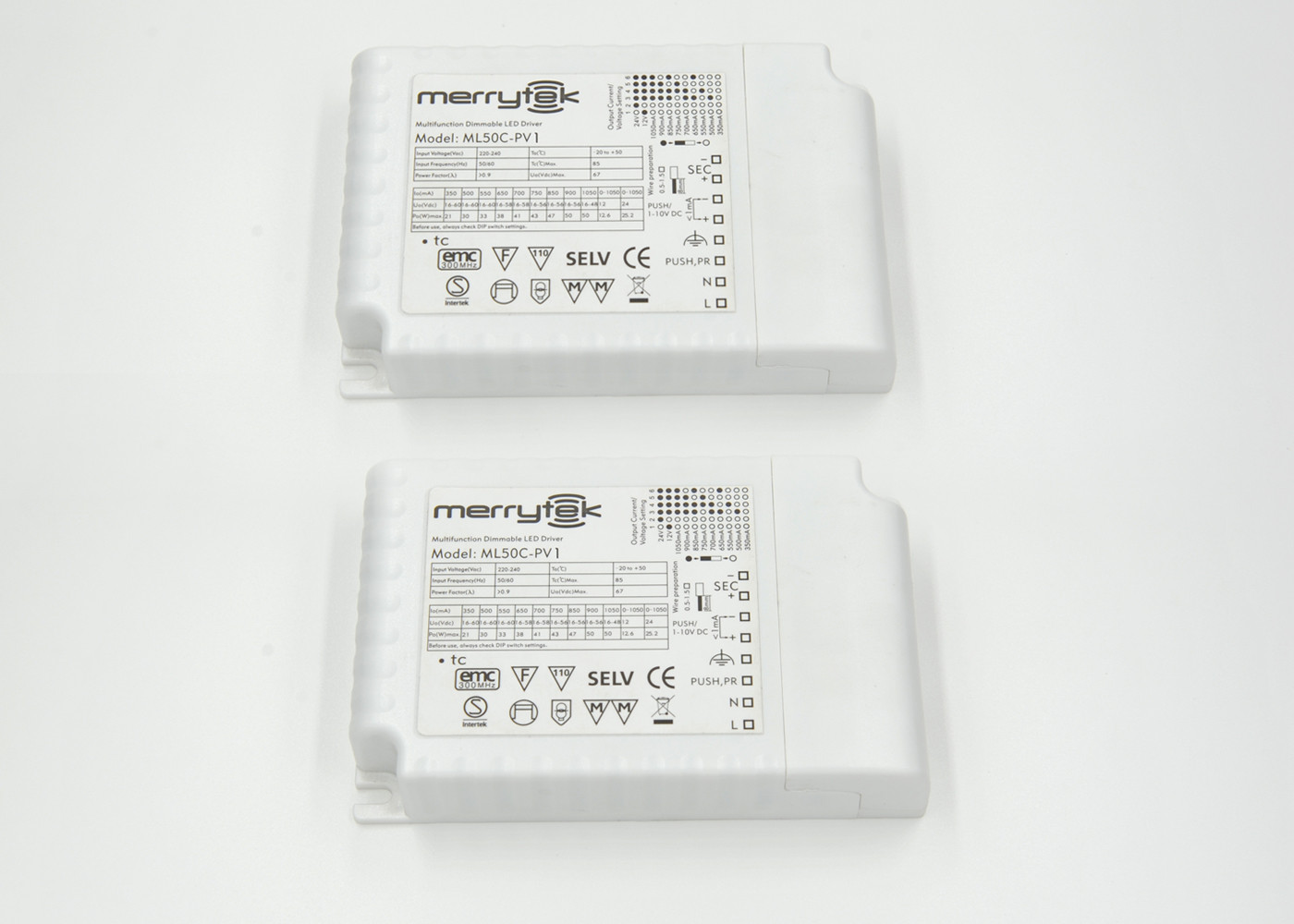

1x50w German Terminal 350mA - 1050mA LED Lighting Driver 0-10V / PUSH DIM

  • 1x50w German Terminal 350mA - 1050mA LED Lighting Driver 0-10V / PUSH DIM
Place of Origin China
Brand Name Merrytek
Certification SEMKO /CE
Model Number ML50C-PV1
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit.
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Current 0.26mA Max Product Name 1-10V/push Dimmable Led Driver
Output Current 350-1050mA, Select Via VIP Switch Output Load Range 50W Max
Dimmming Function 0-10V And Push Dim Approval CE/SMEKO
Dimming Level 1%-100% Life Time 50000hours
Operating Voltage 220-240vac Protection Short Circuit, Over Temperature, Over Voltage
High Light

1-10v led dimmer

,

700ma dimmable led driver

,

German Terminal LED Lighting Driver
Leave a Message
Product Description

ML50C-PV1 1x50w German terminal 350mA to 1050mA LED Lighting Driver 0-10V and PUSH DIM 123x79x23.5mm



Description



1, Very easy to installation as the iput and output side used the Press-in type terminal blocks

2, with top-circuit design AC-DC-DC, no flicker

3, Dimmable LED driver with primary PUSH, secondary PUSH and 0-10V dimming interface.

4, DIP switch design is for different current and voltage selecting, maximum current up to 1050mA. Different LED light can chose the same model LED driver, save cost for purchasing and inventory management.

5, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required.

6, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.

7, Synchronization: thanks to the MCU programme, up to 15pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.

8, Maximum length of the cable, from switch to last driver is 20m.

9, Factory setting: 100% dimming level and 350mA output.

10, Reset the LED diver easily by a jumper.

11, Press-in terminals in primary and secondary side, easy assembly.

12, Protection: Short circuit / Over voltage / Over temperature.

13, Long life span 50,000h, 5 years guaranty.



Mechanical Specification



1x50w German Terminal 350mA - 1050mA LED Lighting Driver 0-10V / PUSH DIM 0



1x50w German Terminal 350mA - 1050mA LED Lighting Driver 0-10V / PUSH DIM 1



Specifications







INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.26A max

Power factor

≥0.90

Efficiency(Note1)

≥87%

Leakage current

＜0.5mA/240Vac







OUTPUT



Output current/voltage and load

350mA 16-60V DC 21W max  500mA 16-60V DC 30W max

550mA 16-60V DC 33W max  650mA 16-58V DC 41W max

700mA 16-58V DC 41W max  750mA 16-56V DC 43W max

850mA 16-56V DC 47W max  900mA 16-56V DC 50W max

1050mA 16-48V DC 50W max 12Vdc 0-1050mA 12.6W max

24Vdc 0-1050mA 25.2W max

Output load range

1x50W max

Current accuracy

±5%

Dimming mode

0-10V, PUSH





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

85℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50000hours





PROTECTION



Isolation class

Class I, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

Approvals

SEMKO, CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min; IN-FG:1500VAC/5mA/1min

OUT-FG:500VAC/5mA/1min



NOTE

1, Efficiency is measured at 1050mA/48Vdc output set by DIP switch

2, All parameters not specially mentioned are measured at 230Vac input, rated load and 25℃of ambient temp.



Applications



For LED panel light, LED down light, led strip, led tube etc…
