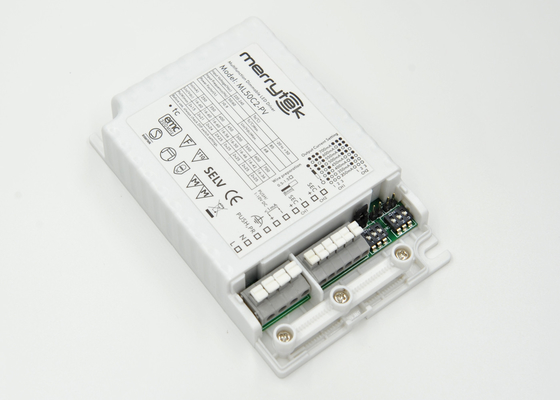

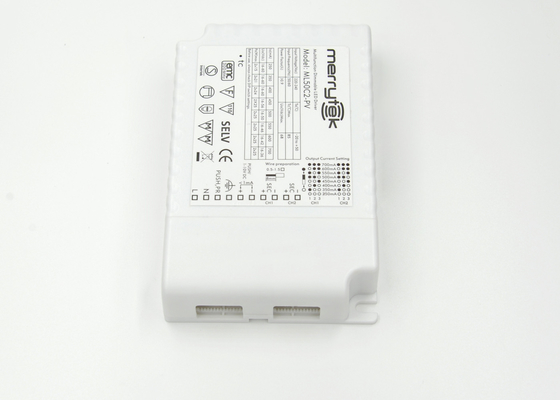

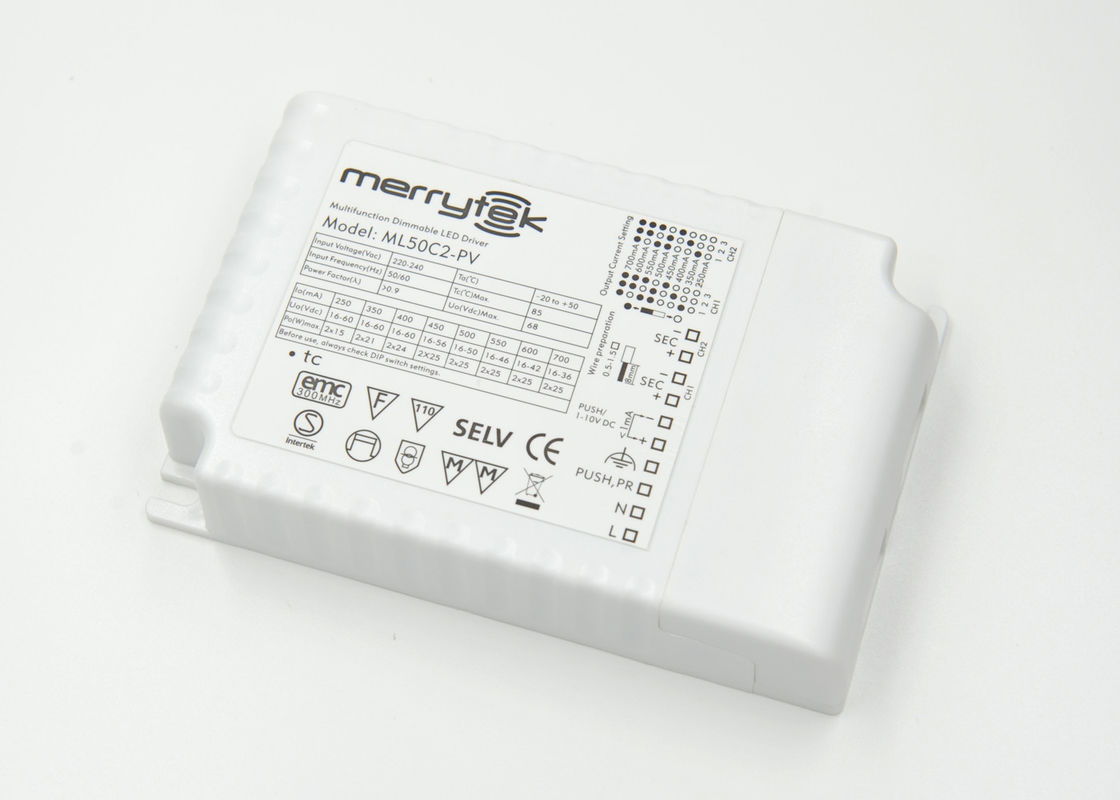

High Power 2 x 25W Two Channel Output 700ma Dimmable LED Driver 0-10v

  • High Power 2 x 25W Two Channel Output 700ma Dimmable LED Driver 0-10v
  • High Power 2 x 25W Two Channel Output 700ma Dimmable LED Driver 0-10v
  • High Power 2 x 25W Two Channel Output 700ma Dimmable LED Driver 0-10v
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML50C2-PV
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit.
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Two Channel 0-10V /PUSH Dimming Led Driver Dimming Mode 0-10V And Pusn
Input Voltage 220-240Vac Rated Load 2x25W Max
Output Channel Qty Two-channel Output Current 250mA-700mA, Selectable Via DIP Switch
Output Voltage 68Vdc Max. Approvals SEMKO /CE
Working Temperature -25℃-50℃
High Light

1-10v led dimmer

,

700ma dimmable led driver

,

2x25W Dimmable LED Driver
Leave a Message
Product Description

ML50C2-PV 2 x 25W two channel output 0-10V & Push dimmable LED driver 250mA - 700mA 123x79x23.5mm





Description

1, Press-in terminals in primary and secondary side, easy to assemble.

2, Two independent output current channel, each channel supplies selectable current from 250mA to 700mA.

3, with push and 0-10V dimming function, dimming range from 0%-100%.

4, The output current of each channel is selectable by dip swtiches.

5, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required.

6 Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.

7, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.

8, Maximum length of the cable, from switch to last driver is 20m.

9, Factory setting: 100% dimming level and 250mA output.

10, Reset the LED diver easily by a jumper.

11, Protection: Short circuit / Over voltage / Over temperature.

12, Long life span 50,000h, 5 years guaranty.



Mechanical Specification



High Power 2 x 25W Two Channel Output 700ma Dimmable LED Driver 0-10v 0



High Power 2 x 25W Two Channel Output 700ma Dimmable LED Driver 0-10v 1

Specifications







INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.26A max

Power factor

≥0.90

Efficiency(Note1)

≥85%

Leakage current

＜0.5mA/240Vac







OUTPUT



Output current/voltage and load

250mA 16-60V DC 2x15W max  350mA 16-60V DC 2x21W max

400mA 16-60V DC 2x24W max  450mA 16-60V DC 2x25W max

500mA 16-50V DC 2x25W max  550mA 16-46V DC 2x25W max

600mA 16-42V DC 2x25W max  700mA 16-36V DC 2x25W max

Output load range

2x25W max

Current accuracy

±5%

Dimming mode

0-10V, PUSH





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

85℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50,000hours





PROTECTION



Isolation class

Class I, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

Approvals

SEMKO, CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min; IN-FG:1500VAC/5mA/1min

OUT-FG:500VAC/5mA/1min



NOTE

1, Efficiency is measured at 550mA/46Vdc output set by DIP switch

2, All parameters not specially mentioned are measured at 230Vac input, rated load and 25℃of ambient temp.



Applications



For LED down light, LED panel light, etc…



Wire diagram



High Power 2 x 25W Two Channel Output 700ma Dimmable LED Driver 0-10v 2
