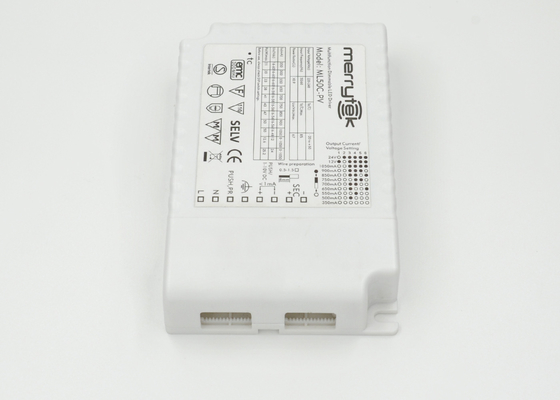

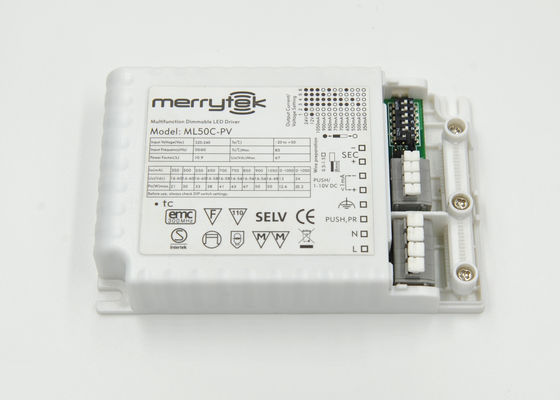

ML50C-PV  1x50w 0-10V and push dimmable led driver 350mA to 1050mA multi-output 123x79x23.5mm for LED Panel Light



Feature

1, Output current and output voltage can be set by DIP switches, constant output current range from 350mA to 1050mA

2, Two circuit design AC-DC-DC, no flicckering in dimming 2%-100%

3, Stand-by power below 0.5W

4, Dimmable LED driver with primary PUSH, secondary PUSH and 1-10V dimming interface

5, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required

6, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores

7, Synchronization: thanks to the MCU programme, up to 15pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch

8, Maximum length of the cable, from switch to last driver is 20m

9, Factory setting: 100% dimming level and 350mA output

10, Dim via a potentiometer

11, Support master-slave grouping net work

12, Protection: Short circuit / Over voltage / Over temperature

13, Long life span 50,000h, 5 years guaranty

14, Derating current for over high ambient temperature



Mechanical Specification



ML50C-PV 1x50w 0-10V / Push LED Driver Dimmable 350mA - 1050mA Multi - Output 0

Dimming Operation:

1.Push button switch for dimming (see wiring diagram, Fig A & Fig B)

  • ON/OFF: Short push (120ms ~ 1sec) on the switch
  • Stepless dimming: Long push (＞1sec) on the switch. With every other long push, the light level goes the opposite direction.
  • Synchronization: No need additional synchrony wire in larger installation, up to 15pcs drivers when connected to the same switch.

2.1-10V dimming (see wiring diagram, Fig C)

The driver supports any active 1-10V dimmer. When the dimming signal is less than 0.8V ~ 1V or short the dimming wires, the output of LED driver could be completely switch off, see Fig C



Specifications





INPUT



 Input voltage 220-240Vac
Input frequency 50-60Hz
Input current 0.26A max
Power factor (Note 1) ≥0.90
Efficiency(Note1) ≥86%
Stand-by power (Note 2) ≤0.5W







OUTPUT



 Output current/ voltage

350mA 6~60V DC 21W max.; 500mA 6~58V DC 29W max

550mA 6~58V DC 31.9W max.; 650mA 6~58V DC 37.7W max.

700mA 6~58V DC 40.6W max.; 750mA 6~56V DC 42W max

850mA 6~56V DC 47.6W max.; 900mA 6~56V DC 50.4W max

1050mA 6~48V DC 50.4W max.

12V (0~1050mA) 12.6W max.; 24V (0~1050mA) 25.2W max.
Output load range 50.4W Max.
Current accuracy ±5%
Dimming mode 1-10V, PUSH





ENVIRONMENT



 Working temp.(Ta) -20~50℃
Surface temp.(Tc) 85℃max
Working humidity 20~85%RH non-condensing
Storage temp. -40~80℃
Life time ≥50000hours



PROTECTION



 Isolation class Class Ⅰ
Protection class IP20
Over voltage 300Vac, 2H
Short circuit Protection type; auto reset
No-load Protection type; auto reset
Over temperature Protection type; auto reset







OTHERS



 Safety EN61347-1 EN61347-2-13
EMC EN55015, EN61000-3-2
EN61000-3-3, EN61547
Approvals SEMKO, CE, RoHS
Withstand voltage IN-OUT:3.75KVAC/5mA/1min
Dimension (L x W x H) 123x79x23.8mm
Connection

Press-in type terminals, 0.75-1.5mm2

Input: L, N, PUSH, PE

Output: SEC(+) SEC(-), 1-10V(+),1-10V(-)



NOTE

Note:

1, Power factor and efficiency is detected at 230Vac input and full load.

2, Standby power is detected at 230Vac input and switch off led load by push button.

Applications

For LED panel light, LED down light, led strip, led tube etc…
