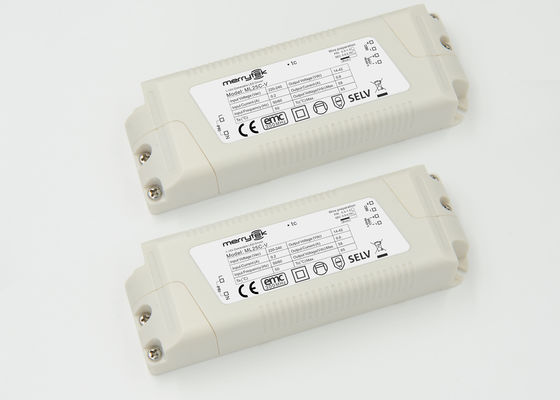

Customized Office Panel Light 0 - 10v Dimmable LED Driver 600mA Output

  • Customized Office Panel Light 0 - 10v Dimmable LED Driver 600mA Output
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML25C-V
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit.
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Factor ≥0.90 Input Current 220-240Vac
Dimming Mode 0-10V Push Output Current 600mA (can Be Customerized)
Efficeincy ≥85% Output Laod 25W
Output Volatge 14-42Vdc Approval CE
Life Time 50000
High Light

1-10v led dimmer

,

led light driver

,

Office Panel Light Dimmable LED Driver
Leave a Message
Product Description

ML25C-V Office panel light 0-10v dimmable led driver 600mA output





Description:



1, Two stage AC-DC-DC circuit, without flickering durign dimming.

2, 0-10V and 1-10V dimming mode are available.

3, Output current 600mA. It's also can be customized with other output current.

4, Output voltage 14-42Vdc,load 4-14pcs LEDs.

5, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.

6, Factory setting: 100% dimming level.

7, Screw terminals in primary and secondary side, wires can be firmly fixed.

8, Protection: Short circuit / Over voltage / Over temperature.

9, Long life span 50,000h, 5 years guaranty.

10, Size 131.5 x 45 x 22.5mm



Mechanical Specification



Customized Office Panel Light 0 - 10v Dimmable LED Driver 600mA Output 0

Specifications



OUTPUT

Output

600mA, 14-42Vdc

Output load range

25W max

Current accuracy

±5%

Dimming mode

0-10V,1-10V





INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.13A max

Power factor

≥0.90

Efficiency(Note1)

≥85%

Leakage current

＜0.5mA/240Vac





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

80℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50,000hours





PROTECTION



Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

Approvals

 CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min; IN-FG:1500VAC/5mA/1min

OUT-FG:500VAC/5mA/1min



NOTE

1, Efficiency is measured at 230Vac input and full load.

2, All parameters not specially mentioned are measured at 230Vac input, rated load and 25℃of ambient temp.



Application



For LED panel light, LED down light, led strip, led tube etc…



Wire diagram
