1 × 75W Push 1-10V Dimmable LED Driver , Constant Voltage PWM Dimming LED Driver

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML75V-PV
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit.
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Constant Voltage Dimmable Led Driver Output Load 75W Max
Output Current 6.25mA Max Output Voltage 12vdc
Efficiency ≥85% Certification CE
Protection Class IP20 Life Time 50000
Dimming Mode 1-10V ,Push
High Light

led light driver

,

700ma dimmable led driver

,

1×75W Push Dimmable LED Driver

Leave a Message
Product Description

1 × 75W Push 1-10V Dimmable LED Driver , PWM Dimming LED Driver


Description:
1, ML75V-PV is constant voltage  dimmable led driver 12Vdc with 1-10V push
2. with 1-10V and push button
3, With top circuit design, AC-DC-DC, no flicker.
4, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required.
5, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.
6, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.
7, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.
8, Maximum length of the cable, from switch to last driver is 20m.
9, Factory setting: 100% dimming level and 250mA output.
10, Reset the LED dirver easily by a jumper.
11, Protection: Short circuit / Over voltage / Over temperature.
12. 1, 5 years guaranty

Applications:
For led panel light, led highbay, led strip etc.


Synchronization:

For the resynchronization to work correctly when more than one driver is connected to the same push button, follow steps of below after the drivers are connected:

A) Press push button for more than one second, followed by a short push (<1s), now, led light switches off.
B) Do a long push, the system will be resynchronized.




Dimming Operation:


A) 1-10V Dim
Using the push dimming will make 1-10V dimming inactivated. The driver has to be reset to active the 1-10V dimming function again.

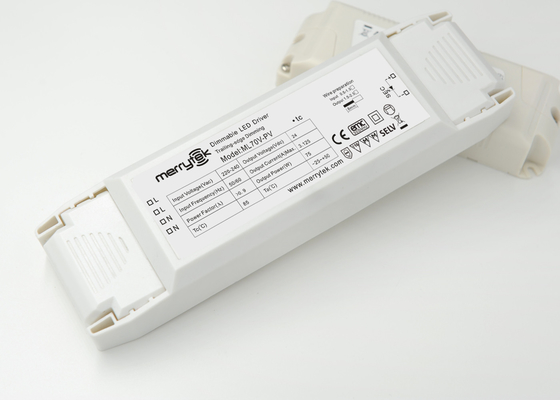

1 × 75W Push 1-10V Dimmable LED Driver , Constant Voltage PWM Dimming LED Driver 0
B) PUSH Dim
Short push (<0.1sec): Ignore, to avoid reaction on AC spike.
Short push (0.1~1sec): Switch on or switch off.
Long push (>1sec): Dimming up or down, dimming level automatically stops at minimum or maximum value.

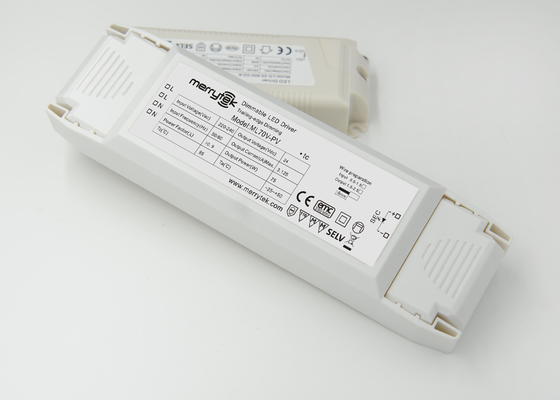

1 × 75W Push 1-10V Dimmable LED Driver , Constant Voltage PWM Dimming LED Driver 1

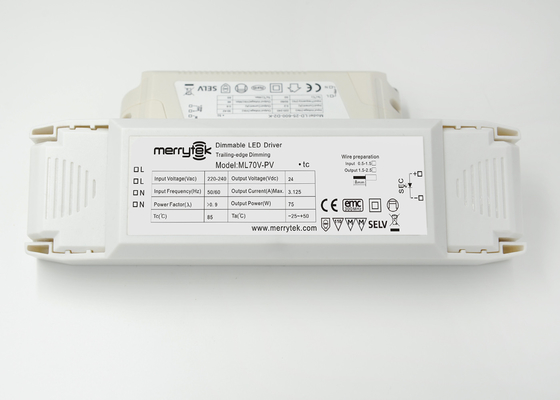

1 × 75W Push 1-10V Dimmable LED Driver , Constant Voltage PWM Dimming LED Driver 2


Specifications


Model NO.

ML75V-PV

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

Stand-by power

≤0.5W

Max. output voltage

12V DC

Output

Output current

12V DC, 6.25A max.

Voltage accuracy

±5%

Rated power

75W Max.

Dimming mode

1-10V, PUSH

Dimming

Dimming range

0%-100%

Working temperature

-25℃~45℃

Environment

Storage temperature

-40℃~80℃

Insulation class

Class II, SELV

Safety and EMC

Withstand voltage

Input-Output: 3.75kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

Short circuit

Protection mode: Auto recovery

Protection

Over temperature

Protection mode: Auto recovery

Dimension

220x58x40mm

Others

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)
Output: Screw terminal block (LED +, LED -)

Life time

50,000h

Certification

CE

Packing

Bubble bag +  cardboard + Carton
