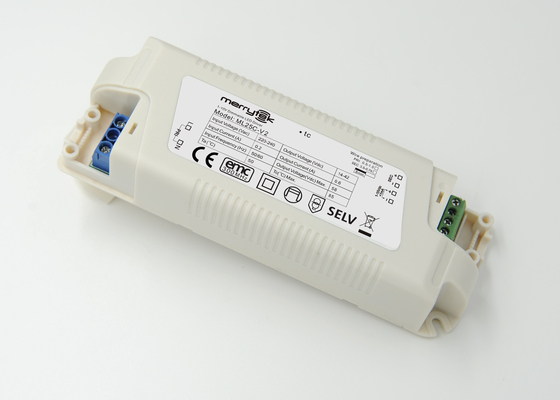

700mA Dimmable LED Driver 0 - 10v Constant Current 3 - Step Dimming

  • 700mA Dimmable LED Driver 0 - 10v Constant Current 3 - Step Dimming
Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number ML25C-V2
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Grade IP20 Product Name 1-10V Constant Current Dimming Led Driver
Isolation Class Class1 Dimming Range 1％~100％
Max. Currenct 700mA, Current Can Be Customized Dimming Function I-10V
Operating Voltage 220-240Vac
High Light

led light driver

,

700ma dimmable led driver

,

3 Step Dimming Dimmable LED Driver
Leave a Message
Product Description



1-10V 700mA Dimmable Led Driver Constant Current 3 - Step Dimming





Description:

1, with top circuit design, no flickering dimming 1%-100%

2, It can match with Merrytek dimming function motion sensor MC003V to achieve 3-step dimming

function or 2-step dimming function

3,The output current 700mA. You can also customized the current

4. it's constant current 1-10V dimming led driver

5, Protection: Short circuit/ Over voltage/ Over temperature

6. When no motion detected,sensor will enter into 3 step dimming function

7. Simple setting of the target light level by mean of potentiometer.

8. MC003V is an innovative motion sensor, switch on the light on detection of movement, and switch

off a hold time when there is no motion detected. As built-in daylight sensor can read brightness

value, the sensor does not switch on the light if with sufficient in natural light.



Function:



1-10V dimming function, match with Merrytek dimming motion sensor MC003V to auto 3-step dimming or 2 step dimming function



700mA Dimmable LED Driver 0 - 10v Constant Current 3 - Step Dimming 0



700mA Dimmable LED Driver 0 - 10v Constant Current 3 - Step Dimming 1



Specifications:





Operating voltage

220-240Vac

Input frequency

50-60Hz

Dimming range

1％~100％

Power factor

＞0.9

Effiency

＞85%

Output current

700mA

Load

       25w Max

Dimming Mode

1-10v

Operation Temperature

-20℃ ~ 50 ℃



Applications:



For corridor, warehouse,office, gas station,etc
