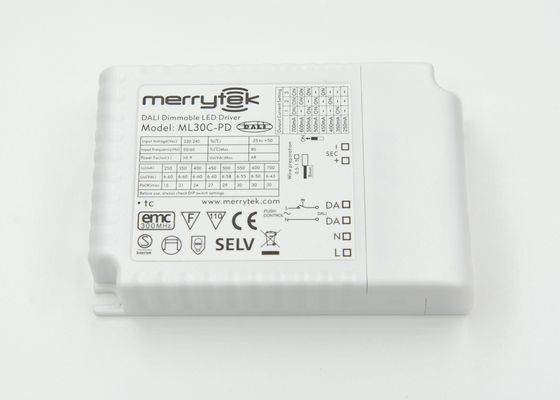

IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II

  • IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II
  • IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II
Place of Origin China
Brand Name Merrytek
Certification CE /RoHS
Model Number ML30C-PD
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Approvals CE Product Name DALI Dimmable LED Driver
Protection Class IP20 Output Load 1x30W Max
Output Current 250mA-700mA, Selectable Via DIP Switch Output Voltage 60Vmax.
Input Voltage 220-240Vac Dimming Mode DALI, PUSH
Working Temperature -25℃-50℃ Isolation Class Class II
High Light

dali led dimmer

,

dali rgb led driver

,

Low Voltage Dali LED Dimming Driver
Leave a Message
Product Description



IP20 Indoor Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II





Description:

  1. Built-in DALI interface.
  2. Support Push dimming function.

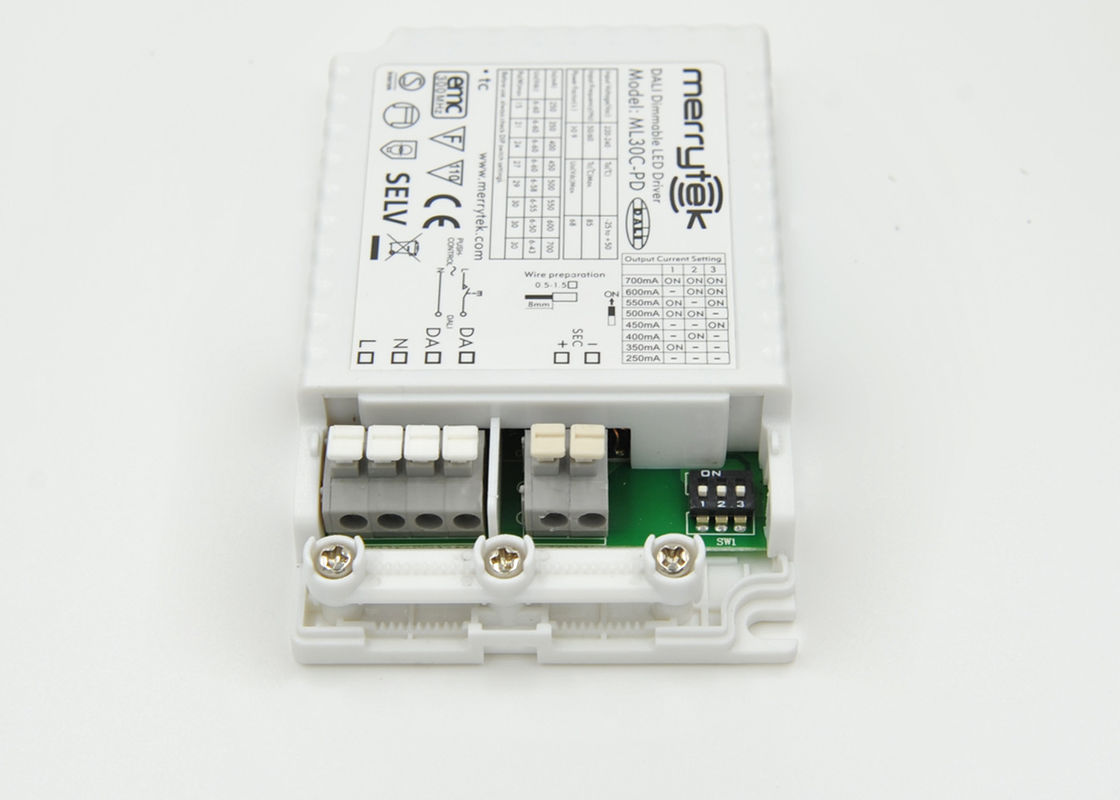

  3. Multi output current 250mA to 700mA selectable via DIP switch.
  4. Memory function: Lights returns to previous dimming level when switch off and on again, even at mains restores.
  5. No need additional synchrony wire, up to 15pcs drivers should be controlled by one dimmer.
  6. Maximum length of the cable, from push button to last driver is 20m
  7. Press-in terminals in primary and secondary side, easy assembly
  8. Protection: Short circuit / Over voltage / Over temperature
  9. 5 years guaranty



Specifications





INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.16A max

Power factor

≥0.90

Efficiency(Note1)

≥85%

Leakage current

＜0.5mA/240Vac







OUTPUT



Output current and load

250mA 16-60Vdc 15W max, 350mA 16-60Vdc 21W max

400mA 16-60Vdc 24W max, 450mA 16-60Vdc 27W max

500mA 16-58Vdc 29W max, 550mA 16-55Vdc 30W max

600mA 16-50Vdc 30W max, 700mA 16-43Vdc 30W max

Output load range

1x30W max

Current accuracy

±5%

Dimming mode

DALI, PUSH





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

85℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50000hours



PROTECTION



Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1 EN61347-2-13

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

DALI interface

IEC62386-101, IEC62386-102, IEC62386-207

Approvals

CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min



NOTE

1, Efficiency is measured at 550mA/55Vdc output set by DIP switch

2, All parameters not specially mentioned are measured at 230Vac

 input, rated load and 25℃of ambient temp.





Mechanical Specification:

IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II 0



Dimming Operation:



PUSH Dim



Short push (<0.1sec): Ignore, to avoid reaction on AC spike.

Short push (0.1~1sec): Switch on or off.

Long push (>1sec): Dimming up or down, dimming automatically stops at minimum or maximum value.





Wring Diagram:



IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II 1
