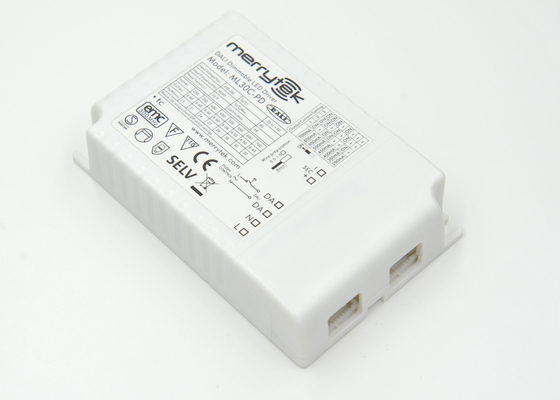

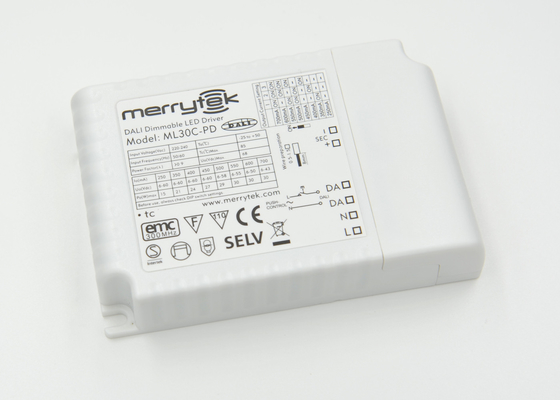

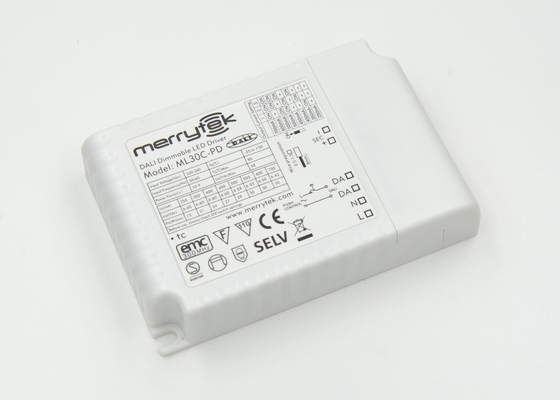

Multiple - Stage Output Current DALI RGB LED Driver Dimmable 1x30w

  • Multiple - Stage Output Current DALI RGB LED Driver Dimmable 1x30w
  • Multiple - Stage Output Current DALI RGB LED Driver Dimmable 1x30w
  • Multiple - Stage Output Current DALI RGB LED Driver Dimmable 1x30w
Place of Origin China
Brand Name Merrytek
Certification CE /RoHS
Model Number ML30C-PD
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1x30w DALI Dimmable Led Driver Output Load 1x30w
Output Current 250mA To 700mA Set Via Dip Switches Output Voltage 16-60Vdc
Input Voltage 220-240Vac Dimming Mode DALI,PUSH DIM
Working Temp. -25℃-50℃ Isolation Class Class I
Approvals CE IP Rating IP20
High Light

dali led dimmer

,

dali rgb led driver

,

DALI RGB LED Driver Dimmable
Leave a Message
Product Description

ML30C-PD 1 x 30w DALI & PUSH DIM led driver multi-output current compact design 103 x 67 x 22mm

Description

  1. Built-in DALI interface and PUSH DIM function,user can choose either DALI dimming or PUSH dimming accroding to their application requirements.
  2. Multi output current 250mA to 700mA selectable via DIP switch,one driver is applicable for many luminaires,save purchasing cost and inventory qty for customer..
  3. Compatible with latest DALI interface IEC62386-101,IEC62386-102,IEC62286-207
  4. Compact size design 103 x 67  x 22mm
  5. Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.
  6. No need additional synchrony wire, up to 15pcs drivers should be controlled by one dimmer.
  7. Maximum length of the cable, from push button to last driver is 20m
  8. Press-in terminals in primary and secondary side, easy assembly
  9. Protection: Short circuit / Over voltage / Over temperature
  10. 5 years guaranty

Mechanical Specification

Multiple - Stage Output Current DALI RGB LED Driver Dimmable 1x30w 0

Specifications




INPUT


Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.16A max

Power factor

≥0.90

Efficiency(Note1)

≥85%

Leakage current

＜0.5mA/240Vac




OUTPUT


Output current and load

250mA 16-60Vdc 15W max, 350mA 16-60Vdc 21W max
400mA 16-60Vdc 24W max, 450mA 16-60Vdc 27W max
500mA 16-58Vdc 29W max, 550mA 16-55Vdc 30W max
600mA 16-50Vdc 30W max, 700mA 16-43Vdc 30W max

Output load range

1x30W max

Current accuracy

±5%

Dimming mode

DALI, PUSH



ENVIRONMENT


Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

85℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50000hours


PROTECTION


Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest



SAFETY&EMC


Safety

EN61347-1 EN61347-2-13

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

DALI interface

IEC62386-101, IEC62386-102, IEC62386-207

Approvals

CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min


NOTE

1, Efficiency is measured at 550mA/55Vdc output set by DIP switch
2, All parameters not specially mentioned are measured at 230Vac
 input, rated load and 25℃of ambient temp.


Output current selection

Multiple - Stage Output Current DALI RGB LED Driver Dimmable 1x30w 1

Wring Diagram

Multiple - Stage Output Current DALI RGB LED Driver Dimmable 1x30w 2
