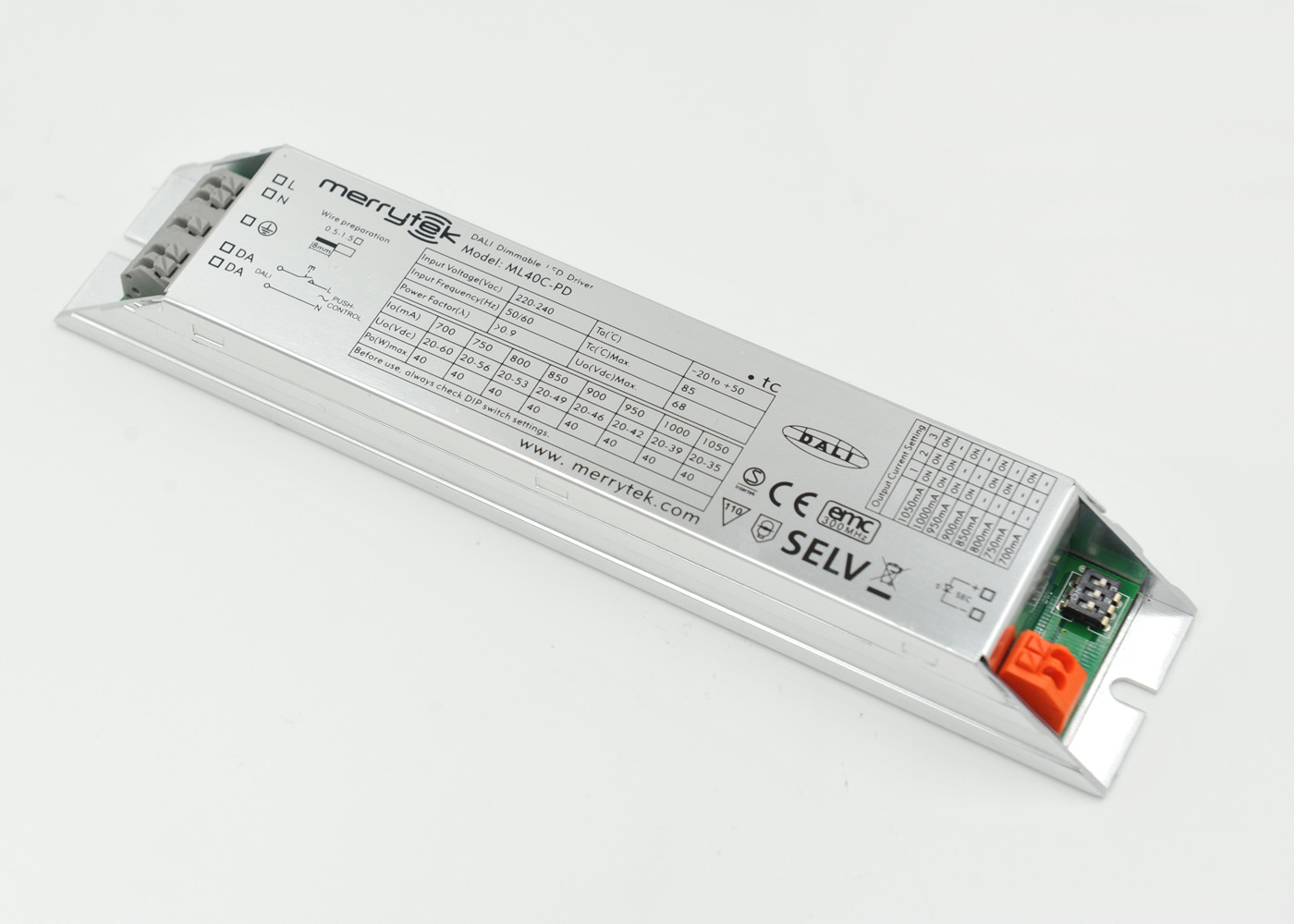

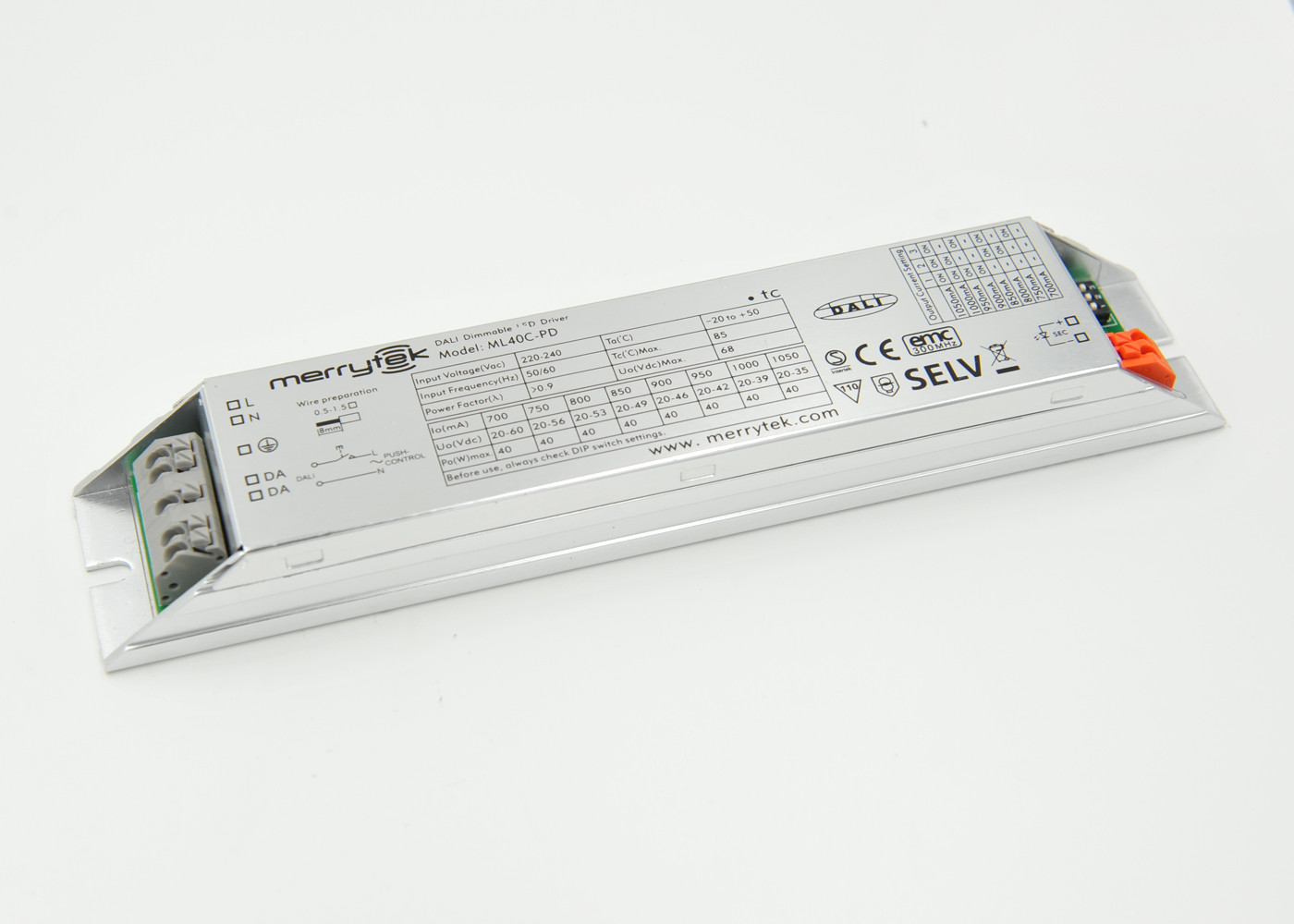

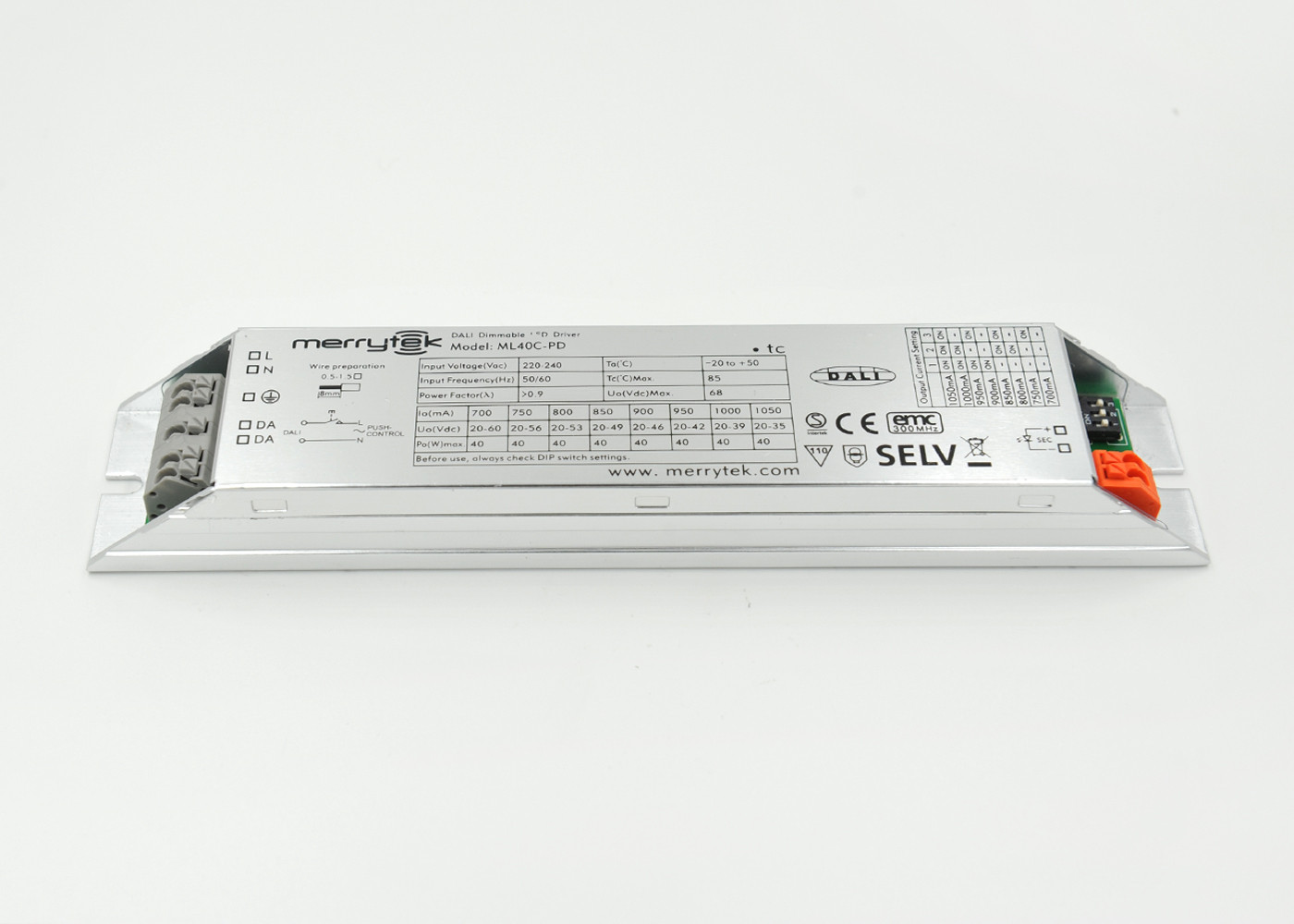

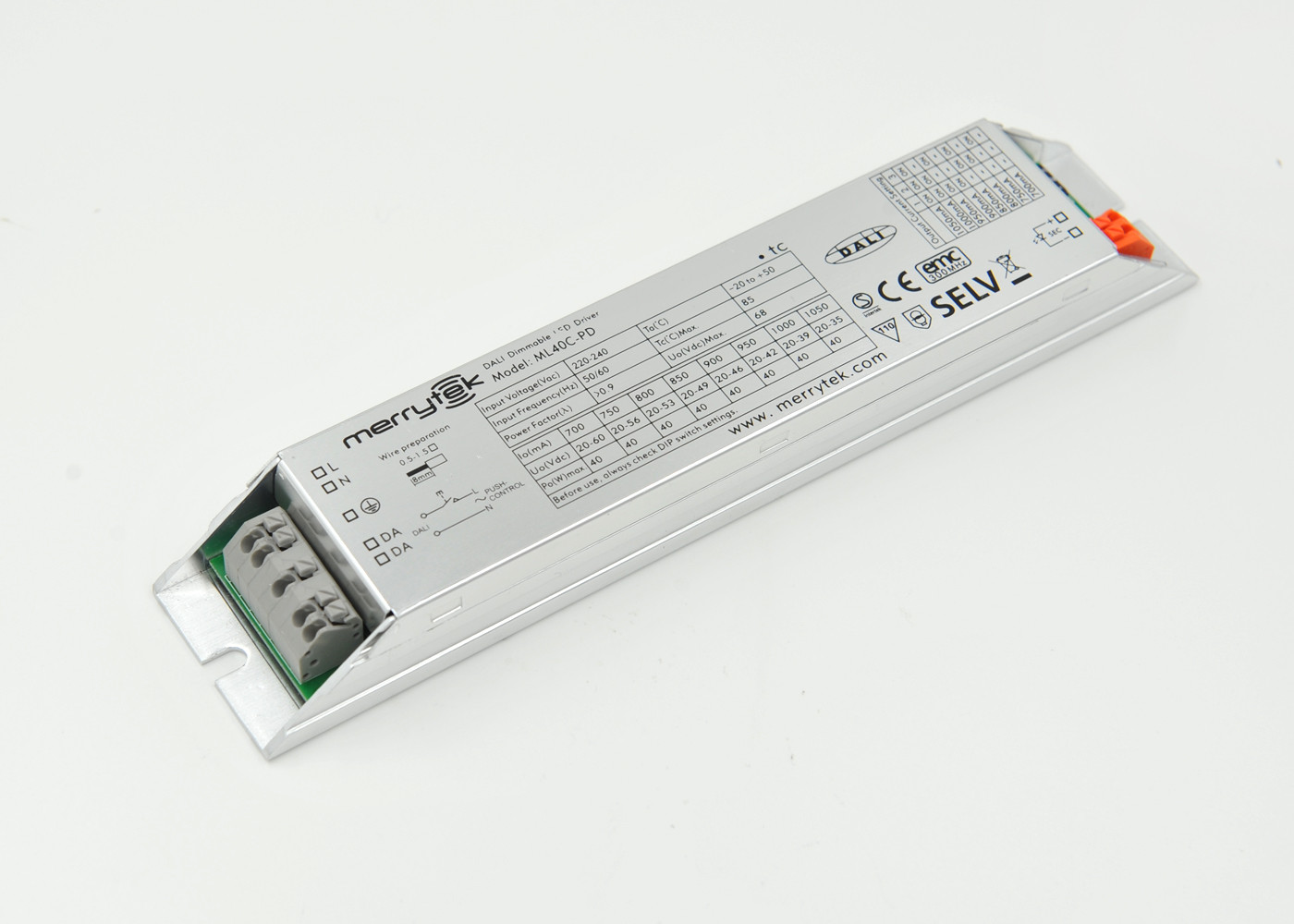

Waterproof IP20 DALI Dimmable LED Driver With Short Circuit Protection
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE /RoHS |
| Model Number | ML40C-PD |
| Minimum Order Quantity | Stop production, not available. |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or western Union |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Current | 700mA-1050mA, Selectable Via DIP Switch | Product Name | DALI Dimmable LED Driver |
|---|---|---|---|
| Output Voltage | 60Vmax. | Input Voltage | 220-240Vac |
| Dimming Mode | DALI, PUSH | Output Load | 1x40W Max |
| Working Temperature | -25℃-50℃ | Isolation Class | Class I |
| Approvals | CE | Protection Class | IP20 |
| Highlight | dali led dimmer,dali dimming led driver,Waterproof DALI Dimmable LED Driver |
||
Product Description
ML40C-PD 1 x 40w DALI & PUSH DIM led driver multi-output current slim design 200 x 40.5 x 22.8mm
Description
1, Special For DALI and push dimming function.
2, Slim size 200 x 40.5 x 22.8 mm,esp.for LED Panel application.
2, Compatible with latest DALI interface IEC62386-101,IEC62386-102,IEC62286-207
3, Multi output current 700mA to 1050mA selectable via DIP switch,one driver is applicable for many luminaires,save purchasing cost and inventory qty for customer.
4, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.
5, No need additional synchrony wire, up to 15pcs drivers should be controlled by one dimmer.
6, Maximum length of the cable, from push button to last driver is 20m
7, Press-in terminals in primary and secondary side, easy assembly
8, Protection: Short circuit / Over voltage / Over temperature
9, 5 years guaranty
Mechanical Specification:
Specifications
| Input voltage | 220-240Vac |
Input frequency | 50-60Hz | |
Input current | 0.26A max | |
Power factor | ≥0.90 | |
Efficiency(Note1) | ≥85% | |
Leakage current | ＜0.5mA/240Vac | |
| Output current and load | 700mA 20-60VDC 750mA 20~56V DC |
Output load range | 1x40W max | |
Current accuracy | ±5% | |
Dimming mode | DALI, PUSH | |
| Working temp.(Ta) | -20~50℃ |
Surface temp.(Tc) | 75℃max | |
Working humidity | 20~90%RH non-condensing | |
Storage temp. | -40~80℃ | |
Life time | ≥50000hours | |
| Isolation class | Class II, SELV |
Protection class | IP20 | |
Short circuit | Protection type; auto rest | |
Over voltage | Protection type; auto rest | |
Over temperature | Protection type; auto rest | |
| Safety | EN61347-1 EN61347-2-13 |
EMC | EN55015, EN61000-3-2ClassC | |
EN61000-3-3, EN61547 | ||
DALI interface | IEC62386-101, IEC62386-102, IEC62386-207 | |
Approvals | CE | |
Withstand voltage | IN-OUT:3.75KVAC/5mA/1min | |
| 1, Efficiency is measured at 550mA/55Vdc output set by DIP switch | |

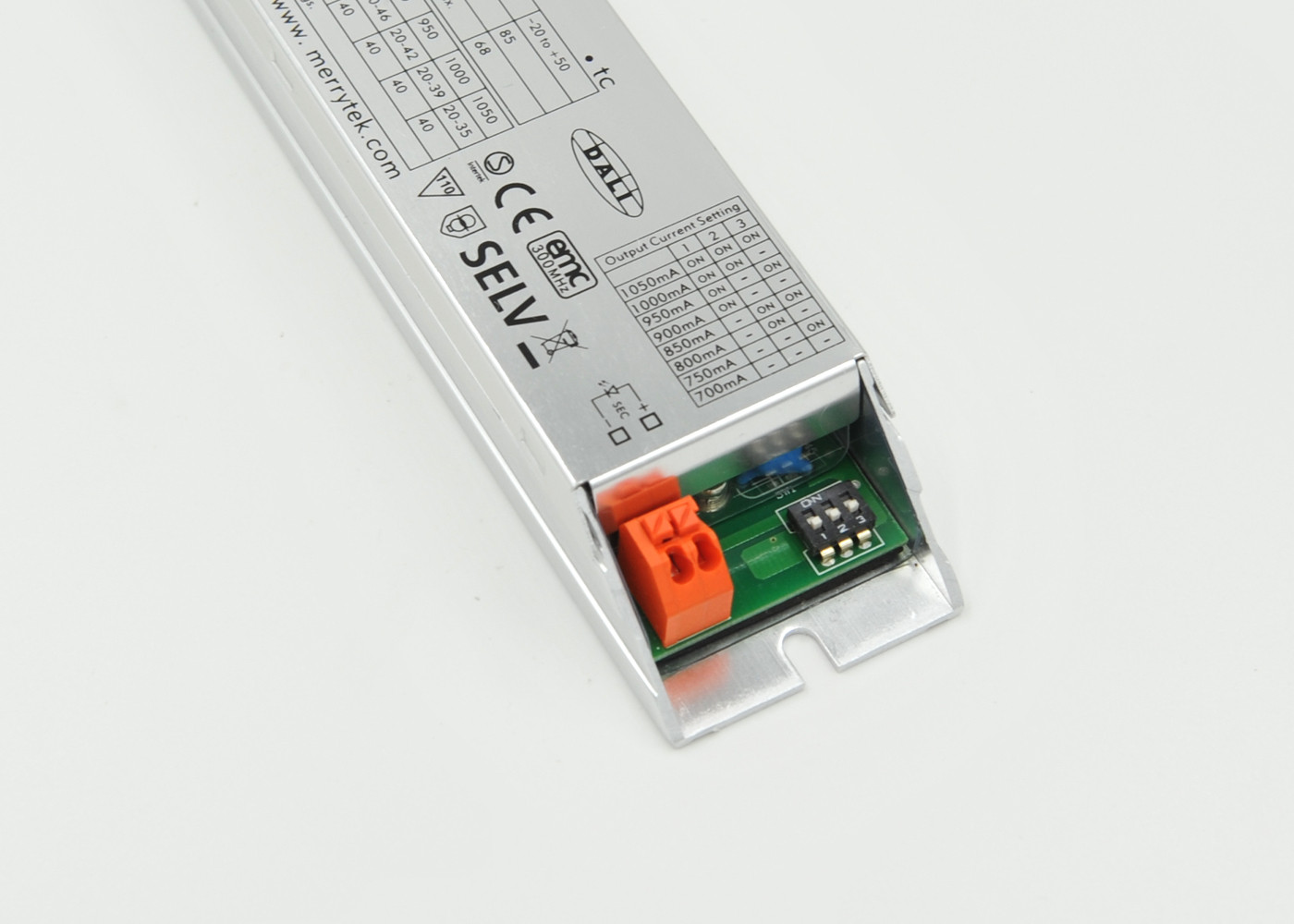

Output current selection
PUSH Dim
Short push (<0.1sec): Ignore, to avoid reaction on AC spike.
Short push (0.1~1sec): Switch on or off.
Long push (>1sec): Dimming up or down, dimming automatically stops at minimum or maximum value.
Wring Diagram:
