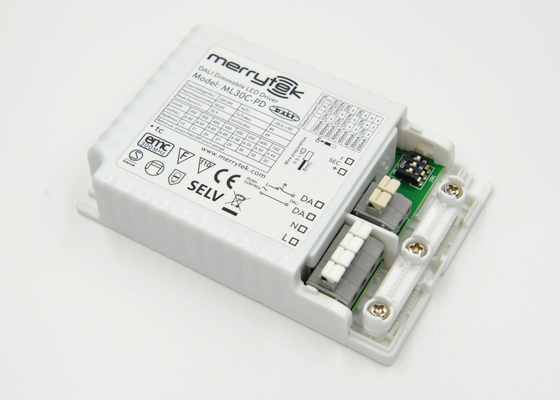

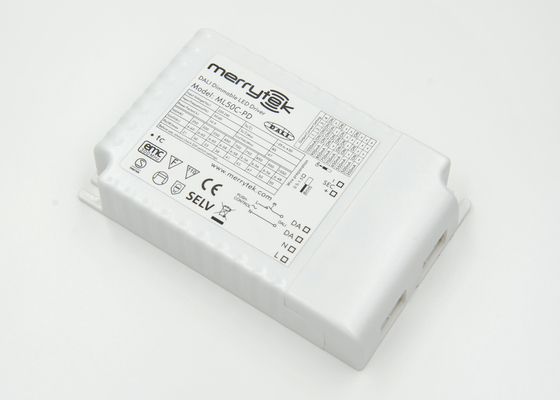

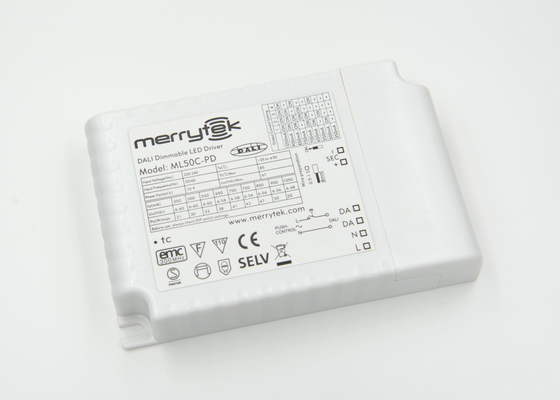

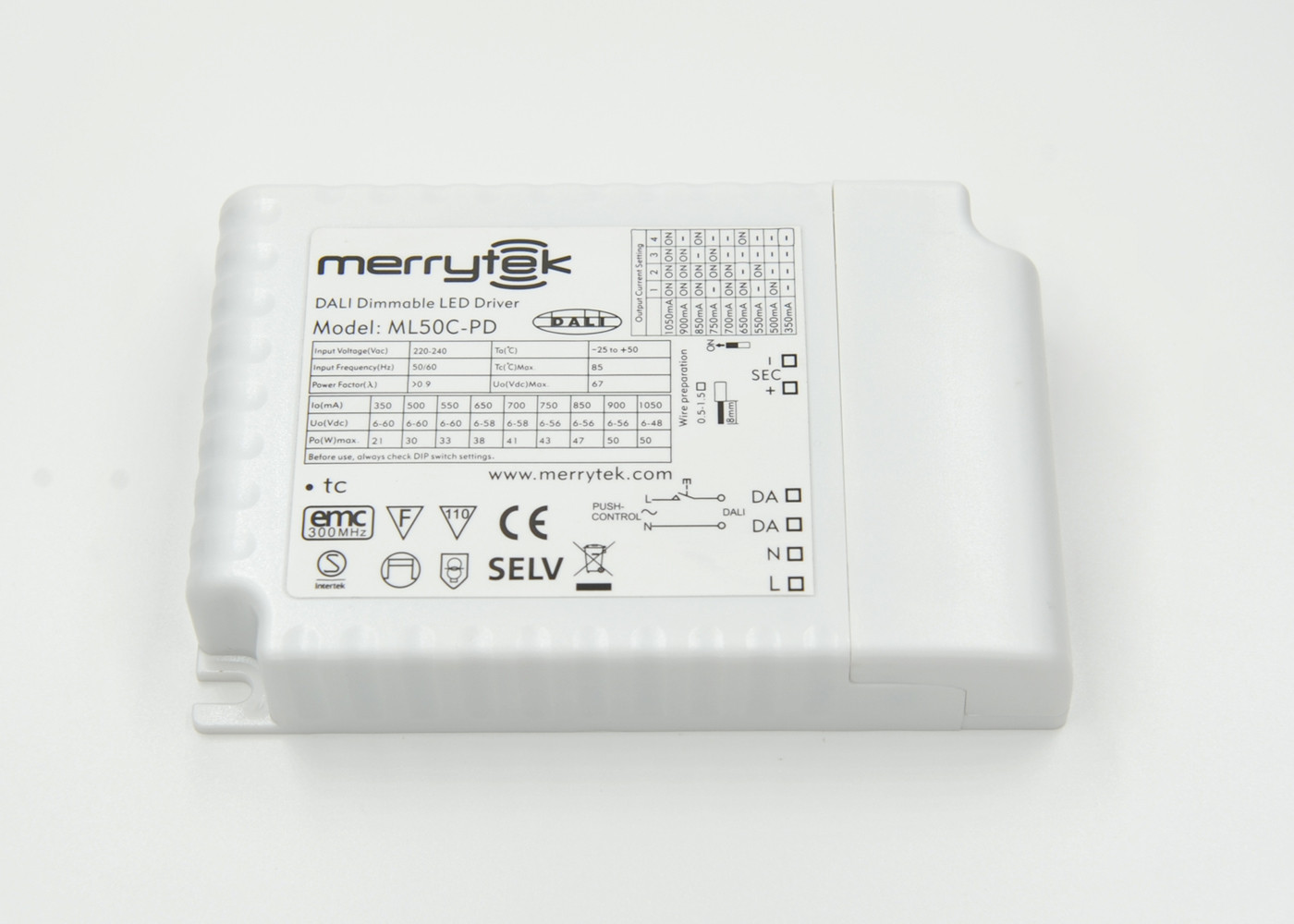

Safety 50W Constant Voltage DALI Dimmable LED Driver 900mA 16 - 56V

  • Safety 50W Constant Voltage DALI Dimmable LED Driver 900mA 16 - 56V
  • Safety 50W Constant Voltage DALI Dimmable LED Driver 900mA 16 - 56V
  • Safety 50W Constant Voltage DALI Dimmable LED Driver 900mA 16 - 56V
  • Safety 50W Constant Voltage DALI Dimmable LED Driver 900mA 16 - 56V
Place of Origin China
Brand Name Merrytek
Certification CE /RoHS
Model Number ML50C-PD
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name DALI Dimmable LED Driver Output Load 1*50W Max
Output Current 350mA-1050mA, Selectable Via DIP Switch Output Voltage 60Vmax.
Input Voltage 220-240Vac Dimming Mode DALI, PUSH
Working Temperature -25℃-50℃ Isolation Class Class II
Approvals CE Protection Class IP20
High Light

dali led dimmer

,

dali dimming led driver

,

DALI Dimmable LED Driver 900mA
Leave a Message
Product Description

ML50C-PD 1 x 50w DALI & PUSH DIM led driver multi-output current compact size 123 x 79 x 23.5mm



Description



1, Compact size design 123 x 79  x 23.5mm

2, With both DALI and push dimming function;DALI dimming can be achived by DALI master; Push dimming can be achieved by push button

2, Compatible with latest DALI interface IEC62386-101,IEC62386-102,IEC62286-207

3, Multi output current 350mA to 1050mA selectable via DIP switch,one driver is applicable for many luminaires,save purchasing cost and inventory qty for customer..

4, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.

5, No need additional synchrony wire, up to 15pcs drivers should be controlled by one dimmer.

6, Maximum length of the cable, from push button to last driver is 20m

7, Press-in terminals in primary and secondary side, easy assembly

8, Protection: Short circuit / Over voltage / Over temperature

9, 5 years guaranty



Mechanical Specification



Safety 50W Constant Voltage DALI Dimmable LED Driver 900mA 16 - 56V 0

Specification







INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.16A max

Power factor

≥0.90

Efficiency(Note1)

≥85%

Leakage current

＜0.5mA/240Vac







OUTPUT



Output current and load

350mA 16~60V DC 21W max   500mA 16~60V DC 30W max

550mA 16~60V DC 33W max   650mA 16~58V DC 38W max

700mA 16~58V DC 41W max   750mA 16~56V DC 43W max

850mA 16~56V DC 47W max   900mA 16~56V DC 50W max

1050mA 16~48V DC

Output load range

1x50W max

Current accuracy

±5%

Dimming mode

DALI, PUSH





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

85℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50000hours



PROTECTION



Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1 EN61347-2-13

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

DALI interface

IEC62386-101, IEC62386-102, IEC62386-207

Approvals

CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min



NOTE

1, Efficiency is measured at 550mA/55Vdc output set by DIP switch

2, All parameters not specially mentioned are measured at 230Vac input, rated load and 25℃of ambient temp.



Output current selection



Safety 50W Constant Voltage DALI Dimmable LED Driver 900mA 16 - 56V 1



Wire diagram



Safety 50W Constant Voltage DALI Dimmable LED Driver 900mA 16 - 56V 2
