Multi - Output Current DALI Dimmable LED Driver , Super Slim DALI LED Dimmer
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE /RoHS |
| Model Number | ML70C-PD |
| Minimum Order Quantity | Stop production, not available. |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or western Union |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | DALI Dimmable LED Driver | Output Load | 1*70W Max |
|---|---|---|---|
| Output Current | 350mA-700mA, Selectable Via DIP Switch | Output Voltage | 200Vmax. |
| Input Voltage | 220-240Vac | Dimming Mode | DALI, PUSH |
| Working Temperature | -25℃-50℃ | Isolation Class | Class II |
| Approvals | CE | Protection Class | IP20 |
| High Light | dali dimming led driver,dali rgb led driver,Super Slim DALI LED Dimmer |
||
Product Description

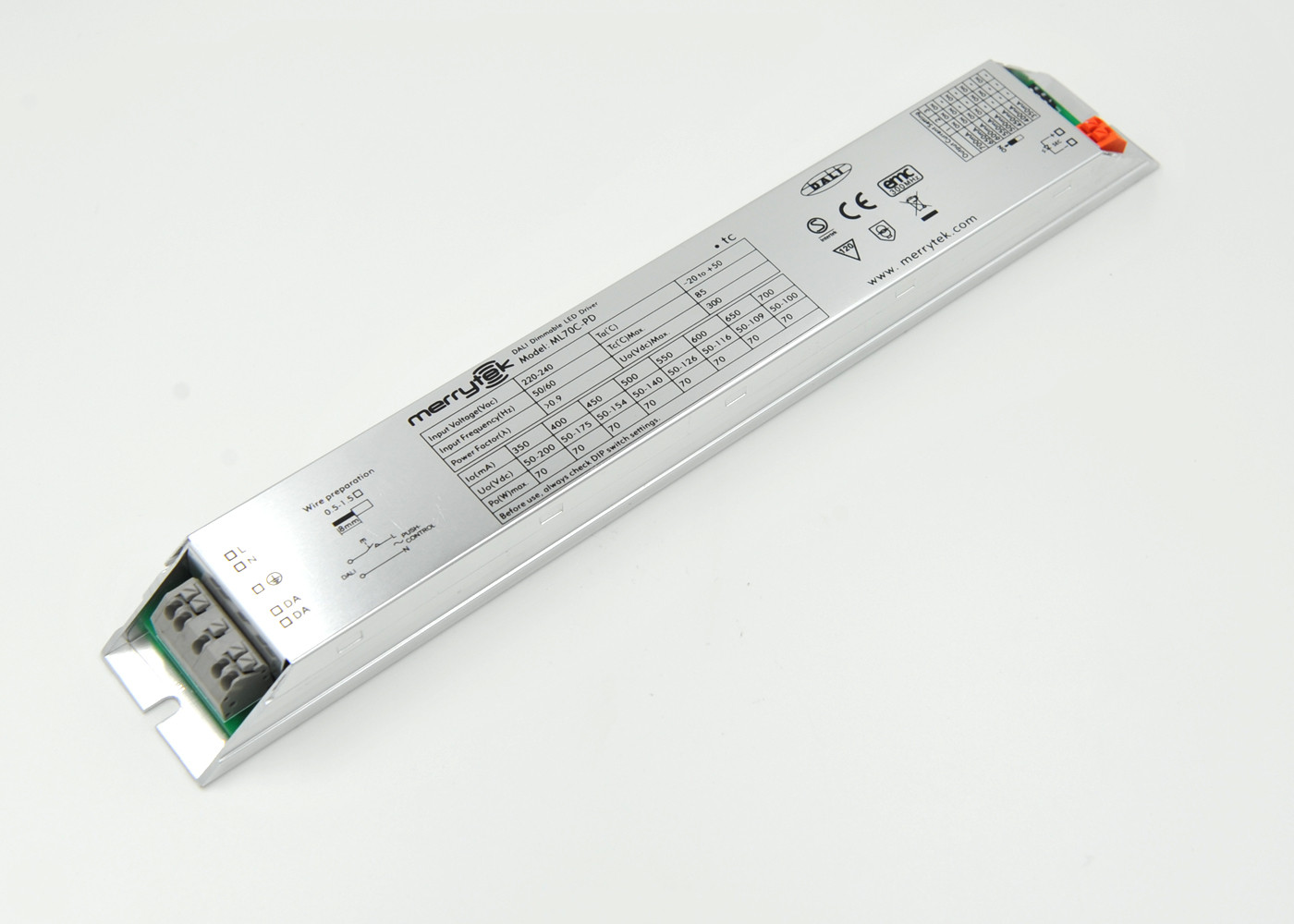

ML70C-PD 1 x 70w DALI & PUSH DIM led driver multi-output current slim design 280 x 40.5 x 22.8mm
Description
1, This driver is special for both DALI and push dimming function .
2. With Max 200vDC output ,for big load
3, Compatible with latest DALI interface IEC62386-101,IEC62386-102,IEC62286-207
4, Multi output current 350mA to 700mA selectable via DIP switch,one driver is applicable for many luminaires,save purchasing cost and inventory qty for customer.
5, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.
6, No need additional synchrony wire, up to 15pcs drivers should be controlled by one dimmer.
7, Maximum length of the cable, from push button to last driver is 20m

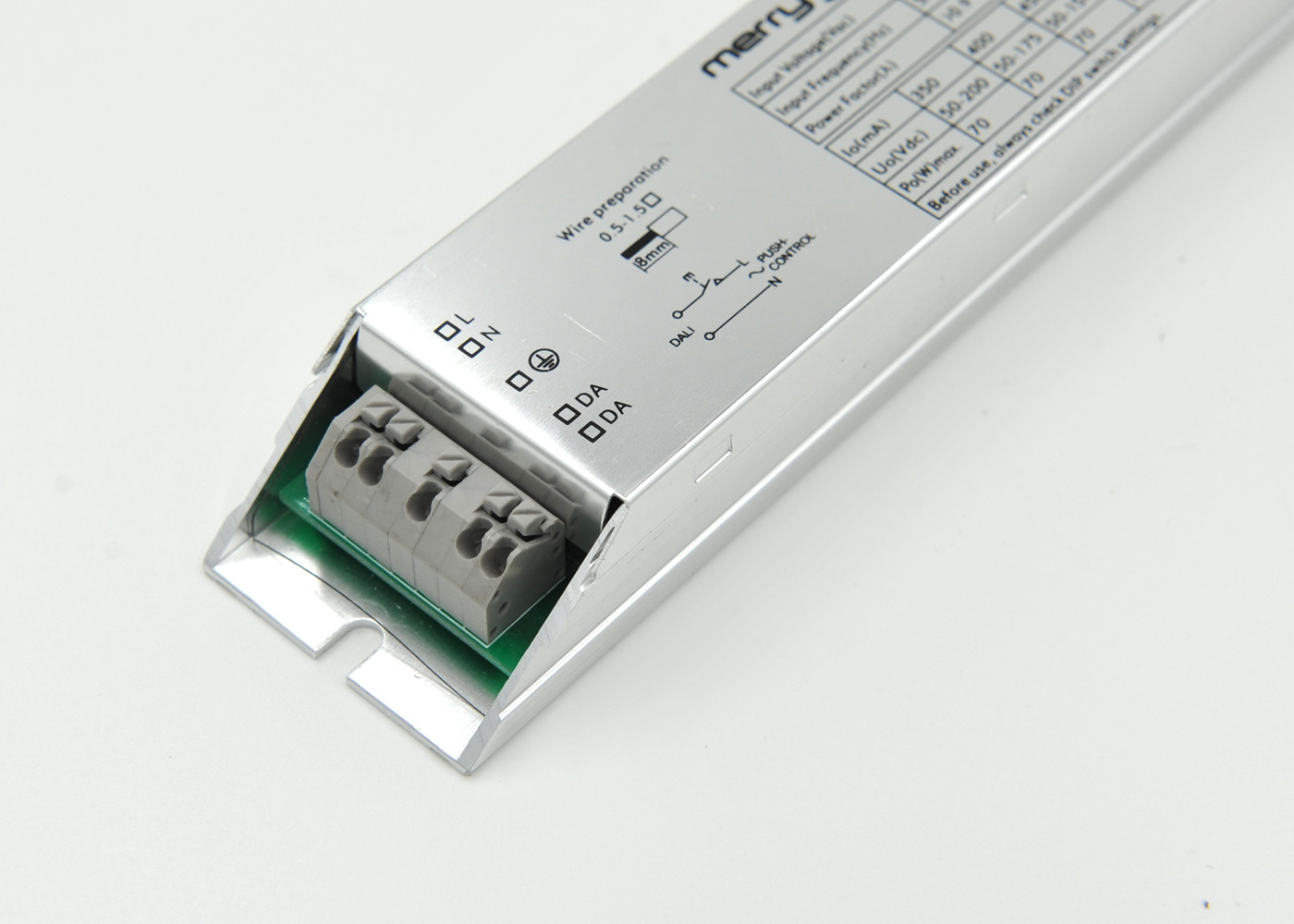

8, Press-in terminals in primary and secondary side, easy assembly
9, Protection: Short circuit / Over voltage / Over temperature
10, 5 years guaranty
Mechanical Specification:
Specifications
|
|
Input voltage |
220-240Vac |
|
Input frequency |
50-60Hz |
|
|
Input current |
0.17A max |
|
|
Power factor |
≥0.90 |
|
|
Efficiency(Note1) |
≥85% |
|
|
Leakage current |
＜0.5mA/240Vac |
|
|
|
Output current and load |
350mA 50-200VDC 400mA 50-175V DC |
|
Output load range |
1x70W max |
|
|
Current accuracy |
±5% |
|
|
Dimming mode |
DALI, PUSH |
|
|
|
Working temp.(Ta) |
-20~50℃ |
|
Surface temp.(Tc) |
75℃max |
|
|
Working humidity |
20~90%RH non-condensing |
|
|
Storage temp. |
-40~80℃ |
|
|
Life time |
≥50000hours |
|
|
|
Isolation class |
Class II, SELV |
|
Protection class |
IP20 |
|
|
Short circuit |
Protection type; auto rest |
|
|
Over voltage |
Protection type; auto rest |
|
|
Over temperature |
Protection type; auto rest |
|
|
|
Safety |
EN61347-1 EN61347-2-13 |
|
EMC |
EN55015, EN61000-3-2ClassC |
|
|
EN61000-3-3, EN61547 |
||
|
DALI interface |
IEC62386-101, IEC62386-102, IEC62386-207 |
|
|
Approvals |
CE |
|
|
Withstand voltage |
IN-OUT:3.75KVAC/5mA/1min |
|
|
|
1, Efficiency is measured at 550mA/55Vdc output set by DIP switch |
|

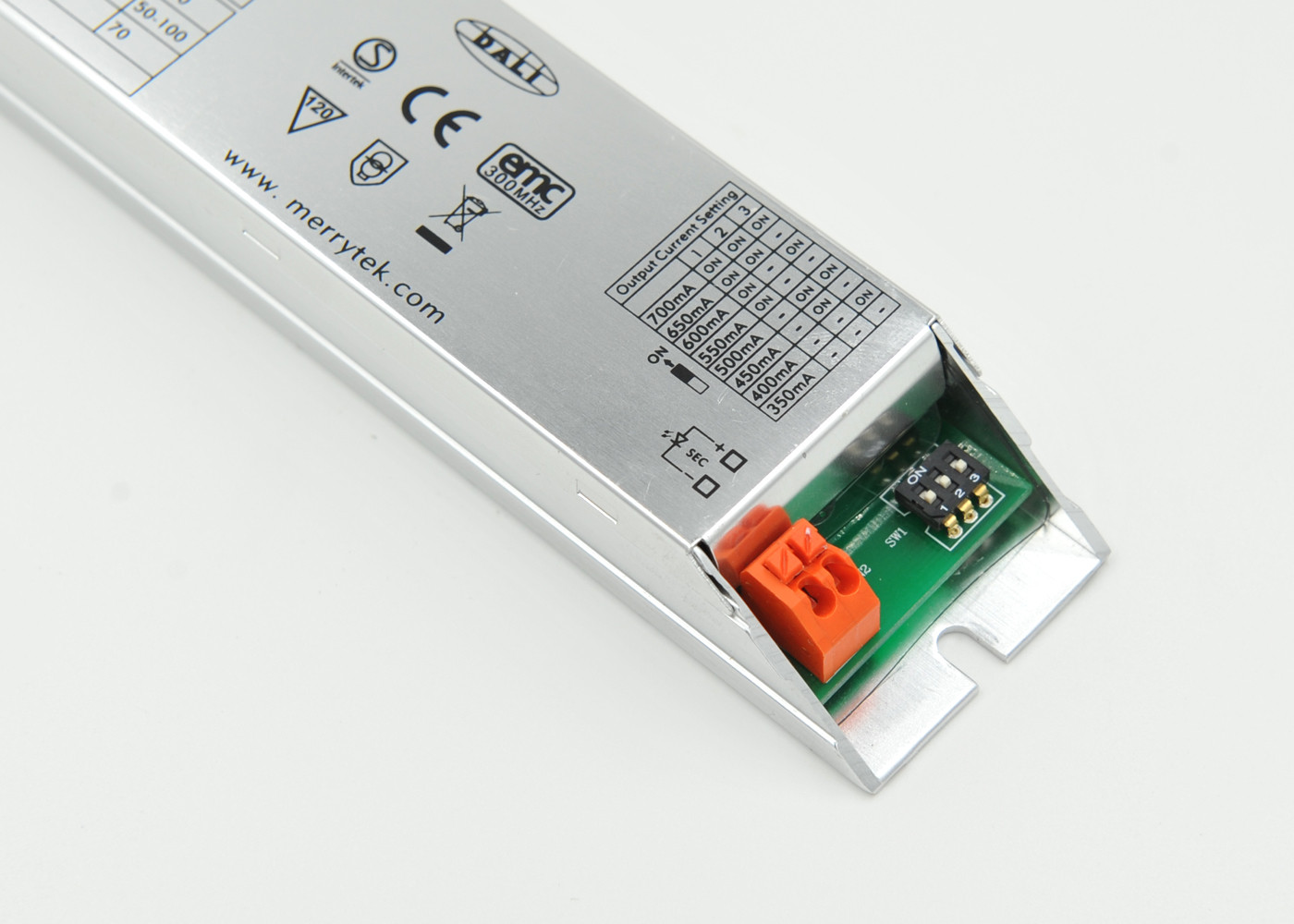

Output current selection
PUSH Dim
Short push (<0.1sec): Ignore, to avoid reaction on AC spike.
Short push (0.1~1sec): Switch on or off.
Long push (>1sec): Dimming up or down, dimming automatically stops at minimum or maximum value.
Wring Diagram:
