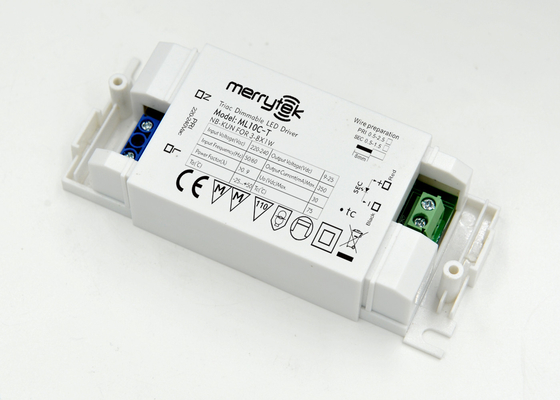

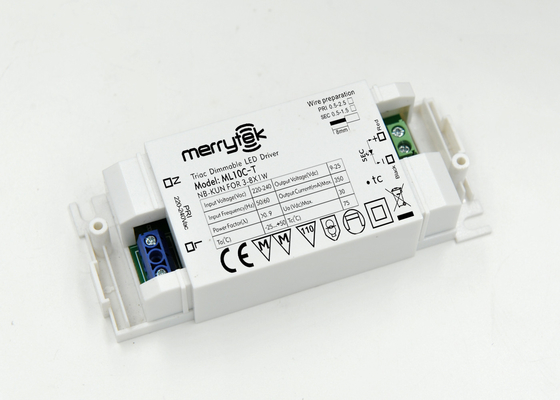

10w 320mA Constant Current Triac Dimmable LED Driver / Triac Lamp Dimmer

  • 10w 320mA Constant Current Triac Dimmable LED Driver / Triac Lamp Dimmer
  • 10w 320mA Constant Current Triac Dimmable LED Driver / Triac Lamp Dimmer
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML10C-T
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1x10w Constant Current Triac Dimmable Led Driver Input Voltage 220 - 240 Vac
Output Power 1*10W Max Output Current 320mA
Output Voltage 21-33Vdc Dimming Mode Leading & Trailing Edge
Dimming Range 10% - 100% Working Temperature -25℃-50℃
Isolation Class Class II, SELV Approvals CE
High Light

triac dimming led driver

,

triac lamp dimmer

,

Constant Current Triac Lamp Dimmer
Leave a Message
Product Description



ML10C-T  10w 320mA constant current Triac dimmable led driver



Description



1, Match leading & trailing edge dimmer,flicker-free design

2. Well match dimmers: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

3,  Output voltage 21-33Vdc,load 7-11pcs LEDs

4. Applied for ceiling lamp,down light,COB

5. Flickering free @ full laod

6, Protection: Short circuit / Over voltage / Over temperature.

7, Dimming range: 10%-100%

8, One dimmer can control a group of loads

9, Life time 50,000 hours



Mechanical Specification



Specifications



Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥80%(@ 240Vac input, full load and without dimmer)

No-load power

≤0.5W

Output

Output Voltage

21-33V DC

Output Current

320mA

accuracy

±5%

Rated power

10W Max.

Dimming

Dimming mode

Leading & Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

92 x 55 x 17mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 2-hole screw terminal(L, N)

Output: 2 screw terminal(LED +, LED -)

Life time

50,000h

Certification

CE


Application



For ceiling lamp,down light,COB



Wire diagram
