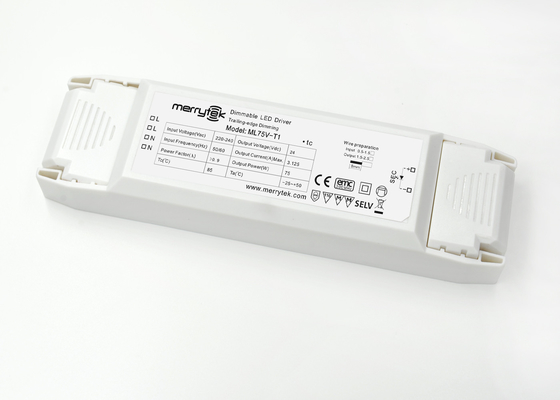

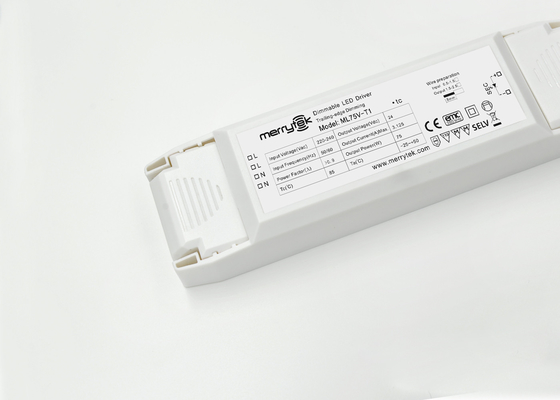

Constant Voltage Triac Dimmable LED Driver Isolation Class II , Triac Dimmer For LED Lighting

  • Constant Voltage Triac Dimmable LED Driver Isolation Class II , Triac Dimmer For LED Lighting
  • Constant Voltage Triac Dimmable LED Driver Isolation Class II , Triac Dimmer For LED Lighting
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML75V-T1
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Load 1*75W Max Product Name Trail Edge Dimming Triac Led Driver
Output Current 3.125A Max. Output Voltage 24Vdc
Input Voltage 220-240Vac Dimming Mode Traic
Working Temperature -25℃-50℃ Isolation Class Class II, SELV
Approvals CE Protection Class IP20
High Light

triac dimming led driver

,

triac lamp dimmer

,

Dimmable LED Driver Isolation Class II
Leave a Message
Product Description

Constant Voltage Triac Dimmable LED Driver Isolation Class II , SELV





Description:

1, Well compatible with trailing edge dimming



2. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

3. Serve for constant voltage 24Vdc luminaires.

4.Output voltage:12Vdc

5, Protection: Short circuit / Over voltage / Over temperature.

6, Dimming range: 10%-100%

7.Two L,Two N,easy for synchronization function



Specifications

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

24V DC

Output Current

3.125A max.

Voltage accuracy

±5%

Rated power

75W Max.

Dimming

Dimming mode

Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

220x58x40mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE
