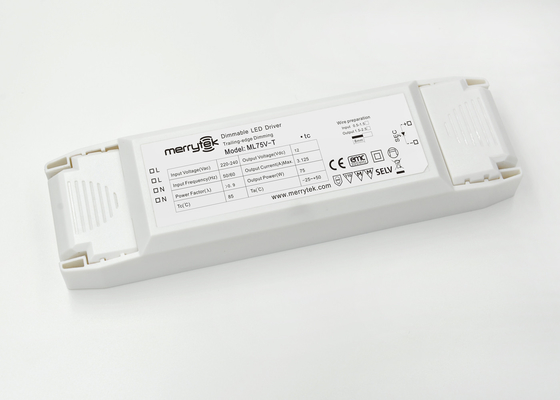

75 Watt Traic Dimmable LED Driver 12Vdc 50Hz / 60Hz IP20 Non Noise Triac Dimmer LED Driver

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML75V-T
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Traic Dimmable Led Driver Output Load 1*75W Max
Output Current 6.25A Max. Output Voltage 12Vdc
Input Voltage 220-240Vac Dimming Mode Traic
Working Temperature -25℃-50℃ Isolation Class Class II, SELV
Approvals CE Protection Class IP20
High Light

triac dimmer for led lighting

,

triac lamp dimmer

,

75 Watt Traic Dimmable LED Driver

Leave a Message
Product Description

75 Watt Traic Dimmable LED Driver 12Vdc 50Hz / 60Hz IP20 No Noise





Description:

1, trailing-edge dimming, compatible with popular dimmer in Euro.

2.This Triac dimmable led driver mainly works for led strip.

3, Protection: Short circuit / Over voltage / Over temperature.

4, Constant voltage 12Vdc

5, Dimming range: 10%-100%

6. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00



Specifications

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

12V DC

Output Current

6.25A max.

Voltage accuracy

±5%

Rated power

75W Max.

Dimming

Dimming mode

Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

220x58x40mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE



Mechanical Specification:





Wring Diagram:
