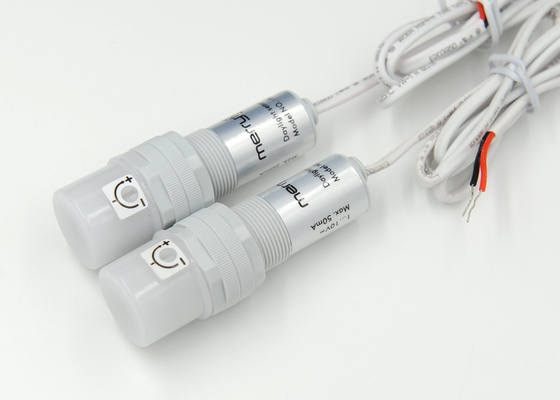

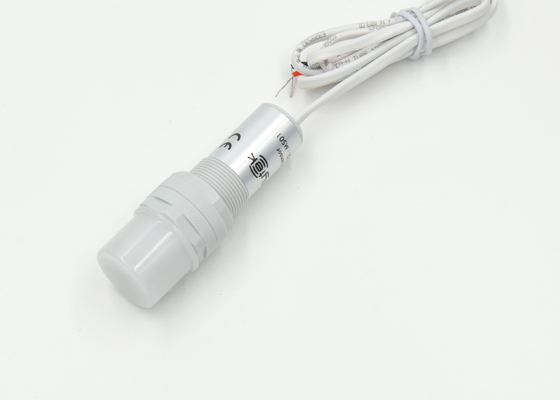

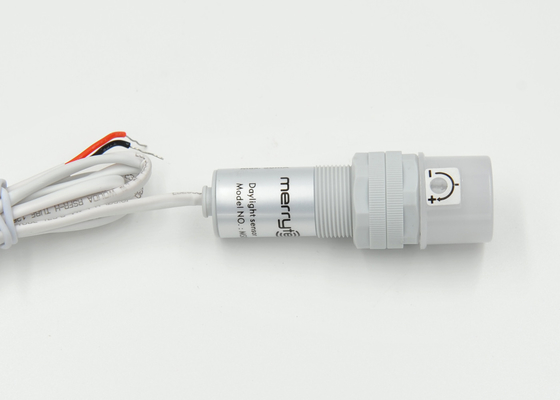

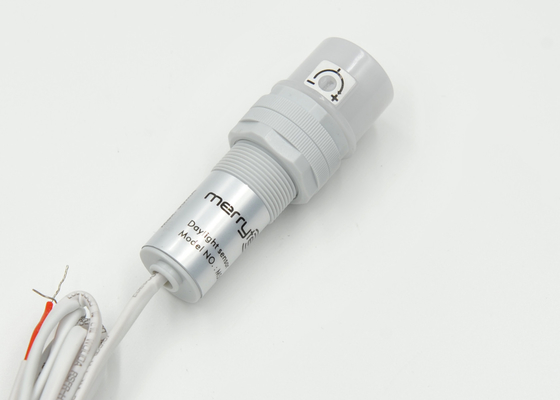

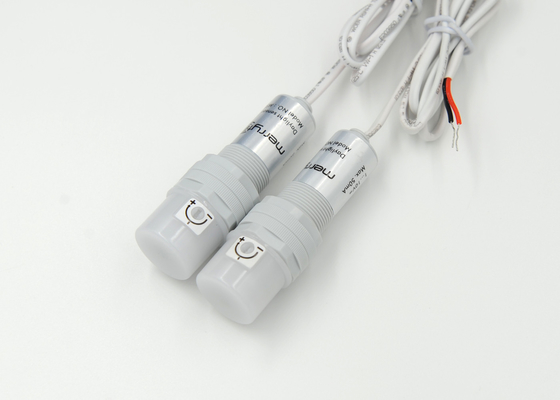

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

  • 1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control
  • 1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control
  • 1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control
  • 1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control
  • 1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control
Place of Origin China
Brand Name Merrytek
Certification CE ,EMC
Model Number MS01
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 1~10Vdc Product Name Daylight Sensor
Dimming Range 1％~100％ IP Rating IP20
Application Office ,workshop,warehouse Operation Temperature -0℃~45℃
Max. Current Sink 50mA(Maximum Rating)
High Light

outdoor daylight sensor

,

motion sensor detector

,

Photocell Daylight Harvesting Sensor
Leave a Message
Product Description







MS01 daylight harvesting sensor (photocell), could adjust the light output acoording to nature light, so that make the total light keep at certain level.



Description



1, Provides an energy saving without sacrificing visual comfort.

2, With ambient light dependent control.

3, Directly connected to 1-10V interface.

4, Simple setting of the target light level by mean of potentiometer.

5, MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V interface and using photocell

 to measure ambient lux level and automatically calculate how much artificial light is need, and then convert the amount of

light to 1-10V dimmable control gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output

according to the signal from the daylight sensor.

6, Dim down/up luminaires accroding to ambient brightness level.



Mechanical Specification



1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control 0



Daylight harvesting Function



1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control 1



1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control 2

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control 3

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control 4

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control 5

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control 6

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control 7





Specifications:

Operating voltage

1~10Vdc

Max. current sink

50mA(Maximum rating)

Dimming range

1％~100％

Cable length

80Cm

Color coding of cable

Red+, Black-

Detection angle

    90°

IP rating

 IP20

Operation Temperature

 -0℃~45℃



Settings



1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control 8



Applications

Office, workshop, warehouse, etc
