Energy Saving 50w Dimmable LED Driver 1-10V / Motion Sensor Detector Dimming

  • Energy Saving 50w Dimmable LED Driver 1-10V / Motion Sensor Detector Dimming
  • Energy Saving 50w Dimmable LED Driver 1-10V / Motion Sensor Detector Dimming
  • Energy Saving 50w Dimmable LED Driver 1-10V / Motion Sensor Detector Dimming
  • Energy Saving 50w Dimmable LED Driver 1-10V / Motion Sensor Detector Dimming
  • Energy Saving 50w Dimmable LED Driver 1-10V / Motion Sensor Detector Dimming
Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number ML50C2-PV + MS01
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Daylight Sensor+ 2x25w Dimmable Led Driver Application Office ,Workshop,Lobby,Classroom
Operating Voltage 1~10Vdc(MS01) 220-240Vac(ML50C2-PV) Dimming Range 1％~100％
IP Rating IP20 Cable Length 80Cm(MS01)
Operation Temperature -0℃~45℃(MS01) -20℃~ 50℃(ML50C2-PV Max. Current Sink 50mA(MS01) 700mA(ML50C2-PV)
High Light

outdoor daylight sensor

,

motion sensor detector

,

Energy Saving Dimmable Motion Sensor Detector
Leave a Message
Product Description

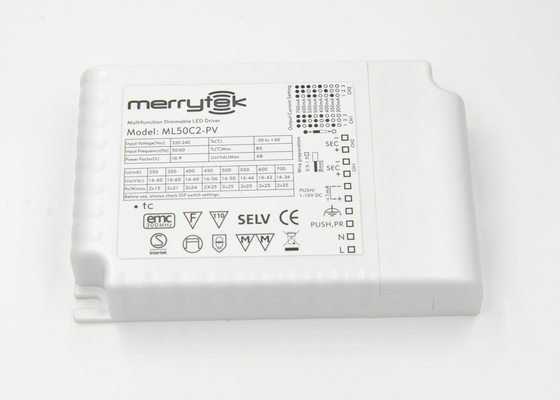

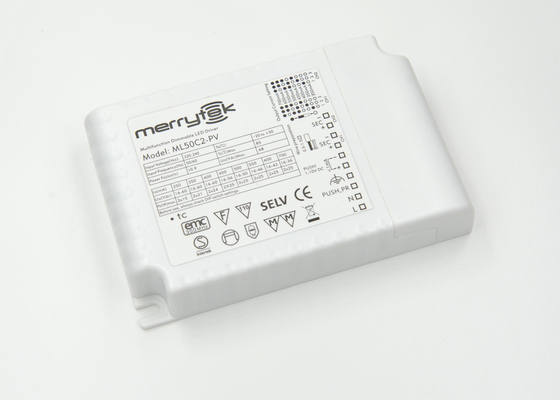

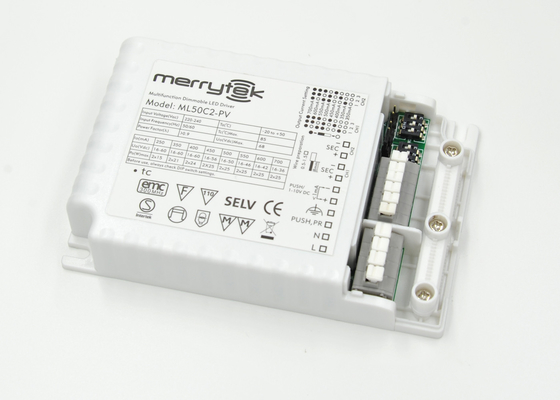

50w Dimmable LED Driver 1-10V / Motion Sensor Detector Dimming





Description

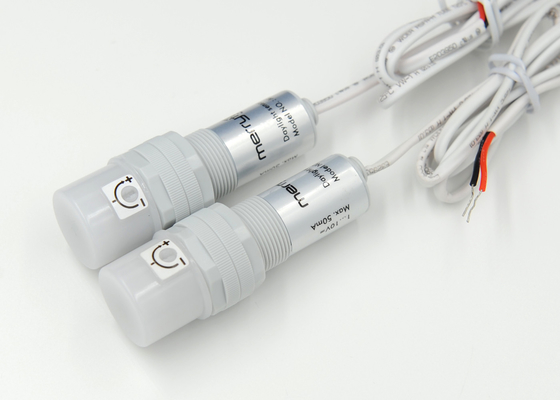

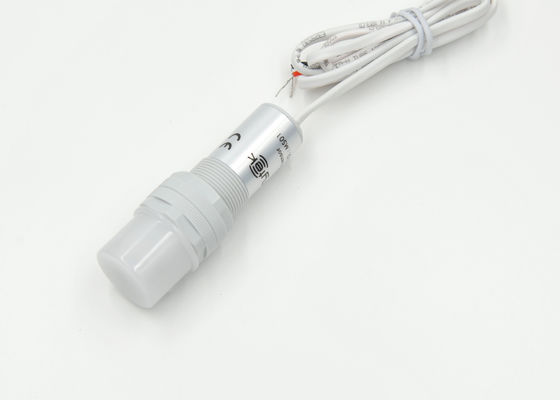

  •  MS01 work with Dimmable led driver ML50C2-PV to provides an energy saving without    sacrificing visual comfort
  •  Output current to load selectable from 250mA to 700mA
  •  With ambient light dependent control.
  •  Directly connected to 1-10V interface.
  •  Simple setting of the target light level by mean of potentiometer.
  •  MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V  interface and using photocell to measure ambient lux level and automatically calculate how  much artificial light is need, and then convert the amount of light to 1-10V dimmable control  gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output  according to the signal from the daylight sensor.



Function:



Daylight harvesting





Specifications:





Operating voltage

1 - 10Vdc(MS01)

220-240Vac(ML50C2-PV)

Max. current sink

50mA(MS01)

700mA(ML50C2-PV)

Dimming range

1％~100％

Output voltage

60Vdc max

Cable length

80Cm

Color coding of cable

Red+, Black-

Detection angle

        90°

IP rating

 IP20

Operation Temperature

 -0℃~45℃(MS01)

-20℃ ~ 50 ℃(ML50C2-PV)









Applications:



Office, Workshop, Warehouse, etc
